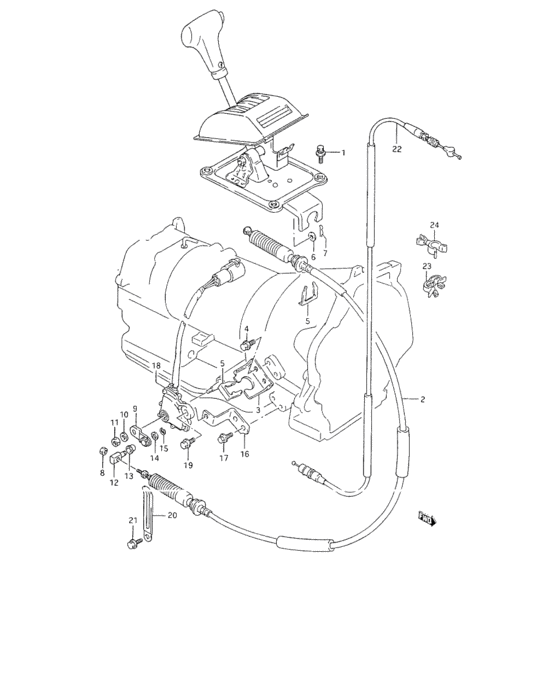

Gear shift control (AT:C) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- Caribbean
- drive
- 2WD
- transmission
- AT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
09118-08118-000 BOLT(8X20) |
09118-08118-000 |
US $12.50 |
||
|
2
|
2
28210-61A00-000 CABLE ASSY,SELECT |
28210-61A00-000 |
US $101.94 |
||
|
3
|
3
28221-61A00-000
BRACKET,SELECT CABLE
|
28221-61A00-000 |
— | ||
|
4
|
4
01550-08203-000
Bolt
|
01550-08203-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0820B-000 Bolt |
01550-0820B-000 |
from US $0.91 |
||
|
4
|
4
01550-0820A-000 BOLTBolt, funnel bracket |
01550-0820A-000 |
from US $0.96 |
||
|
5
|
5
09383-19001-000 E RINGClip |
09383-19001-000 |
from US $2.72 |
||
|
6
|
6
08322-21083-000 ワッシャ92 MODEL,93 MODEL |
08322-21083-000 |
US $0.54 |
||
| replacements | |||||
|
6
|
6
08322-0108A-000 WASHER92 MODEL,93 MODEL |
08322-0108A-000 |
from US $0.80 |
||
|
6
|
6
08322-0108B-000 WASHER92 MODEL,93 MODEL |
08322-0108B-000 |
from US $0.80 |
||
|
6
|
6
09160-08094-000 Washer 8x22x3Washer (8.2x20x1.6) 94 MODEL,95 MODEL |
09160-08094-000 |
US $1.47 |
||
| replacements | |||||
|
6
|
6
09160-08054-000 WASHER(8.5X20X1.6)94 MODEL,95 MODEL |
09160-08054-000 |
from US $0.91 |
||
|
6
|
6
09160-08124-000 WASHER(8.5X20X1.6)94 MODEL,95 MODEL |
09160-08124-000 |
from US $1.37 |
||
|
7
|
7
09385-08004-000 PIN,SNAP |
09385-08004-000 |
from US $1.28 |
||
|
8
|
8
08310-00063-000
Nut
|
08310-00063-000 |
— | ||
| replacements | |||||
|
8
|
8
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
8
|
8
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
|
9
|
9
28231-61A00-000 LEVER,MANUAL SLT |
28231-61A00-000 |
US $6.15 |
||
|
10
|
10
08321-01103-000
Washer
92 MODEL,93 MODEL |
08321-01103-000 |
— | ||
| replacements | |||||
|
10
|
10
08321-0110B-000 WASHER,LOCKWasher, knuckle end 92 MODEL,93 MODEL |
08321-0110B-000 |
from US $0.80 |
||
|
10
|
10
08321-0110A-000 WASHER,LOCK92 MODEL,93 MODEL |
08321-0110A-000 |
from US $0.80 |
||
|
10
|
10
09162-10008-000 WASHER,LOCKLock washer, rod end 94 MODEL,95 MODEL |
09162-10008-000 |
from US $1.28 |
||
|
11
|
11
08310-00103-000
Nut
|
08310-00103-000 |
— | ||
| replacements | |||||
|
11
|
11
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.80 |
||
|
11
|
11
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
|
12
|
12
28291-78233-000 JOINT,CABLE |
28291-78233-000 |
US $11.20 |
||
|
13
|
13
09305-08012-000 BUSH |
09305-08012-000 |
US $1.28 |
||
|
14
|
14
08322-01083-000
WASHER
|
08322-01083-000 |
— | ||
| replacements | |||||
|
14
|
14
08322-0108B-000 WASHER |
08322-0108B-000 |
from US $0.80 |
||
|
14
|
14
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.80 |
||
|
15
|
15
08332-11063-000
E ring
|
08332-11063-000 |
— | ||
| replacements | |||||
|
15
|
15
08332-1106B-000 E RINGCirclip |
08332-1106B-000 |
from US $0.86 |
||
|
15
|
15
08332-1106A-000 E RINGE ring, pinion |
08332-1106A-000 |
from US $0.91 |
||
|
16
|
16
28271-61A01-000
ブラケット,ポジションスイッチ
|
28271-61A01-000 |
— | ||
|
17
|
17
01550-08203-000
Bolt
|
01550-08203-000 |
— | ||
| replacements | |||||
|
17
|
17
01550-0820B-000 Bolt |
01550-0820B-000 |
from US $0.91 |
||
|
17
|
17
01550-0820A-000 BOLTBolt, funnel bracket |
01550-0820A-000 |
from US $0.96 |
||
|
18
|
18
37720-61A00-000 SWITCH ASSY,SHIFT |
37720-61A00-000 |
US $101.94 |
||
|
18
|
18
37720-60A00-000
SWITCH ASSY,SHIFT
92 MODEL:2WD |
37720-60A00-000 |
— | ||
|
19
|
19
01550-08203-000
Bolt
|
01550-08203-000 |
— | ||
| replacements | |||||
|
19
|
19
01550-0820B-000 Bolt |
01550-0820B-000 |
from US $0.91 |
||
|
19
|
19
01550-0820A-000 BOLTBolt, funnel bracket |
01550-0820A-000 |
from US $0.96 |
||
|
20
|
20
09404-08420-000 CLAMP(L:120 T:1.0) |
09404-08420-000 |
from US $2.08 |
||
|
21
|
21
01550-08123-000
Bolt
|
01550-08123-000 |
— | ||
| replacements | |||||
|
21
|
21
01550-0812B-000 BoltPlug, drain |
01550-0812B-000 |
from US $0.91 |
||
|
21
|
21
01550-0812A-000 BOLT |
01550-0812A-000 |
from US $0.91 |
||
|
22
|
22
28250-61A50-000
Cable assy, kick down
4 VALVE |
28250-61A50-000 |
— | ||
|
23
|
23
09408-00110-000 CLAMP4 VALVE |
09408-00110-000 |
US $26.50 |
||
|
24
|
24
09404-08420-000 CLAMP(L:120 T:1.0)4 VALVE |
09404-08420-000 |
from US $2.08 |
||
