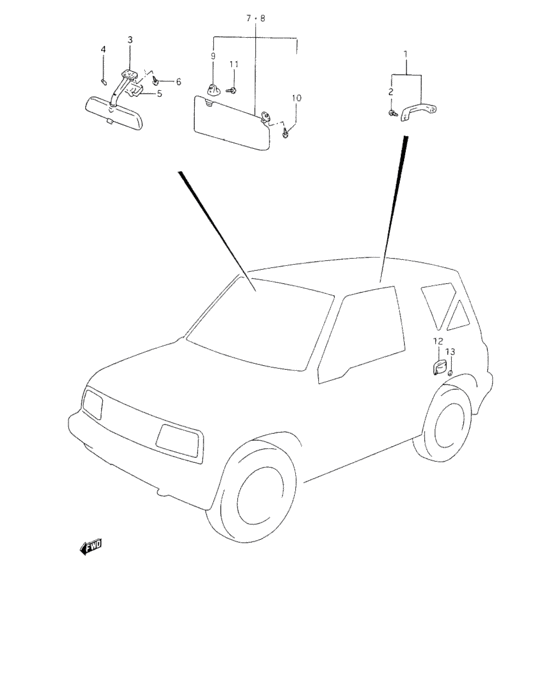

Sunshade (C) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- Caribbean
- drive
- 2WD
- transmission
- AT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
86200-66813-5ES
グリップセット,アシスタント(ブラック)
|
86200-66813-5ES |
— | ||
| replacement | |||||
|
1
|
1
86200-6681V-5ES GRIP SET,ASSISTANT |
86200-6681V-5ES |
US $11.20 |
||
|
2
|
2
09125-06041-000 SCREW(6X20) |
09125-06041-000 |
US $1.76 |
||
|
3
|
3
84703-62A01-5PK
MIRROR ASSY,INS RR VIEW
<-84703-62A00-5PK |
84703-62A01-5PK |
— | ||
|
4
|
4
84782-60A00-000 RUBBER |
84782-60A00-000 |
US $2.24 |
||
|
5
|
5
84781-60A00-5PK COVER,INSIDE MIRROR STAY |
84781-60A00-5PK |
US $2.74 |
||
|
6
|
6
02142-05123-000
Screw 5x12
|
02142-05123-000 |
— | ||
| replacement | |||||
|
6
|
6
02142-0512A-000 SCREWScrew, lower |
02142-0512A-000 |
from US $0.80 |
||
|
7
|
7
84800-60811-2WE
SUNSHADE SET, RH (GRAY)
<-84800-60810-2WE |
84800-60811-2WE |
— | ||
| replacement | |||||
|
7
|
7
84800-60812-2WE
SUNVISOR ASSY,R
<-84800-60810-2WE |
84800-60812-2WE |
— | ||
|
8
|
8
84800-60821-2WE
SUNSHADE SET, LH (GRAY)
92 MODEL,93 MODEL,94 MODEL,<-84800-60820-2WE |
84800-60821-2WE |
— | ||
| replacement | |||||
|
8
|
8
84800-60822-2WE
SUNSHADE SET, LH (GRAY)
92 MODEL,93 MODEL,94 MODEL,<-84800-60820-2WE |
84800-60822-2WE |
— | ||
|
8
|
8
84800-66810-2WE
Sunshade set, lh
95 MODEL |
84800-66810-2WE |
— | ||
| replacement | |||||
|
8
|
8
84800-66811-2WE
Sunvisor set,l
95 MODEL |
84800-66811-2WE |
— | ||
|
9
|
9
84851-60B00-5ES HOLDER,SUN VISOR<-84851-84000-5ES |
84851-60B00-5ES |
US $2.56 |
||
|
10
|
10
09127-05016-000
スクリュ,5X16
|
09127-05016-000 |
— | ||
| replacement | |||||
|
10
|
10
02122-0516B-000 SCREW |
02122-0516B-000 |
from US $0.80 |
||
|
11
|
11
03211-05123-000
Screw
|
03211-05123-000 |
— | ||
| replacement | |||||
|
11
|
11
03211-0512A-000 SCREW |
03211-0512A-000 |
US $0.80 |
||
|
12
|
12
86370-78000-281 ASHTRAY,RR92 MODEL,93 MODEL,<-86370-78000-5ES |
86370-78000-281 |
US $15.68 |
||
|
13
|
13
09148-05006-000 NUT92 MODEL,93 MODEL |
09148-05006-000 |
from US $1.56 |
||
