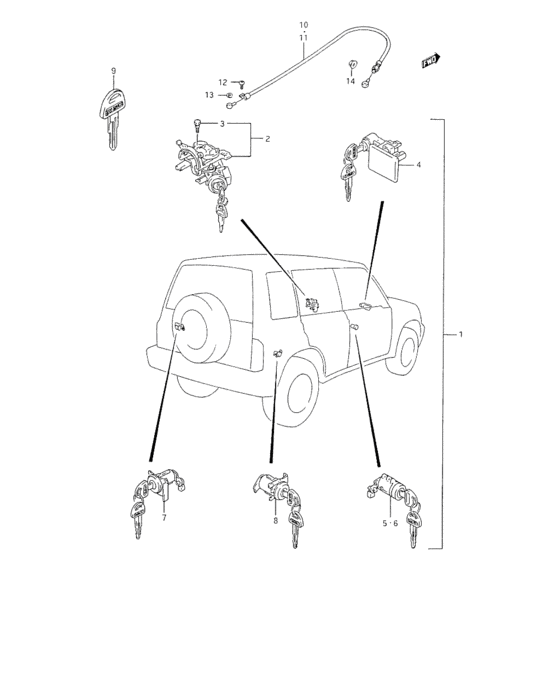

Lock set (LOCK SET) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- Caribbean
- drive
- 4WD
- transmission
- MT
- grade
- GLX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37101-60812-5ES
LOCK SET
MT |
37101-60812-5ES |
— | ||
|
1
|
1
37101-60822-5ES
LOCK SET
MT |
37101-60822-5ES |
— | ||
|
2
|
2
37100-60880-000 LOCK ASSY,STEERINGMT |
37100-60880-000 |
US $507.68 |
||
|
3
|
3
37152-84100-000
Bolt
|
37152-84100-000 |
— | ||
| replacement | |||||
|
3
|
3
37152-84G00-000 BOLT, STRG LOCK |
37152-84G00-000 |
from US $2.98 |
||
|
4
|
4
73420-60820-5ES LOCK ASSY,SIDE BOX |
73420-60820-5ES |
US $77.28 |
||
|
5
|
5
82200-60831-000 CYLINDER,FR DR LOCK,R |
82200-60831-000 |
US $51.15 |
||
|
6
|
6
82200-60841-000 CYLINDER,FR DR LOCK,L |
82200-60841-000 |
US $76.80 |
||
|
7
|
7
82500-60821-000 CYLINDER,RR GATE LOCK |
82500-60821-000 |
US $80.56 |
||
|
7
|
7
82500-60831-000 CYLINDER,BACK DR LOCK |
82500-60831-000 |
US $71.44 |
||
|
8
|
8
89300-60802-000 CYLINDER,FUEL LID LOCKCylinder, fuel lid lock JS, JX |
89300-60802-000 |
US $76.80 |
||
|
9
|
9
37145-60A00-000 KEY,BLANKOPT |
37145-60A00-000 |
from US $18.09 |
||
