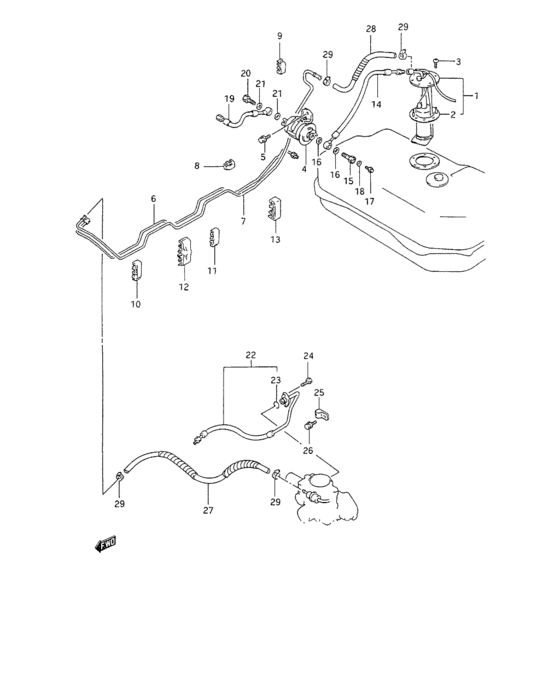

Fuel Pump (C:2 VALVE) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- Caribbean
- drive
- 2WD
- transmission
- MT
- grade
- JS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15100-61AA0-000
Pump assy, fuel
|
15100-61AA0-000 |
— | ||
| replacement | |||||
|
1
|
1
15100-61A1V-000 PUMP ASSY,FUEL |
15100-61A1V-000 |
US $1,616 |
||
|
2
|
2
15111-85550-000 GASKET,FUEL PUMP |
15111-85550-000 |
US $24.80 |
||
|
3
|
3
09136-05045-000 SCREW(5X10) |
09136-05045-000 |
US $0.96 |
||
|
4
|
4
15410-61A00-000 FILTER,FUEL |
15410-61A00-000 |
from US $33.71 |
||
|
5
|
5
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
5
|
5
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
5
|
5
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
6
|
6
15820-61A21-000
パイプ,フューエル
|
15820-61A21-000 |
— | ||
| replacement | |||||
|
6
|
6
15820-61A22-000 PIPE,FUEL FILTER OUTLET |
15820-61A22-000 |
US $73.97 |
||
|
7
|
7
15861-60A20-000 PIPE,FUEL RTN |
15861-60A20-000 |
US $58.14 |
||
|
8
|
8
15893-67B00-000 CLAMP,FUEL PIPE |
15893-67B00-000 |
US $1.76 |
||
|
9
|
9
15892-60A00-000
クランプ,フューエルパイプ
|
15892-60A00-000 |
— | ||
| replacement | |||||
|
9
|
9
15892-60A11-000 CLAMP,FUEL PIPE |
15892-60A11-000 |
US $1.60 |
||
|
10
|
10
15893-60A00-000
クランプ,フューエルパイプ
|
15893-60A00-000 |
— | ||
| replacement | |||||
|
10
|
10
15893-60A11-000 CLAMP,FUEL PIPE |
15893-60A11-000 |
US $2.24 |
||
|
11
|
11
15895-60A00-000
クランプ,フューエルパイプ
|
15895-60A00-000 |
— | ||
| replacement | |||||
|
11
|
11
15895-60A11-000 CLAMP,FUEL PIPE |
15895-60A11-000 |
US $2.56 |
||
|
12
|
12
15896-60A00-000
CLAMP,FUEL PIPE
|
15896-60A00-000 |
— | ||
|
13
|
13
15897-60A00-000
CLAMP,FUEL PIPE
|
15897-60A00-000 |
— | ||
|
14
|
14
15810-61A01-000 HOSE,FUEL FILTER INLET |
15810-61A01-000 |
US $224 |
||
|
15
|
15
13923-85551-000 BOLT,UNION FUEL FILTERBolt |
13923-85551-000 |
US $15.52 |
||
|
16
|
16
13925-85553-000 GASKET,UNION BOLTGasket |
13925-85553-000 |
from US $1.60 |
||
|
17
|
17
13924-85550-000
プラグ,ユニオンボルト
|
13924-85550-000 |
— | ||
| replacement | |||||
|
17
|
17
17568-50F00-000 UNION BOLT,AIR VENTBolt, thermostat cover |
17568-50F00-000 |
from US $2.08 |
||
|
18
|
18
09168-06023-000 GASKET(5.8X13X1.2)Gasket (5.8x13x1.2) |
09168-06023-000 |
from US $1.51 |
||
|
19
|
19
15840-61A01-000 HOSE,FUEL FILTER OUTLET |
15840-61A01-000 |
US $209.60 |
||
|
20
|
20
09360-12008-000 UNION |
09360-12008-000 |
from US $5.60 |
||
|
21
|
21
13925-85553-000 GASKET,UNION BOLTGasket |
13925-85553-000 |
from US $1.60 |
||
|
22
|
22
15830-61A00-000 HOSE,FUEL PIPE TO ENG |
15830-61A00-000 |
US $231.04 |
||
|
23
|
23
15710-09300-000 O-RING |
15710-09300-000 |
from US $1.60 |
||
|
24
|
24
01570-06163-000
Bolt
|
01570-06163-000 |
— | ||
| replacements | |||||
|
24
|
24
01570-0616B-000 Bolt |
01570-0616B-000 |
from US $0.80 |
||
|
24
|
24
01570-0616A-000 Bolt |
01570-0616A-000 |
from US $0.80 |
||
|
25
|
25
09403-08404-000
CLAMP
|
09403-08404-000 |
— | ||
| replacement | |||||
|
25
|
25
09403-08417-000 Clamp,rsvr Hose |
09403-08417-000 |
from US $3.91 |
||
|
26
|
26
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
26
|
26
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
26
|
26
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
27
|
27
15870-61A00-000 HOSE,RETURN ENGINE TO PIPE |
15870-61A00-000 |
US $38.40 |
||
|
28
|
28
15850-77X50-000
ホース,フューエルリターン
L:440->360 |
15850-77X50-000 |
— | ||
| replacement | |||||
|
28
|
28
09356-58127-600 HOSE(5.8X12.2X600)Hose (p/r to v/s) L:440->360 |
09356-58127-600 |
from US $15.84 |
||
|
29
|
29
09402-15501-000
Clamp
|
09402-15501-000 |
— | ||
| replacement | |||||
|
29
|
29
09402-17511-000 CLAMP |
09402-17511-000 |
US $52.60 |
||
