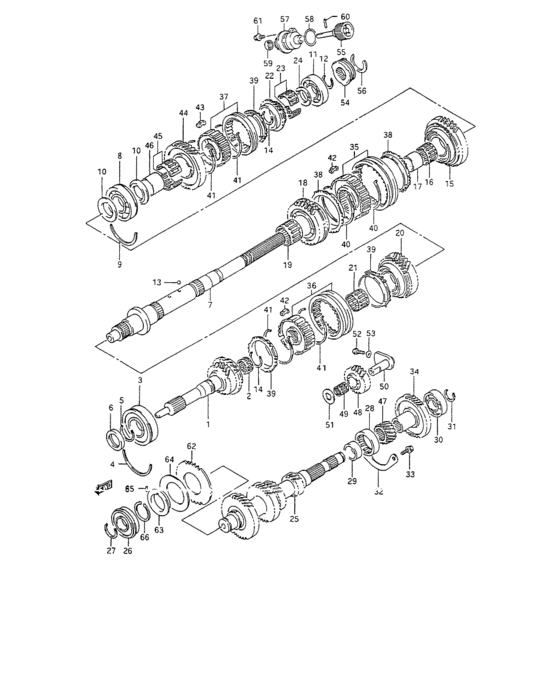

Transmission (MT:2WD) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- Caribbean
- drive
- 2WD
- transmission
- MT
- grade
- JS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24110-60A02-000 SHAFT,T/M INPUT |
24110-60A02-000 |
US $285.20 |
||
|
2
|
2
09263-20056-000 BEARING(20X26X17) |
09263-20056-000 |
from US $8.64 |
||
|
3
|
3
09262-28005-000 BEARING(28X68X18) |
09262-28005-000 |
from US $33.44 |
||
|
4
|
4
09390-68002-000 C RING |
09390-68002-000 |
from US $1.76 |
||
|
5
|
5
09380-28007-000 RING,SNAP |
09380-28007-000 |
from US $1.80 |
||
|
6
|
6
09283-25088-000 SEAL,OIL(25X38X6) |
09283-25088-000 |
from US $5.67 |
||
|
7
|
7
24121-60A50-000
Shaft, transmission main
|
24121-60A50-000 |
— | ||
| replacement | |||||
|
7
|
7
24121-60A51-000 SHAFT,T/M MAIN |
24121-60A51-000 |
US $303.60 |
||
|
8
|
8
09262-30079-000
BEARING(30X72X19)
|
09262-30079-000 |
— | ||
|
9
|
9
09390-72009-000
C RING
|
09390-72009-000 |
— | ||
|
10
|
10
24271-60A00-000 WASHER,T/M MAIN SFT BRG |
24271-60A00-000 |
US $19.20 |
||
|
11
|
11
09262-25073-000 BEARING(25X62X17)Bearing (25x62x17) |
09262-25073-000 |
from US $14.59 |
||
|
12
|
12
09380-25011-000 RING,SNAP |
09380-25011-000 |
from US $1.04 |
||
|
13
|
13
06111-06003-000 BALL |
06111-06003-000 |
from US $0.76 |
||
|
14
|
14
09380-28007-000 RING,SNAP |
09380-28007-000 |
from US $1.80 |
||
|
15
|
15
24211-83011-000
ギヤ,トランスミッションメインシャフト,ロー
NT:36 |
24211-83011-000 |
— | ||
| replacement | |||||
|
15
|
15
24211-83020-000 GEAR,MAIN SFT LOWNT:36 |
24211-83020-000 |
US $134.69 |
||
|
16
|
16
09263-35015-000 BEARING(35X40X26.8) |
09263-35015-000 |
from US $10.79 |
||
|
17
|
17
09300-30003-000 BUSH(30X35X27.1) |
09300-30003-000 |
from US $7.74 |
||
|
18
|
18
24220-60A01-000 GEAR,MAIN SFT 2NDNT:32 |
24220-60A01-000 |
US $176 |
||
|
19
|
19
09263-35015-000 BEARING(35X40X26.8) |
09263-35015-000 |
from US $10.79 |
||
|
20
|
20
24230-60A00-000
ギヤ,メインシャフト,サード
NT:29 |
24230-60A00-000 |
— | ||
| replacement | |||||
|
20
|
20
24230-65D00-000 GEAR,MAIN SFT 3RDNT:29 |
24230-65D00-000 |
US $157.87 |
||
|
21
|
21
09263-30031-000 BEARING(30X35X26.8) |
09263-30031-000 |
from US $8.16 |
||
|
22
|
22
24250-60A00-000
Gear comp,main shaft,5th
2 VALVE:2DR:NT:25,92 MODEL,93 MODEL,94 MODEL |
24250-60A00-000 |
— | ||
|
22
|
22
24250-77500-000
ギヤ,メインシャフト,フィフス
2 VALVE:2DR:NT:23,95 MODEL |
24250-77500-000 |
— | ||
| replacement | |||||
|
22
|
22
24250-77501-000 GEAR,MAIN SFT 5TH2 VALVE:2DR:NT:23,95 MODEL |
24250-77501-000 |
from US $77.27 |
||
|
23
|
23
24801-60810-000 BEARING SET |
24801-60810-000 |
from US $15.36 |
||
|
24
|
24
24255-60A00-000 WASHER,MAIN SFT 5TH GR |
24255-60A00-000 |
US $6.88 |
||
|
25
|
25
24131-60A02-000
シャフト,トランスミッションカウンタ
NT:15,25,32,35 |
24131-60A02-000 |
— | ||
| replacements | |||||
|
25
|
25
24131-60A05-000
SHAFT,T/M COUNTER
NT:15,25,32,35 |
24131-60A05-000 |
— | ||
|
25
|
25
24671-60A01-000
GEAR,CTSHFT REV
NT:15,25,32,35 |
24671-60A01-000 |
— | ||
|
26
|
26
09262-28018-000 BEARING(28X58X16) |
09262-28018-000 |
from US $49.34 |
||
|
27
|
27
09380-28007-000 RING,SNAP |
09380-28007-000 |
from US $1.80 |
||
|
28
|
28
09264-25005-000 BEARING(25X52X15) |
09264-25005-000 |
from US $59.81 |
||
|
29
|
29
09300-25028-000 BUSH(25X32X15) |
09300-25028-000 |
from US $15.41 |
||
|
30
|
30
09262-20073-000 BEARING(20X52X15)Bearing (20x52x15) |
09262-20073-000 |
from US $12.31 |
||
|
31
|
31
09380-20011-000 RING,SNAP |
09380-20011-000 |
US $1.52 |
||
|
32
|
32
24135-60A01-000 PLATE,T/M CTSHFT BRG |
24135-60A01-000 |
US $2.10 |
||
|
33
|
33
09103-06083-000
Bolt (6x12)
|
09103-06083-000 |
— | ||
| replacement | |||||
|
33
|
33
09103-06285-000 BOLT(6X12)Bolt (6x12) |
09103-06285-000 |
from US $1.28 |
||
|
34
|
34
24351-60A00-000
GEAR,CTSHFT 5TH
2 VALVE:2DR:NT:44,92 MODEL,93 MODEL,94 MODEL |
24351-60A00-000 |
— | ||
|
34
|
34
24351-60A10-000 GEAR, COUNTER SHAFT 5TH2 VALVE:2DR:NT:44,95 MODEL |
24351-60A10-000 |
US $166.40 |
||
|
35
|
35
24400-60A00-000 HUB ASSY,LOW SPEED SYNC |
24400-60A00-000 |
US $237.12 |
||
|
36
|
36
24410-60A00-000 HUB ASSY,HIGH SPEED SYNC |
24410-60A00-000 |
from US $136.82 |
||
|
37
|
37
24420-60A01-000 HUB ASSY,5TH&REV |
24420-60A01-000 |
from US $159.30 |
||
|
38
|
38
24431-83001-000 RING,LOW SPEED SYNC |
24431-83001-000 |
from US $48.06 |
||
|
39
|
39
24432-60A00-000 RING,SYNC HIGH SPEED |
24432-60A00-000 |
from US $51.53 |
||
|
40
|
40
09388-00017-000 SPRING |
09388-00017-000 |
from US $2.05 |
||
|
41
|
41
09388-00019-000 SPRING |
09388-00019-000 |
from US $1.98 |
||
|
42
|
42
24471-60A00-000 KEY,SYNC |
24471-60A00-000 |
US $1.73 |
||
|
43
|
43
24473-70D10-000 KEY,SYNC |
24473-70D10-000 |
US $1.92 |
||
|
44
|
44
24681-60A00-000 GEAR,MAIN SFT REVNT:41 |
24681-60A00-000 |
US $230 |
||
|
45
|
45
24801-60820-000 BEARING SET |
24801-60820-000 |
from US $17.42 |
||
|
46
|
46
09300-30003-000 BUSH(30X35X27.1) |
09300-30003-000 |
from US $7.74 |
||
|
47
|
47
24671-60A00-000
GEAR,CTSHFT REV
NT:17 |
24671-60A00-000 |
— | ||
|
48
|
48
24561-60A00-000
Gear,rev idle
92 MODEL |
24561-60A00-000 |
— | ||
|
48
|
48
24561-56B00-000
ギヤ,リバースアイドル
93 MODEL,->24561-85F00,USED WITH 24420-60A01,AND 09263-26030 |
24561-56B00-000 |
— | ||
| replacements | |||||
|
48
|
48
24561-85F40-000 GEAR,REV IDLE93 MODEL,->24561-85F00,USED WITH 24420-60A01,AND 09263-26030 |
24561-85F40-000 |
US $171.20 |
||
|
48
|
48
09263-26030-000 BEARING(26X31X25.8)93 MODEL,->24561-85F00,USED WITH 24420-60A01,AND 09263-26030 |
09263-26030-000 |
US $25.60 |
||
|
48
|
48
24420-60A01-000 HUB ASSY,5TH&REV93 MODEL,->24561-85F00,USED WITH 24420-60A01,AND 09263-26030 |
24420-60A01-000 |
from US $159.30 |
||
|
49
|
49
09263-16025-000 BEARING(16X22X23.8)92 MDOEL |
09263-16025-000 |
US $24 |
||
|
49
|
49
09263-26027-000
Bearing,26x34x25.5
93 MODEL |
09263-26027-000 |
— | ||
|
50
|
50
24551-60A00-000
シャフト,リバースギヤ
92 MODEL |
24551-60A00-000 |
— | ||
|
50
|
50
24551-56B00-000 SHAFT,T/M REVERSE GEAR93 MODEL |
24551-56B00-000 |
US $62.93 |
||
|
51
|
51
09166-16015-000
Washer
92 MODEL |
09166-16015-000 |
— | ||
|
51
|
51
09166-16020-000 WASHER93 MODEL |
09166-16020-000 |
US $37.20 |
||
|
52
|
52
24565-60B00-000 BOLT,REVERSE SHAFT |
24565-60B00-000 |
from US $1.49 |
||
|
53
|
53
09168-08015-000 GASKET(8.2X14X1.6) |
09168-08015-000 |
from US $1.28 |
||
|
54
|
54
26121-60A50-000 GEAR,SPDOM,DRIVENT:6 |
26121-60A50-000 |
US $13.14 |
||
|
55
|
55
26131-60A50-000 GEAR,SPDOM,DRIVENNT:23 |
26131-60A50-000 |
US $15.20 |
||
|
56
|
56
09380-25011-000 RING,SNAP |
09380-25011-000 |
from US $1.04 |
||
|
57
|
57
29430-60810-000 CASE SET,SPEEDOMETER GEAR |
29430-60810-000 |
US $57.01 |
||
|
58
|
58
09280-24009-000 O RING(D:3.6,ID:23.5)O ring |
09280-24009-000 |
from US $10.85 |
||
|
59
|
59
09282-07001-000
SEAL,OIL(7X16X5)
|
09282-07001-000 |
— | ||
|
60
|
60
09205-03022-000
Spring pin
|
09205-03022-000 |
— | ||
| replacement | |||||
|
60
|
60
09205-03028-000 PIN,SPRING(3X14)Pin, driveshaft spring |
09205-03028-000 |
US $12.50 |
||
|
61
|
61
01550-06163-000
Bolt
|
01550-06163-000 |
— | ||
| replacements | |||||
|
61
|
61
01550-0616B-000 BOLT |
01550-0616B-000 |
from US $0.76 |
||
|
61
|
61
01550-0616A-000 BOLT |
01550-0616A-000 |
from US $0.76 |
||
|
62
|
62
24137-60A10-000 GEAR,T/M FRICTION |
24137-60A10-000 |
US $33.60 |
||
|
63
|
63
24138-60A01-000 RETAINER,T/M FRICTION GEAR |
24138-60A01-000 |
US $56.80 |
||
|
64
|
64
24139-60A00-000 SPRING,T/M FRICTION GEAR |
24139-60A00-000 |
US $6.72 |
||
|
65
|
65
09261-02010-000 PIN(2X4.5) |
09261-02010-000 |
US $12.10 |
||
|
66
|
66
09380-34005-000 RING,SNAP |
09380-34005-000 |
US $43.40 |
||
