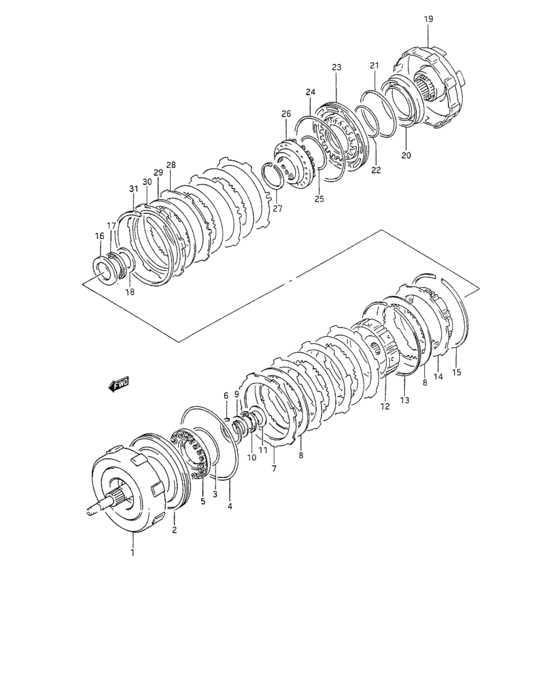

At clutch (AT:V) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- Caribbean
- drive
- 2WD
- transmission
- AT
- grade
- JS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
26651-57B00-000
Shaft, fwd clutch input
->26651-57B01,USED WITH 26692-57B01 |
26651-57B00-000 |
— | ||
| replacements | |||||
|
1
|
1
26601-57B11-000 CLUTCH ASSY,FWD MULTIPLE DISK->26651-57B01,USED WITH 26692-57B01 |
26601-57B11-000 |
US $1,458.56 |
||
|
1
|
1
26662-65DT0-000 BEARING SET,THRUST N0.8->26651-57B01,USED WITH 26692-57B01 |
26662-65DT0-000 |
from US $44.33 |
||
|
1
|
1
26692-57B01-000 RING,RETAINING BACK PLATE->26651-57B01,USED WITH 26692-57B01 |
26692-57B01-000 |
from US $11.54 |
||
|
1
|
1
26651-57B01-000
Shaft, fwd clutch input
M.NO.2F60546~ |
26651-57B01-000 |
— | ||
| replacements | |||||
|
1
|
1
26601-57B11-000 CLUTCH ASSY,FWD MULTIPLE DISKM.NO.2F60546~ |
26601-57B11-000 |
US $1,458.56 |
||
|
1
|
1
26662-65DT0-000 BEARING SET,THRUST N0.8M.NO.2F60546~ |
26662-65DT0-000 |
from US $44.33 |
||
|
2
|
2
26621-57B00-000
Piston, fwd clutch
|
26621-57B00-000 |
— | ||
|
3
|
3
29748-57B00-000
O ring, inner
|
29748-57B00-000 |
— | ||
| replacement | |||||
|
3
|
3
26622-57BT2-000
O-RING SET,CLUTCH
|
26622-57BT2-000 |
— | ||
|
4
|
4
29747-57B00-000
O ring, outer
|
29747-57B00-000 |
— | ||
|
5
|
5
26641-57B00-000
Spring, piston return
|
26641-57B00-000 |
— | ||
|
6
|
6
26691-57B00-000 RING,RETAINING RETURN SPRING |
26691-57B00-000 |
from US $7.94 |
||
|
7
|
7
26611-57B00-000
Plate, clutch
T:1.8 |
26611-57B00-000 |
— | ||
| replacement | |||||
|
7
|
7
26631-57BU0-000 PLATE SET,DIRECT CLUTCHT:1.8 |
26631-57BU0-000 |
US $397.76 |
||
|
7
|
7
26612-57B00-000
Plate, clutch
T:2.0 |
26612-57B00-000 |
— | ||
| replacement | |||||
|
7
|
7
26621-57BT0-000 PLATE SET,DIRECT CLUTCHT:2.0 |
26621-57BT0-000 |
US $375.36 |
||
|
8
|
8
24113-57B00-000
Disk, clutch
|
24113-57B00-000 |
— | ||
| replacement | |||||
|
8
|
8
26621-57BT0-000 PLATE SET,DIRECT CLUTCH |
26621-57BT0-000 |
US $375.36 |
||
|
9
|
9
24166-57B00-000
Race, thrust rear
|
24166-57B00-000 |
— | ||
| replacement | |||||
|
9
|
9
26661-57BT0-000 BEARING SET,THRUST NO.7 |
26661-57BT0-000 |
US $47.10 |
||
|
10
|
10
29696-57B00-000
Bearing, clutch thrust
|
29696-57B00-000 |
— | ||
| replacement | |||||
|
10
|
10
24964-57BT0-000 BEARING SET,THRUST NO.6 |
24964-57BT0-000 |
US $33.12 |
||
|
11
|
11
26661-57B00-000
Race, thrust bearing
|
26661-57B00-000 |
— | ||
|
12
|
12
26631-57B00-000
Hub, fwd clutch
|
26631-57B00-000 |
— | ||
|
13
|
13
24191-57B00-000 RING,RETAINING O/D CL |
24191-57B00-000 |
from US $8.96 |
||
|
14
|
14
26632-57B00-000
Hub, direct clutch input
|
26632-57B00-000 |
— | ||
|
15
|
15
26692-57B10-000 RING,DIRECT CLUTCH |
26692-57B10-000 |
US $14.06 |
||
|
15
|
15
26692-57B01-000 RING,RETAINING BACK PLATEM.NO.2F 60546~ |
26692-57B01-000 |
from US $11.54 |
||
|
16
|
16
24165-57B00-000
Race, fwd clutch rear
|
24165-57B00-000 |
— | ||
| replacements | |||||
|
16
|
16
26662-65DT0-000 BEARING SET,THRUST N0.8 |
26662-65DT0-000 |
from US $44.33 |
||
|
16
|
16
26662-57BT0-000 BEARING SET,THRUST NO.8 |
26662-57BT0-000 |
US $52.26 |
||
|
17
|
17
29699-57B00-000
Bearing, thrust rear
|
29699-57B00-000 |
— | ||
| replacement | |||||
|
17
|
17
24961-57BT0-000 BEARING SET,THRUST NO.3 |
24961-57BT0-000 |
US $52.26 |
||
|
18
|
18
26662-57B00-000
Race, thrust bearing
|
26662-57B00-000 |
— | ||
| replacement | |||||
|
18
|
18
26663-57BT0-000 BEARING SET,THRUST NO.9 |
26663-57BT0-000 |
US $39.01 |
||
|
19
|
19
26633-57B00-000
Cylinder, direct clutch
|
26633-57B00-000 |
— | ||
| replacement | |||||
|
19
|
19
26602-57B01-000
CLUTCH ASSY,DIRECT
|
26602-57B01-000 |
— | ||
|
20
|
20
26622-57B00-000
Piston, direct clutch inner
|
26622-57B00-000 |
— | ||
|
21
|
21
29744-57B00-000
O ring, inner
|
29744-57B00-000 |
— | ||
| replacement | |||||
|
21
|
21
26632-57BT1-000 O-RING SET,DIRECT CL |
26632-57BT1-000 |
from US $18.59 |
||
|
22
|
22
29748-57B00-000
O ring, inner
|
29748-57B00-000 |
— | ||
| replacement | |||||
|
22
|
22
26622-57BT2-000
O-RING SET,CLUTCH
|
26622-57BT2-000 |
— | ||
|
23
|
23
26623-57B00-000
Piston, direct clutch
|
26623-57B00-000 |
— | ||
|
24
|
24
29747-57B00-000
O ring, outer
|
29747-57B00-000 |
— | ||
|
25
|
25
29748-57B00-000
O ring, inner
|
29748-57B00-000 |
— | ||
| replacement | |||||
|
25
|
25
26622-57BT2-000
O-RING SET,CLUTCH
|
26622-57BT2-000 |
— | ||
|
26
|
26
26642-57B00-000
Spring, piston return
|
26642-57B00-000 |
— | ||
|
27
|
27
26691-57B00-000 RING,RETAINING RETURN SPRING |
26691-57B00-000 |
from US $7.94 |
||
|
28
|
28
26612-57B00-000
Plate, clutch
|
26612-57B00-000 |
— | ||
| replacement | |||||
|
28
|
28
26621-57BT0-000 PLATE SET,DIRECT CLUTCH |
26621-57BT0-000 |
US $375.36 |
||
|
29
|
29
24113-57B00-000
Disk, clutch
|
24113-57B00-000 |
— | ||
| replacement | |||||
|
29
|
29
26621-57BT0-000 PLATE SET,DIRECT CLUTCH |
26621-57BT0-000 |
US $375.36 |
||
|
30
|
30
26616-57B00-000
Plate, clutch backing
T:3.7~3.8 |
26616-57B00-000 |
— | ||
|
30
|
30
26617-57B00-000
Plate, clutch backing
T:3.5~3.6 |
26617-57B00-000 |
— | ||
|
30
|
30
24112-57B00-000
Plate, clutch backing
T:3.9~4.0 |
24112-57B00-000 |
— | ||
|
31
|
31
26692-57B10-000 RING,DIRECT CLUTCH |
26692-57B10-000 |
US $14.06 |
||
|
31
|
31
26692-57B01-000 RING,RETAINING BACK PLATEM.NO.2F 60546~ |
26692-57B01-000 |
from US $11.54 |
||
