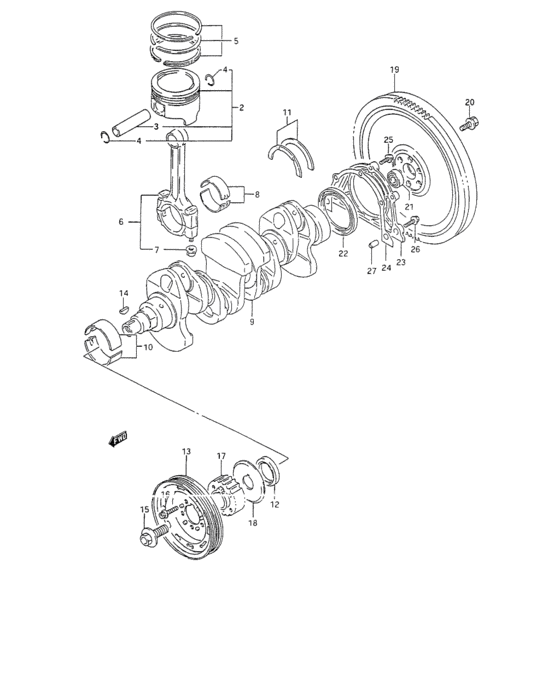

Crankshaft (CRANKSHAFT) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- Caribbean
- drive
- 2WD
- transmission
- AT
- grade
- JS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12111-60A02-0A0
PISTON,STD
2 VALVE |
12111-60A02-0A0 |
— | ||
|
1
|
1
12111-60A02-0B0
Piston std
2 VALVE |
12111-60A02-0B0 |
— | ||
|
1
|
1
12111-60A02-025
Piston
2 VALVE |
12111-60A02-025 |
— | ||
|
1
|
1
12111-60A02-050
PISTON,OS:0.50
2 VALVE |
12111-60A02-050 |
— | ||
|
2
|
2
12100-71820-0A0 PISTON SET,STD MARK 14 VALVE |
12100-71820-0A0 |
from US $70.11 |
||
|
2
|
2
12100-71820-0B0 PISTON SET,STD MARK 24 VALVE |
12100-71820-0B0 |
US $78.75 |
||
|
2
|
2
12100-71820-025
ピストンセット,OS:0.25
4 VALVE |
12100-71820-025 |
— | ||
|
2
|
2
12100-71820-050 PISTON SET,OS:0504 VALVE |
12100-71820-050 |
from US $68.96 |
||
|
3
|
3
12151-86501-000 PIN,PISTON |
12151-86501-000 |
from US $5.42 |
||
|
4
|
4
09381-19001-000 RING,SNAPSnap ring |
09381-19001-000 |
from US $0.90 |
||
|
5
|
5
12140-60A50-000 RING SET,PISTON |
12140-60A50-000 |
from US $59.13 |
||
|
5
|
5
12140-60A50-025
RING SET,PISTON OS:0.25
|
12140-60A50-025 |
— | ||
|
5
|
5
12140-60A50-050
RING SET,PISTON OS:0.50
|
12140-60A50-050 |
— | ||
|
6
|
6
12160-71C00-000
Connrod assy
|
12160-71C00-000 |
— | ||
| replacement | |||||
|
6
|
6
12160-71C20-000 CONNROD ASSY |
12160-71C20-000 |
from US $73.98 |
||
|
7
|
7
09159-08033-000 NUT |
09159-08033-000 |
from US $1.34 |
||
|
8
|
8
12100-60821-0A0
Bearing set, connrod
(STD, T:1.5) |
12100-60821-0A0 |
— | ||
| replacement | |||||
|
8
|
8
12100-60822-0A0 BEARING SET,CONNROD(STD, T:1.5) |
12100-60822-0A0 |
from US $14.47 |
||
|
8
|
8
12100-60821-025
Bearing set, connrod (us:0.25)
(US:0.25, T:1.625) |
12100-60821-025 |
— | ||
| replacement | |||||
|
8
|
8
12100-60822-025 BEARING SET,CONNROD US:025(US:0.25, T:1.625) |
12100-60822-025 |
from US $16.34 |
||
|
9
|
9
12221-71C00-000 CRANKSHAFT |
12221-71C00-000 |
from US $607.07 |
||
|
10
|
10
12340-60A10-0A0
BEARING SET (COLOR:GREEN)
(STD, T:2, GREEN) |
12340-60A10-0A0 |
— | ||
| replacements | |||||
|
10
|
10
12340-57K02-0C0 BEARING SET,CRANK GREEN(STD, T:2, GREEN) |
12340-57K02-0C0 |
from US $14.87 |
||
|
10
|
10
12340-58BA0-0A0
Bearing set, main (green)
(STD, T:2, GREEN) |
12340-58BA0-0A0 |
— | ||
|
10
|
10
12340-60A10-0B0
BEARING SET (COLOR:BLACK)
(STD, T:2, BLACK) |
12340-60A10-0B0 |
— | ||
| replacements | |||||
|
10
|
10
12340-57K02-0D0 BEARING SET,CRANK BLACK(STD, T:2, BLACK) |
12340-57K02-0D0 |
from US $16.49 |
||
|
10
|
10
12340-58BA0-0B0 Bearing set, main (black)(STD, T:2, BLACK) |
12340-58BA0-0B0 |
US $30.40 |
||
|
10
|
10
12340-60A10-0C0
BEARING SET (COLOR:NON)
(STD, T:2, NON) |
12340-60A10-0C0 |
— | ||
| replacements | |||||
|
10
|
10
12340-57K02-0E0 BEARING SET,CRANK NON(STD, T:2, NON) |
12340-57K02-0E0 |
from US $14.96 |
||
|
10
|
10
12340-58BA0-0C0 Bearing set, main (n/paint)(STD, T:2, NON) |
12340-58BA0-0C0 |
US $30.40 |
||
|
10
|
10
12340-60A10-0D0
BEARING SET (COLOR:YELLOW)
(STD, T:2, YELLOW) |
12340-60A10-0D0 |
— | ||
| replacement | |||||
|
10
|
10
12340-58B00-0D0 BEARING SET,CRANK YELLOW(STD, T:2, YELLOW) |
12340-58B00-0D0 |
from US $31.17 |
||
|
10
|
10
12340-60A10-0E0
BEARING SET (COLOR:BLUE)
(STD, T:2, BLUE) |
12340-60A10-0E0 |
— | ||
| replacement | |||||
|
10
|
10
12340-58B00-0E0 BEARING SET,CRANK BLUE(STD, T:2, BLUE) |
12340-58B00-0E0 |
US $32 |
||
|
10
|
10
12300-60810-0AA
BEARING SET (COLOR:RED/GREEN)
(US:0.25, T:2.125, RED/GREEN) |
12300-60810-0AA |
— | ||
| replacements | |||||
|
10
|
10
12300-57820-0CA BEARING SET,CRANK RED/GREEN(US:0.25, T:2.125, RED/GREEN) |
12300-57820-0CA |
from US $21.69 |
||
|
10
|
10
12300-58820-0AA
ベアリングセット,カラー:レッド/グリーン
(US:0.25, T:2.125, RED/GREEN) |
12300-58820-0AA |
— | ||
|
10
|
10
12300-60810-0BA
BEARING SET (COLOR:RED/BLACK)
(US:0.25, T:2.125, RED/BLACK) |
12300-60810-0BA |
— | ||
| replacements | |||||
|
10
|
10
12300-57820-0DA BEARING SET,CRANK RED/BLACK(US:0.25, T:2.125, RED/BLACK) |
12300-57820-0DA |
from US $19.26 |
||
|
10
|
10
12300-58820-0BA
Bearing set,crankshaft(us)
(US:0.25, T:2.125, RED/BLACK) |
12300-58820-0BA |
— | ||
|
10
|
10
12300-60810-00A
Bearing set, crankshaft
(US:0.25, T:2.125, RED/NON) |
12300-60810-00A |
— | ||
|
10
|
10
12300-60810-0DA
BEARING SET (COLOR:RED/YELLOW)
(US:0.25, T:2.125, RED/YELLOW) |
12300-60810-0DA |
— | ||
| replacement | |||||
|
10
|
10
12300-58810-0DA BEARING SET,CRANK RED/YELLOW(US:0.25, T:2.125, RED/YELLOW) |
12300-58810-0DA |
US $22.26 |
||
|
10
|
10
12300-60810-0EA
BEARING SET (COLOR:RED/BLUE)
(US:0.25, T:2.125, RED/BLUE) |
12300-60810-0EA |
— | ||
| replacement | |||||
|
10
|
10
12300-58810-0EA BEARING SET,CRANK RED/BLUE(US:0.25, T:2.125, RED/BLUE) |
12300-58810-0EA |
US $22.26 |
||
|
11
|
11
12300-60820-000
Metal set,crank
(STD, T:2.5) |
12300-60820-000 |
— | ||
| replacement | |||||
|
11
|
11
12300-78890-000 BEARING SET,CRANK THRUST(STD, T:2.5) |
12300-78890-000 |
from US $13.07 |
||
|
11
|
11
12300-60820-012
ベアリングセット,クランクスラスト
(OS:0.125, T:2.563) |
12300-60820-012 |
— | ||
| replacement | |||||
|
11
|
11
12300-78890-012 BEARING SET,CRANK THRUST US(OS:0.125, T:2.563) |
12300-78890-012 |
from US $12.96 |
||
|
12
|
12
09283-32038-000
オイルシール,32X47X6
|
09283-32038-000 |
— | ||
| replacement | |||||
|
12
|
12
09283-32042-000 SEAL,OIL(32X47X6) |
09283-32042-000 |
from US $8.03 |
||
|
13
|
13
12610-71C11-000
プーリ,クランクシャフト
|
12610-71C11-000 |
— | ||
| replacement | |||||
|
13
|
13
12610-61G00-000 PULLEY,CRANKSHAFT |
12610-61G00-000 |
from US $409.60 |
||
|
14
|
14
08341-31059-000 KEYKey |
08341-31059-000 |
from US $1.49 |
||
|
15
|
15
12619-60B00-000 BOLT,CRANK PULLEY2 VALVE |
12619-60B00-000 |
US $7.36 |
||
|
15
|
15
12619-53B01-000 BOLT,CRANK PULLEY4 VALVE |
12619-53B01-000 |
from US $7.47 |
||
|
16
|
16
09103-06185-000 BOLT(6X20)Bolt (6x20) |
09103-06185-000 |
from US $1.10 |
||
|
17
|
17
12631-86500-000
プーリ,クランクタイミングベルト
2 VALVE |
12631-86500-000 |
— | ||
| replacement | |||||
|
17
|
17
12631-86510-000 PULLEY,CRANK TIMING BELT2 VALVE |
12631-86510-000 |
US $118.40 |
||
|
17
|
17
12631-53B00-000 PULLEY,CRANK TIMING BELT4 VALVE |
12631-53B00-000 |
from US $40.21 |
||
|
18
|
18
12635-78401-000 GUIDE,TIMING BELT |
12635-78401-000 |
from US $3.65 |
||
|
22
|
22
09283-68002-000 SEAL,OIL(68X86X8) |
09283-68002-000 |
from US $22.68 |
||
|
23
|
23
11341-82000-000
Housing, oil seal
|
11341-82000-000 |
— | ||
| replacement | |||||
|
23
|
23
11341-82001-000
HOUSING,OIL SEAL
|
11341-82001-000 |
— | ||
|
24
|
24
11349-60A10-000
ガスケット,オイルシールハウジング
|
11349-60A10-000 |
— | ||
| replacement | |||||
|
24
|
24
11349-60A01-000 GASKET,OIL SEAL HSGGasket, oil seal housing |
11349-60A01-000 |
from US $6.05 |
||
|
25
|
25
01550-06203-000
Bolt
|
01550-06203-000 |
— | ||
| replacement | |||||
|
25
|
25
01550-0620B-000 BOLTBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
|
26
|
26
01550-06253-000
Bolt (6x25)
|
01550-06253-000 |
— | ||
| replacements | |||||
|
26
|
26
01550-0625B-000 BOLTBolt, head cover |
01550-0625B-000 |
from US $0.91 |
||
|
26
|
26
01550-0625A-000 BOLTBolt |
01550-0625A-000 |
from US $0.96 |
||
|
27
|
27
04211-09109-000 PINKnock pin |
04211-09109-000 |
from US $0.96 |
||
