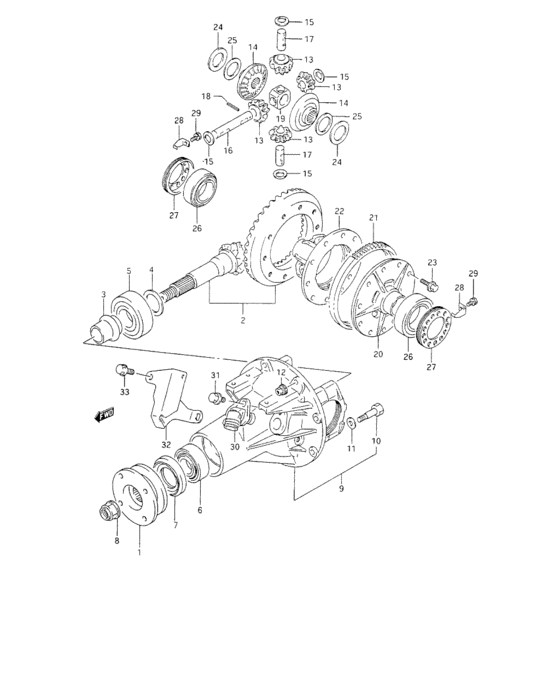

Rear differential gear (REAR DIFFERENTIAL GEAR) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- Caribbean
- drive
- 2WD
- transmission
- AT
- grade
- JS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27110-56B01-000 FLANGE,UNIVERSAL JOINT |
27110-56B01-000 |
US $131.20 |
||
|
2
|
2
27300-60861-000
Bevel pinion & gear set, rear
92 MODEL:AT |
27300-60861-000 |
— | ||
|
2
|
2
27300-61831-000
BEVEL PINION&GEAR SET
93 MODEL:AT |
27300-61831-000 |
— | ||
|
2
|
2
27300-56871-000
Bevel pinion & gear set
94 MODEL,95 MODEL:AT:4 VALVE |
27300-56871-000 |
— | ||
|
2
|
2
27300-60841-000
ベベルピニオン/ギヤセット
92 MODEL |
27300-60841-000 |
— | ||
| replacement | |||||
|
2
|
2
27300-60845-000
Bevel pinion & gear set
92 MODEL |
27300-60845-000 |
— | ||
|
2
|
2
27300-61821-000
ベベルピニオン/ギヤセット
93 MODEL,94 MODEL,95 MODEL |
27300-61821-000 |
— | ||
| replacement | |||||
|
2
|
2
27300-61842-000
BEVEL PINION&GEAR SET
93 MODEL,94 MODEL,95 MODEL |
27300-61842-000 |
— | ||
|
3
|
3
27315-60A01-000 SPACER,DRIVE BEVEL PINION |
27315-60A01-000 |
US $28 |
||
|
4
|
4
09181-35023-000 SHIM(35X42X0.3) |
09181-35023-000 |
US $2.24 |
||
| replacement | |||||
|
4
|
4
09181-35101-000 SHIM(35X42X0.5)Shim (t:0.5) |
09181-35101-000 |
from US $1.35 |
||
|
4
|
4
09181-35012-000 SHIM(35X42X1) |
09181-35012-000 |
US $25 |
||
|
4
|
4
09181-35014-000
Shim 35x42x1.06
|
09181-35014-000 |
— | ||
|
4
|
4
09181-35016-000
シム,T:1.12
|
09181-35016-000 |
— | ||
| replacement | |||||
|
4
|
4
09181-35117-000 SHIM(35X42X1.12) |
09181-35117-000 |
US $21.70 |
||
|
4
|
4
09181-35018-000
シム,T:1.18
|
09181-35018-000 |
— | ||
| replacement | |||||
|
4
|
4
09181-35119-000 SHIM(35X42X1.18) |
09181-35119-000 |
from US $1.82 |
||
|
4
|
4
09181-35020-000
シム,T:1.24
|
09181-35020-000 |
— | ||
| replacement | |||||
|
4
|
4
09181-35122-000 SHIM(35X42X1.24) |
09181-35122-000 |
US $21.70 |
||
|
4
|
4
09181-35022-000
シム,T:1.30
|
09181-35022-000 |
— | ||
| replacement | |||||
|
4
|
4
09181-35125-000 SHIM(35X42X1.3) |
09181-35125-000 |
US $21.70 |
||
|
5
|
5
09265-35002-000
ベアリング,35X80X22.75
|
09265-35002-000 |
— | ||
| replacement | |||||
|
5
|
5
09265-35011-000 BEARING(35X80X22.75) |
09265-35011-000 |
US $40 |
||
|
6
|
6
09265-30012-000
Rt 30x72x21 brg
|
09265-30012-000 |
— | ||
| replacement | |||||
|
6
|
6
09265-30018-000 BEARING(30X72X20.75) |
09265-30018-000 |
from US $38.40 |
||
|
7
|
7
09283-40022-000 SEAL,OIL(40X72X18.5) |
09283-40022-000 |
US $12.16 |
||
| replacement | |||||
|
7
|
7
09283-40027-000 SEAL,OIL(40x72x11x18) |
09283-40027-000 |
from US $7.25 |
||
|
8
|
8
27375-60A00-000 NUT,UNIVERSAL JOINT |
27375-60A00-000 |
from US $5.11 |
||
|
9
|
9
27450-60821-000
キャリアセット,ディファレンシャル
|
27450-60821-000 |
— | ||
|
10
|
10
09111-12009-000
ボルト,12X61
|
09111-12009-000 |
— | ||
| replacement | |||||
|
10
|
10
09111-12010-000 BOLT(12X58) |
09111-12010-000 |
US $2.43 |
||
|
11
|
11
08321-01123-000
Washer
|
08321-01123-000 |
— | ||
| replacement | |||||
|
11
|
11
08321-0112A-000 WASHER,LOCK |
08321-0112A-000 |
from US $0.76 |
||
|
12
|
12
09159-10091-000 NUT |
09159-10091-000 |
US $2.88 |
||
|
13
|
13
27331-60A10-000
ピニオン,ディファレンシャル
|
27331-60A10-000 |
— | ||
| replacements | |||||
|
13
|
13
27331-76A20-000
PINION,DIFFERENTIAL
|
27331-76A20-000 |
— | ||
|
13
|
13
27331-83020-000 PINION,DIFFERENTIAL |
27331-83020-000 |
from US $31.39 |
||
|
13
|
13
27331-76A21-000 Pinion,differential |
27331-76A21-000 |
from US $43.75 |
||
|
14
|
14
27341-60A10-000
GEAR,DIFF
|
27341-60A10-000 |
— | ||
|
15
|
15
09164-15006-000 WASHER |
09164-15006-000 |
from US $1.58 |
||
|
16
|
16
27351-64B20-000 SHAFT,DIFF SIDE PINION<-27351-64B01 |
27351-64B20-000 |
US $20.80 |
||
|
17
|
17
27355-60A01-000
シャフト,ディファレンシャルピニオン,NO.2
|
27355-60A01-000 |
— | ||
| replacement | |||||
|
17
|
17
27355-77E00-000 SHAFT,DIFF PINION NO.2 |
27355-77E00-000 |
US $21.34 |
||
|
18
|
18
09205-05007-000 PIN,SPRING(5X36) |
09205-05007-000 |
US $1.76 |
||
|
19
|
19
27356-86081-000 JOINT,DIFF PINION SHAFT |
27356-86081-000 |
from US $25.29 |
||
|
20
|
20
27411-60A20-000
CASE,DIFF,L
92 MODEL |
27411-60A20-000 |
— | ||
|
20
|
20
27411-60A21-000
ケース,ディファレンシャル,レフト
93 MODEL,94 MODEL,95 MODEL,->27411-60A22,USED WITH 27421-60A13 |
27411-60A21-000 |
— | ||
| replacements | |||||
|
20
|
20
27411-60A22-000 CASE,DIFF,L93 MODEL,94 MODEL,95 MODEL,->27411-60A22,USED WITH 27421-60A13 |
27411-60A22-000 |
US $114.45 |
||
|
20
|
20
27421-60A13-000 CASE,DIFF,R93 MODEL,94 MODEL,95 MODEL,->27411-60A22,USED WITH 27421-60A13 |
27421-60A13-000 |
US $195.04 |
||
|
20
|
20
27411-60A22-000 CASE,DIFF,L2S3TC01C S6407326~,2S3TA02C S6407225~,2S3TC02C S6407432~,JS3TUnited KingdomV S4100730~,JS3TD03V S4107318~,2S3TUnited KingdomV S6407281~,2S3TD03V S6407202~ |
27411-60A22-000 |
US $114.45 |
||
|
21
|
21
27425-60A02-000
Ring,rwal exciter
|
27425-60A02-000 |
— | ||
|
22
|
22
27421-60A11-000
CASE,DIFF,R
92 MODEL |
27421-60A11-000 |
— | ||
|
22
|
22
27421-60A13-000 CASE,DIFF,R93 MODEL,94 MODEL,95 MODEL |
27421-60A13-000 |
US $195.04 |
||
|
23
|
23
27415-56B00-000
ボルト,ドライブベベルギヤ
92 MODEL |
27415-56B00-000 |
— | ||
| replacements | |||||
|
23
|
23
09103-10253-000
Bolt,10x28
92 MODEL |
09103-10253-000 |
— | ||
|
23
|
23
09103-10184-000 BOLT(10X25)92 MODEL |
09103-10184-000 |
US $30.20 |
||
|
23
|
23
09103-10184-000 BOLT(10X25)93 MODEL,94 MODEL,95 MODEL |
09103-10184-000 |
US $30.20 |
||
|
24
|
24
09160-35015-000 WASHER(35X46X0.6) |
09160-35015-000 |
from US $3.13 |
||
|
24
|
24
09160-35014-000 WASHER(35X46X0.7) |
09160-35014-000 |
from US $2.74 |
||
|
24
|
24
09160-35013-000 WASHER(35X46X0.8) |
09160-35013-000 |
from US $2.74 |
||
|
25
|
25
09164-35003-000 WASHER |
09164-35003-000 |
from US $3.74 |
||
|
26
|
26
09265-45002-000 BEARING(45.2X80X19.84) |
09265-45002-000 |
from US $45.60 |
||
|
27
|
27
27461-83000-000 ADJUSTER,DIFF SIDE BEARING |
27461-83000-000 |
from US $7.52 |
||
|
28
|
28
27462-63202-000 PLATE,BEARING LOCK |
27462-63202-000 |
US $2.74 |
||
|
29
|
29
01570-08123-000
Bolt
|
01570-08123-000 |
— | ||
| replacement | |||||
|
29
|
29
01570-0812A-000 Bolt |
01570-0812A-000 |
US $14.40 |
||
|
30
|
30
56300-60A00-000 SENSOR |
56300-60A00-000 |
US $108.56 |
||
|
31
|
31
01550-08123-000
Bolt
|
01550-08123-000 |
— | ||
| replacements | |||||
|
31
|
31
01550-0812B-000 BoltPlug, drain |
01550-0812B-000 |
from US $0.96 |
||
|
31
|
31
01550-0812A-000 BOLT |
01550-0812A-000 |
from US $0.91 |
||
|
32
|
32
56320-60A00-000
カバー,センサ
|
56320-60A00-000 |
— | ||
|
33
|
33
09103-08275-000
Bolt, 8x12
|
09103-08275-000 |
— | ||
| replacement | |||||
|
33
|
33
09103-08382-000 BOLT(8X12) |
09103-08382-000 |
from US $2.08 |
||
