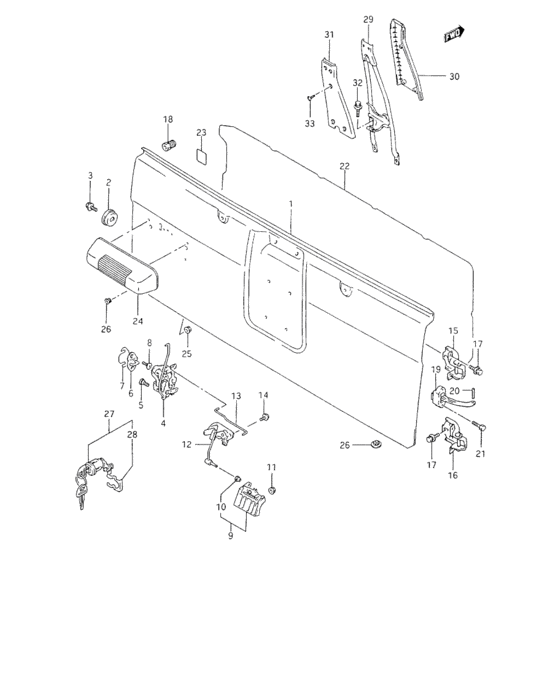

Rear gate (C) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- Caribbean
- drive
- 2WD
- transmission
- AT
- grade
- JS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
67700-60A10-000
Panel assy, rr gate
92 MODEL,93 MODEL |
67700-60A10-000 |
— | ||
| replacement | |||||
|
1
|
1
67700-63811-000
Panel assy,rr gate
92 MODEL,93 MODEL |
67700-63811-000 |
— | ||
|
1
|
1
67700-63A10-000
Panel assy, rear gate
94 MODEL |
67700-63A10-000 |
— | ||
| replacement | |||||
|
1
|
1
67700-63811-000
Panel assy,rr gate
94 MODEL |
67700-63811-000 |
— | ||
|
1
|
1
67700-62A00-000
Panel assy, rear gate
95 MODEL |
67700-62A00-000 |
— | ||
| replacement | |||||
|
1
|
1
67700-63811-000
Panel assy,rr gate
95 MODEL |
67700-63811-000 |
— | ||
|
2
|
2
82761-61A00-000 MALE,BACK DR STOP DR |
82761-61A00-000 |
US $19.20 |
||
|
3
|
3
09118-08128-000 BOLT(8X16)Bolt, front fender, front |
09118-08128-000 |
US $1.28 |
||
|
4
|
4
82530-60A10-000 LATCH ASSY,RR GATE |
82530-60A10-000 |
US $144 |
||
|
5
|
5
02122-56163-000
SCREW
|
02122-56163-000 |
— | ||
| replacement | |||||
|
5
|
5
02122-5616B-000 SCREW |
02122-5616B-000 |
US $0.80 |
||
|
6
|
6
82660-61A00-000
ストライカ,バックドアラッチ
|
82660-61A00-000 |
— | ||
| replacement | |||||
|
6
|
6
82660-61A01-000 STRIKER,BACK DOOR LATCH |
82660-61A01-000 |
US $43.20 |
||
|
7
|
7
78199-78000-000 SPACER,DOOR LOCK STRIKER |
78199-78000-000 |
US $1.60 |
||
|
8
|
8
09137-08011-000 SCREW(8X18) |
09137-08011-000 |
US $1.44 |
||
|
9
|
9
82850-61A01-000 HANDLE,BACK DOOR OUT |
82850-61A01-000 |
from US $41.02 |
||
|
10
|
10
82816-82001-000 SNAP,ADJUSTING JOINT |
82816-82001-000 |
US $1.60 |
||
|
11
|
11
08316-20063-000
Nut
|
08316-20063-000 |
— | ||
| replacement | |||||
|
11
|
11
08316-2006A-000 NUT |
08316-2006A-000 |
from US $0.76 |
||
|
12
|
12
83190-60A10-000 LINK,RR GATE INSIDE |
83190-60A10-000 |
US $56 |
||
|
13
|
13
83195-60A10-000 ROD,RR GATE LATCH |
83195-60A10-000 |
US $2.54 |
||
|
14
|
14
02112-76123-000
Screw
|
02112-76123-000 |
— | ||
| replacement | |||||
|
14
|
14
02112-7612B-000 SCREW |
02112-7612B-000 |
from US $0.96 |
||
|
15
|
15
67730-60A11-000 HINGE,RR GATE UPR |
67730-60A11-000 |
US $60.80 |
||
|
16
|
16
69520-61A00-000 HINGE,RR GATE LWR |
69520-61A00-000 |
US $57.76 |
||
|
17
|
17
09118-08156-000 BOLT(8X25) |
09118-08156-000 |
US $19.50 |
||
|
18
|
18
72372-82000-000 CUSHION,BACK DR SIDECushion |
72372-82000-000 |
from US $2.12 |
||
|
19
|
19
72850-60A11-000 STOP,RR GATE OPEN |
72850-60A11-000 |
US $48 |
||
|
20
|
20
81831-70B00-000 PIN,DOOR OPEN STOPPER BODY |
81831-70B00-000 |
US $1.60 |
||
|
21
|
21
01580-06163-000
Bolt
|
01580-06163-000 |
— | ||
| replacement | |||||
|
21
|
21
01580-0616A-000 BOLT |
01580-0616A-000 |
from US $0.96 |
||
|
22
|
22
83911-60X50-000
カバー,ドアシーリング,600X1200
CUT AS REQUIRED,<-72891-60A10 |
83911-60X50-000 |
— | ||
| replacement | |||||
|
22
|
22
83911-60X52-000 COVER,DR SEALINGCUT AS REQUIRED,<-72891-60A10 |
83911-60X52-000 |
US $6.06 |
||
|
23
|
23
72893-60A10-000 SEAL,RR GATE |
72893-60A10-000 |
US $1.60 |
||
|
24
|
24
83930-61A00-5PK
COVER,BACK DR LIC LAMP
PAINT TO MATCH |
83930-61A00-5PK |
— | ||
|
25
|
25
08316-20063-000
Nut
|
08316-20063-000 |
— | ||
| replacement | |||||
|
25
|
25
08316-2006A-000 NUT |
08316-2006A-000 |
from US $0.76 |
||
|
26
|
26
09148-06007-000 NUT |
09148-06007-000 |
from US $0.86 |
||
|
27
|
27
82500-60821-000 CYLINDER,RR GATE LOCK<-82500-60820 |
82500-60821-000 |
US $80.56 |
||
|
28
|
28
82577-61A00-000 RETAINER,RR GATE LATCH |
82577-61A00-000 |
US $11.20 |
||
|
29
|
29
72820-63A00-000 STAY,STOP LAMP94 MODEL,95 MODEL |
72820-63A00-000 |
US $2,356.40 |
||
|
30
|
30
72831-63A00-5PK COVER,HMSL,FR94 MODEL,95 MODEL |
72831-63A00-5PK |
US $23.18 |
||
|
31
|
31
72832-63A00-5PK
COVER,HMSL,RR
94 MODEL,95 MODEL |
72832-63A00-5PK |
— | ||
|
32
|
32
01580-08203-000
Bolt, rear
94 MODEL,95 MODEL |
01580-08203-000 |
— | ||
| replacement | |||||
|
32
|
32
01580-0820A-000 Bolt94 MODEL,95 MODEL |
01580-0820A-000 |
from US $0.91 |
||
|
33
|
33
03541-05123-000
Screw
94 MODEL,95 MODEL |
03541-05123-000 |
— | ||
| replacement | |||||
|
33
|
33
03541-0512B-000 SCREW94 MODEL,95 MODEL |
03541-0512B-000 |
from US $0.76 |
||
