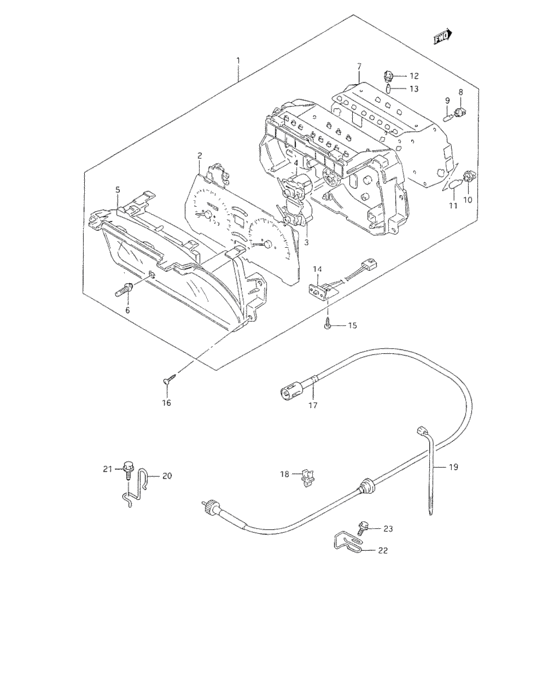

Speedometer (V:94,95 MODEL:PRODUCT OF CANADA) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- Caribbean
- drive
- 2WD
- transmission
- AT
- grade
- JS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34100-60AN0-000
Speedometer assy
AT: |
34100-60AN0-000 |
— | ||
|
1
|
1
34100-61AN0-000
Speedometer assy
AT:California |
34100-61AN0-000 |
— | ||
|
2
|
2
34120-60AN0-000
Body assy, speed & tachometer
AT: |
34120-60AN0-000 |
— | ||
|
2
|
2
34120-61AN0-000
Body assy, speed & tachometer
AT:California |
34120-61AN0-000 |
— | ||
|
3
|
3
34320-60AD0-000
Body assy, fuel meter
|
34320-60AD0-000 |
— | ||
|
4
|
4
34420-60AM0-000
Body assy, temp meter
|
34420-60AM0-000 |
— | ||
|
5
|
5
34111-60AD0-000
Visor, meter
|
34111-60AD0-000 |
— | ||
|
6
|
6
34145-60AC0-000
Cover, trip knob
|
34145-60AC0-000 |
— | ||
|
7
|
7
34152-60AM0-000
Plate, printed
|
34152-60AM0-000 |
— | ||
|
8
|
8
34175-50A20-000 SOCKET |
34175-50A20-000 |
US $3.39 |
||
|
9
|
9
09471-12133-000 BULB(12V3W) |
09471-12133-000 |
US $60.70 |
||
|
10
|
10
34172-50E10-000 SOCKET |
34172-50E10-000 |
US $1.60 |
||
|
11
|
11
09471-12092-000 BULB(12V3.4W G30) |
09471-12092-000 |
US $2.56 |
||
|
12
|
12
34175-78900-000 SOCKETAT |
34175-78900-000 |
US $1.52 |
||
|
13
|
13
09471-12055-000 BULB(14V1.4W,T5)AT |
09471-12055-000 |
from US $2.40 |
||
|
14
|
14
34130-60AC0-000
Switch assy, cancel
|
34130-60AC0-000 |
— | ||
|
15
|
15
03541-05123-000
Screw
|
03541-05123-000 |
— | ||
| replacement | |||||
|
15
|
15
03541-0512B-000 SCREW |
03541-0512B-000 |
from US $0.76 |
||
|
16
|
16
03541-05203-000
Screw
|
03541-05203-000 |
— | ||
| replacement | |||||
|
16
|
16
03541-0520A-000 SCREW |
03541-0520A-000 |
from US $0.76 |
||
|
17
|
17
34910-60A41-000
CABLE ASSY,SPEEDOMETER
AT |
34910-60A41-000 |
— | ||
|
18
|
18
09403-07306-000 CLAMPClamp |
09403-07306-000 |
from US $2.56 |
||
|
19
|
19
09407-18403-000
Clamp, switch wire
|
09407-18403-000 |
— | ||
| replacement | |||||
|
19
|
19
09407-18402-000 CLAMP(L:165)Clamp (l:165) |
09407-18402-000 |
from US $1.98 |
||
|
22
|
22
34926-57B20-000
CLAMP,SPDOM CABLE
AT |
34926-57B20-000 |
— | ||
|
23
|
23
01550-06103-000
Bolt, front
AT |
01550-06103-000 |
— | ||
| replacements | |||||
|
23
|
23
01550-0610B-000 BoltBolt AT |
01550-0610B-000 |
from US $0.80 |
||
|
23
|
23
01550-0610A-000 BOLTAT |
01550-0610A-000 |
from US $0.80 |
||
