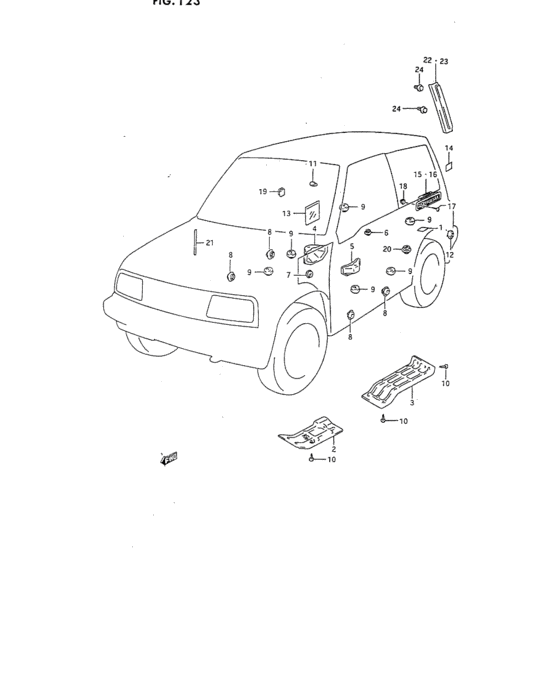

Body cap and cover (BODY CAP AND COVER) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- transmission
- AT
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
72115-85C00-000
Seal, spare tire bracket,cushion hole
|
72115-85C00-000 |
— | ||
|
2
|
2
75511-61A00-000 PANEL,HEAT PROTECTOR CENTER3DR |
75511-61A00-000 |
US $19.14 |
||
|
3
|
3
75512-60A01-000
Panel, heat protector rea
3DR |
75512-60A01-000 |
— | ||
| replacement | |||||
|
3
|
3
75512-60A10-000 PANEL,HEAT PROTECTOR REAR3DR |
75512-60A10-000 |
US $27.23 |
||
|
3
|
3
75512-56B00-000
PANEL,HEAT PROTECTOR REAR
5DR |
75512-56B00-000 |
— | ||
|
4
|
4
75611-60A01-000
COVER,SEAT BRACKET,R
|
75611-60A01-000 |
— | ||
|
5
|
5
75711-60A01-000 COVER,SEAT BRACKET,L |
75711-60A01-000 |
US $15.97 |
||
|
6
|
6
59961-85C00-000
Cap, side body under
3DR |
59961-85C00-000 |
— | ||
|
7
|
7
09250-20015-000 CAP(OD:28.5)Cap, air con harness |
09250-20015-000 |
from US $0.79 |
||
|
8
|
8
09250-25007-000 CAP(OD:25.0)3DR |
09250-25007-000 |
from US $0.97 |
||
|
9
|
9
09250-30015-000
Cap
|
09250-30015-000 |
— | ||
| replacement | |||||
|
9
|
9
72999-67H00-000 CAP,OD:40 |
72999-67H00-000 |
from US $4.32 |
||
|
10
|
10
03141-06163-000
Screw 6x16
|
03141-06163-000 |
— | ||
| replacement | |||||
|
10
|
10
03141-0616A-000 SCREW |
03141-0616A-000 |
from US $0.76 |
||
|
11
|
11
77131-60A10-000 CUSHION,FUEL LIDN/WIDE |
77131-60A10-000 |
US $2.94 |
||
|
11
|
11
77131-85C00-000
Cushion, fuel lid
N/WIDE |
77131-85C00-000 |
— | ||
|
12
|
12
09250-16013-000 CAP(OD:25) |
09250-16013-000 |
US $11.80 |
||
|
13
|
13
76481-61A00-000
FILM,RR QTR WATER PROOF
|
76481-61A00-000 |
— | ||
|
14
|
14
72115-85C00-000
Seal, spare tire bracket,cushion hole
3DR |
72115-85C00-000 |
— | ||
|
15
|
15
77110-61A10-000 AIR OUTLET ASSY,SIDE,R3DR |
77110-61A10-000 |
US $49.41 |
||
|
16
|
16
77120-61A10-000 AIR OUTLET ASSY,SIDE,L3DR |
77120-61A10-000 |
US $49.41 |
||
|
17
|
17
03122-04163-000
スクリュ
3DR |
03122-04163-000 |
— | ||
| replacement | |||||
|
17
|
17
03121-0416A-000 SCREW3DR |
03121-0416A-000 |
US $7.70 |
||
|
18
|
18
09148-04021-000 NUT3DR |
09148-04021-000 |
from US $0.96 |
||
|
19
|
19
77132-60A00-000
ストッパ,フューエルリッド
|
77132-60A00-000 |
— | ||
| replacement | |||||
|
19
|
19
77117-60B00-000 STOPPER,FUEL LID |
77117-60B00-000 |
US $1.76 |
||
|
20
|
20
76411-60A00-000
CAP,CTR PILLAR
JX |
76411-60A00-000 |
— | ||
|
21
|
21
76571-56B01-0CA
テープ,インストメントパネルサイド(ブラック)
BLACK,5DR |
76571-56B01-0CA |
— | ||
|
22
|
22
77111-56B00-0CE GARNISH,AIR OUTLET,R5DR |
77111-56B00-0CE |
US $100.46 |
||
|
23
|
23
77121-56B00-0CE GARNISH,AIR OUTLET,L5DR |
77121-56B00-0CE |
US $100.46 |
||
|
24
|
24
77259-71B00-000 CLIP5DR |
77259-71B00-000 |
US $2.08 |
||
