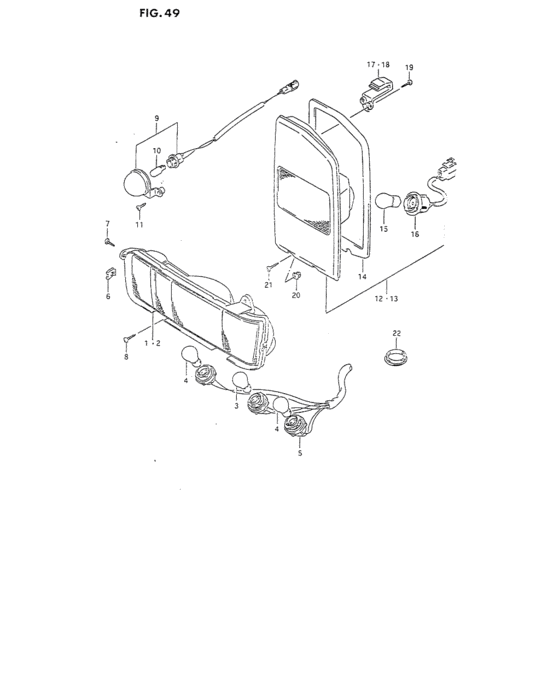

Rear lamp (5) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- transmission
- AT
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35650-60A41-000
LAMP UNIT,RR COMB,R
|
35650-60A41-000 |
— | ||
|
2
|
2
35670-60A41-000
LAMP UNIT,RR COMB,L
|
35670-60A41-000 |
— | ||
|
3
|
3
09471-12083-000 BULB(12V21/5W) |
09471-12083-000 |
from US $4.75 |
||
| replacement | |||||
|
3
|
3
09471-12128-000 BULB(12V21/5W,BF141-49642A) |
09471-12128-000 |
from US $7.20 |
||
|
4
|
4
09471-12045-000 BULB(12V21W) |
09471-12045-000 |
from US $2.54 |
||
|
5
|
5
35655-60A40-000 SOCKET,RR COMB LAMP |
35655-60A40-000 |
US $39.74 |
||
|
6
|
6
09148-04022-000 NUT |
09148-04022-000 |
US $11.40 |
||
|
7
|
7
03141-04123-000
Screw
|
03141-04123-000 |
— | ||
| replacement | |||||
|
7
|
7
03142-0412B-000 SCREW |
03142-0412B-000 |
from US $0.80 |
||
|
8
|
8
03541-04203-000
Screw
|
03541-04203-000 |
— | ||
| replacement | |||||
|
8
|
8
03541-0420A-000 SCREW |
03541-0420A-000 |
from US $2.94 |
||
|
9
|
9
35910-85C00-000
Lamp assy,license
|
35910-85C00-000 |
— | ||
|
10
|
10
09471-12081-000
Bulb (12v,5w)
|
09471-12081-000 |
— | ||
| replacement | |||||
|
10
|
10
09471-12216-000 BULB(12V5W)Bulb (12v5w) |
09471-12216-000 |
from US $2.84 |
||
|
11
|
11
03511-04163-000
Screw
|
03511-04163-000 |
— | ||
| replacement | |||||
|
11
|
11
03511-0416A-000 SCREW |
03511-0416A-000 |
from US $2.45 |
||
|
12
|
12
36570-60A00-0DG
LAMP ASSY,RR FOG,R
BLACK |
36570-60A00-0DG |
— | ||
|
12
|
12
36570-60A00-0FT
LAMP ASSY,RR FOG,R
RED |
36570-60A00-0FT |
— | ||
|
12
|
12
36570-60A00-0VP
LAMP ASSY,RR FOG,R
GREEN |
36570-60A00-0VP |
— | ||
|
12
|
12
36570-60A00-1FG
LAMP ASSY,RR FOG,R
BLUE |
36570-60A00-1FG |
— | ||
|
12
|
12
36570-60A00-1PU
Lamp, rear fog rh
RED |
36570-60A00-1PU |
— | ||
|
12
|
12
36570-60A00-1PV
Lamp, rear fog rh
GREEN |
36570-60A00-1PV |
— | ||
|
12
|
12
36570-60A00-15P
Lamp, rear fog rh
RED |
36570-60A00-15P |
— | ||
|
12
|
12
36570-60A00-26U
LAMP ASSY,RR FOG,R
WHITE |
36570-60A00-26U |
— | ||
|
12
|
12
36570-60A00-38B
Lamp assy,rr fog,r
GRAY |
36570-60A00-38B |
— | ||
|
13
|
13
36590-60A00-0DG
LAMP ASSY,RR FOG,L
BLACK |
36590-60A00-0DG |
— | ||
|
13
|
13
36590-60A00-0FT
Lamp assy,rr fog,l
RED |
36590-60A00-0FT |
— | ||
|
13
|
13
36590-60A00-0VP
LAMP ASSY,RR FOG,L
GREEN |
36590-60A00-0VP |
— | ||
|
13
|
13
36590-60A00-1FG
LAMP ASSY,RR FOG,L
BLUE |
36590-60A00-1FG |
— | ||
|
13
|
13
36590-60A00-1PU
Lamp, rear fog lh
RED |
36590-60A00-1PU |
— | ||
|
13
|
13
36590-60A00-1PV
Lamp, rear fog lh
GREEN |
36590-60A00-1PV |
— | ||
|
13
|
13
36590-60A00-15P
Lamp, rear fog lh
RED |
36590-60A00-15P |
— | ||
|
13
|
13
36590-60A00-26U
LAMP ASSY,RR FOG,L
WHITE |
36590-60A00-26U |
— | ||
|
13
|
13
36590-60A00-38B
Lamp assy,rr fog,l
GRAY |
36590-60A00-38B |
— | ||
|
14
|
14
36573-60A00-000
GASKET,RR FOG LAMP
|
36573-60A00-000 |
— | ||
|
15
|
15
09471-12045-000 BULB(12V21W) |
09471-12045-000 |
from US $2.54 |
||
|
16
|
16
36577-60A00-000
Socket,rear fog lamp
|
36577-60A00-000 |
— | ||
|
17
|
17
36579-60A00-000
Clip,rear fog lamp,rh
|
36579-60A00-000 |
— | ||
|
18
|
18
36599-60A00-000
Clip, lh
|
36599-60A00-000 |
— | ||
|
19
|
19
03511-04123-000
Screw 4x12
|
03511-04123-000 |
— | ||
| replacement | |||||
|
19
|
19
03511-0412A-000 SCREW |
03511-0412A-000 |
from US $0.76 |
||
|
20
|
20
09148-04021-000 NUT |
09148-04021-000 |
from US $0.96 |
||
|
21
|
21
03142-04253-000
Tapping screw
|
03142-04253-000 |
— | ||
| replacement | |||||
|
21
|
21
03142-04259-000 SCREW |
03142-04259-000 |
from US $0.80 |
||
|
22
|
22
36578-56B00-000
PROTECTOR,RR LAMP LEAD WIRE
5DR |
36578-56B00-000 |
— | ||
