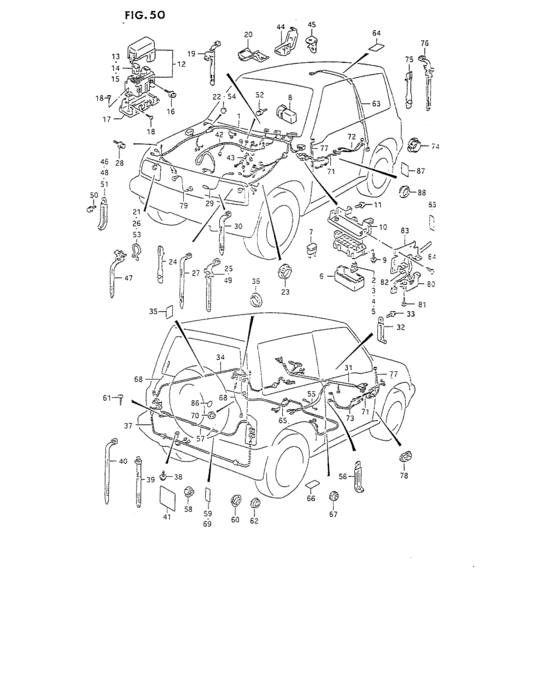

Wiring harness (3DR) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- transmission
- AT
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36610-72E00-000
Harness, wiring main
|
36610-72E00-000 |
— | ||
|
1
|
1
36610-85C40-000
Harness, wiring main
Switzerland,Holland,Austria,Spain |
36610-85C40-000 |
— | ||
|
1
|
1
36610-72EK0-000
Harness, wiring main
Germany |
36610-72EK0-000 |
— | ||
|
2
|
2
09481-10101-000 FUSE(10A)Germany |
09481-10101-000 |
from US $1.28 |
||
|
3
|
3
09481-15101-000 FUSE(15A)Fuse (15a) |
09481-15101-000 |
from US $1.28 |
||
|
4
|
4
09481-20101-000 FUSE(20A) |
09481-20101-000 |
from US $3.35 |
||
|
5
|
5
09481-25101-000 Fuse (25a)EXC/Germany |
09481-25101-000 |
US $2.15 |
||
| replacement | |||||
|
5
|
5
09481-25103-000 FUSE(25A)EXC/Germany |
09481-25103-000 |
from US $2.15 |
||
|
6
|
6
36717-70E00-000
カバー,フューズボックス
|
36717-70E00-000 |
— | ||
|
6
|
6
36717-60A11-000 COVER,FUSE BOXGermany |
36717-60A11-000 |
US $8.83 |
||
|
7
|
7
36795-82000-000 BREAKER,POWER WINDOW |
36795-82000-000 |
US $24.84 |
||
|
8
|
8
33553-52E00-000 FILTER,NOISE SUPPR |
33553-52E00-000 |
US $57.76 |
||
|
9
|
9
02142-05123-000
Screw 5x12
|
02142-05123-000 |
— | ||
| replacement | |||||
|
9
|
9
02142-0512A-000 SCREWScrew, lower |
02142-0512A-000 |
from US $0.80 |
||
|
10
|
10
36735-60A00-000
BRACKET,FUSE BOX
|
36735-60A00-000 |
— | ||
|
11
|
11
01550-06103-000
Bolt, front
|
01550-06103-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
11
|
11
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
12
|
12
36730-60A20-000
BOX ASSY,MAIN FUSE
|
36730-60A20-000 |
— | ||
|
13
|
13
09481-40201-000
フューズ,40A
EXC/Germany |
09481-40201-000 |
— | ||
| replacement | |||||
|
13
|
13
09481-40203-000 FUSE(40A)EXC/Germany |
09481-40203-000 |
US $56.30 |
||
|
14
|
14
09481-50201-000
フューズ,50A
|
09481-50201-000 |
— | ||
| replacement | |||||
|
14
|
14
09481-50203-000 FUSE(50A) |
09481-50203-000 |
US $15.36 |
||
|
15
|
15
09481-60301-000 FUSE(60A) |
09481-60301-000 |
US $56.30 |
||
|
16
|
16
09138-06040-000 BOLT(6X10) |
09138-06040-000 |
US $1.52 |
||
|
17
|
17
36737-60A00-000
BRACKET,MAIN FUSE
|
36737-60A00-000 |
— | ||
|
18
|
18
02142-06103-000
Screw
|
02142-06103-000 |
— | ||
| replacements | |||||
|
18
|
18
02142-0610B-000 SCREWStopper, cl rlse cam shaft |
02142-0610B-000 |
from US $0.76 |
||
|
18
|
18
02142-0610A-000 SCREW |
02142-0610A-000 |
from US $0.80 |
||
|
19
|
19
36990-56B00-000 CLAMP,HARN DASH PANEL |
36990-56B00-000 |
US $1.60 |
||
|
20
|
20
36996-85C00-000
Protector, main harness
|
36996-85C00-000 |
— | ||
|
21
|
21
09408-00055-000 CLAMP |
09408-00055-000 |
US $26.50 |
||
|
22
|
22
09409-07320-000 CAP |
09409-07320-000 |
US $1.28 |
||
|
23
|
23
09308-25002-000 GROMMET |
09308-25002-000 |
US $11.80 |
||
|
24
|
24
09407-05403-000 CLAMP,L:88 |
09407-05403-000 |
from US $0.91 |
||
|
25
|
25
09407-12404-000 CLAMP(L:140) |
09407-12404-000 |
US $2.08 |
||
|
26
|
26
09408-00021-000 CLIP(ID:16)Clip, oil warning reset sw EXC/ |
09408-00021-000 |
US $9.20 |
||
|
27
|
27
36990-85C00-000
Clamp
|
36990-85C00-000 |
— | ||
|
28
|
28
09115-06001-000
Bolt, lh
|
09115-06001-000 |
— | ||
| replacement | |||||
|
28
|
28
09115-06005-000 BOLT(6X16) |
09115-06005-000 |
US $1.28 |
||
|
29
|
29
36955-60A00-000
ワイヤ,パワーステアリング
|
36955-60A00-000 |
— | ||
| replacement | |||||
|
29
|
29
36955-70E00-000 WIRE,POWER STEERING |
36955-70E00-000 |
US $5.70 |
||
|
30
|
30
36990-85C10-000
Clamp, wiper harness
|
36990-85C10-000 |
— | ||
|
31
|
31
36620-66A10-000
Harness, instrument panel
|
36620-66A10-000 |
— | ||
|
31
|
31
36620-65A60-000
HARNESS ASSY,WRG I/P
|
36620-65A60-000 |
— | ||
|
31
|
31
36620-66A50-000
Harness, instrument panel
Germany |
36620-66A50-000 |
— | ||
|
32
|
32
36990-85C20-000
Clamp, harness no. 1
|
36990-85C20-000 |
— | ||
|
33
|
33
03541-05123-000
Screw
|
03541-05123-000 |
— | ||
| replacement | |||||
|
33
|
33
03541-0512B-000 SCREW |
03541-0512B-000 |
from US $0.76 |
||
|
34
|
34
36630-64A41-000
Harness assy,wrg,floor
|
36630-64A41-000 |
— | ||
|
35
|
35
36930-85C00-000
Tape, rr deffoger
|
36930-85C00-000 |
— | ||
|
36
|
36
09308-42001-000
GROMMET
|
09308-42001-000 |
— | ||
|
37
|
37
36640-57B31-000
HARNESS ASSY,WRG RR LAMP
|
36640-57B31-000 |
— | ||
|
38
|
38
09129-06002-000 SCREW(6X12) |
09129-06002-000 |
US $0.96 |
||
|
39
|
39
09407-11402-000 CLAMP(L:90) |
09407-11402-000 |
from US $1.75 |
||
| replacement | |||||
|
39
|
39
09407-17402-000 CLAMP |
09407-17402-000 |
from US $1.98 |
||
|
40
|
40
36990-85C00-000
Clamp
|
36990-85C00-000 |
— | ||
|
41
|
41
36930-70E00-000
カバー,ハーネス
|
36930-70E00-000 |
— | ||
| replacement | |||||
|
41
|
41
36930-70E10-000 COVER,HARNESS |
36930-70E10-000 |
US $4.86 |
||
|
42
|
42
36650-70E22-000
HARNESS ASSY,WRG ENG
|
36650-70E22-000 |
— | ||
|
42
|
42
36650-70E60-000
ハーネスアッシ,ワイヤリング,エンジン
|
36650-70E60-000 |
— | ||
|
43
|
43
36670-70E10-000
HARNESS ASSY,WRG INJ
|
36670-70E10-000 |
— | ||
|
44
|
44
36995-57B20-000
ブラケット,エンジンハーネス
|
36995-57B20-000 |
— | ||
| replacement | |||||
|
44
|
44
36995-70E20-000 BRACKET,ENG HARN |
36995-70E20-000 |
US $6.07 |
||
|
45
|
45
36995-57B30-000 BRACKET,HARN |
36995-57B30-000 |
US $3.02 |
||
|
46
|
46
09404-08419-000 CLAMP(L:80) |
09404-08419-000 |
US $12.50 |
||
| replacement | |||||
|
46
|
46
09404-08422-000 Clamp,wiring Harness |
09404-08422-000 |
from US $3.62 |
||
|
47
|
47
09407-12405-000
CLAMP
|
09407-12405-000 |
— | ||
|
48
|
48
09404-06431-000
CLAMP(L:65)
|
09404-06431-000 |
— | ||
| replacements | |||||
|
48
|
48
09404-06432-000
CLAMP(L:65)
|
09404-06432-000 |
— | ||
|
48
|
48
09404-06039-000 Clamp(L:65) |
09404-06039-000 |
from US $1.82 |
||
|
48
|
48
09404-06038-000 Clamp(L:65) |
09404-06038-000 |
from US $2.40 |
||
|
48
|
48
09404-06433-000
CLAMP(L:80)
|
09404-06433-000 |
— | ||
| replacements | |||||
|
48
|
48
09404-06434-000
CLAMP(L:80 T:1.0)
|
09404-06434-000 |
— | ||
|
48
|
48
09404-06436-000 Clamp(L:80) |
09404-06436-000 |
from US $2.13 |
||
|
48
|
48
09404-06036-000 Clamp(L:80) |
09404-06036-000 |
from US $1.82 |
||
|
49
|
49
09407-12404-000 CLAMP(L:140) |
09407-12404-000 |
US $2.08 |
||
|
50
|
50
01550-06103-000
Bolt, front
|
01550-06103-000 |
— | ||
| replacements | |||||
|
50
|
50
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
50
|
50
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
51
|
51
36990-85C30-000
Clamp, engine harness
|
36990-85C30-000 |
— | ||
|
52
|
52
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
52
|
52
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
52
|
52
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
53
|
53
09408-00024-000 CLIP(ID:23)Clip, ptt sw terminal |
09408-00024-000 |
from US $2.40 |
||
|
54
|
54
09409-07320-000 CAP |
09409-07320-000 |
US $1.28 |
||
|
55
|
55
36660-61A00-000
Harness, wiring mission
|
36660-61A00-000 |
— | ||
|
56
|
56
36990-85C30-000
Clamp, engine harness
|
36990-85C30-000 |
— | ||
|
57
|
57
36845-62A11-000
WIRE,BACK DR
|
36845-62A11-000 |
— | ||
|
58
|
58
36667-60A00-000 CLAMP,DR LOCK WIRE |
36667-60A00-000 |
US $2.32 |
||
|
59
|
59
36930-85C00-000
Tape, rr deffoger
JX |
36930-85C00-000 |
— | ||
|
60
|
60
09308-28001-000 GROMMET |
09308-28001-000 |
US $21.30 |
||
|
61
|
61
09139-05028-000 SCREW(5X14) |
09139-05028-000 |
US $11.40 |
||
|
62
|
62
09250-25007-000 CAP(OD:25.0) |
09250-25007-000 |
from US $0.97 |
||
|
63
|
63
36820-60A30-000
WIRE,ROOM LAMP
|
36820-60A30-000 |
— | ||
|
63
|
63
36820-60A00-000
ワイヤ,ルームランプ
|
36820-60A00-000 |
— | ||
| replacement | |||||
|
63
|
63
36820-60A30-000
WIRE,ROOM LAMP
|
36820-60A30-000 |
— | ||
|
64
|
64
36930-85C00-000
Tape, rr deffoger
|
36930-85C00-000 |
— | ||
|
65
|
65
36823-60A01-000
Wire, belt/parking switch
|
36823-60A01-000 |
— | ||
|
66
|
66
36930-85C00-000
Tape, rr deffoger
|
36930-85C00-000 |
— | ||
|
67
|
67
36995-60A10-000 GROMMET,SIDE SIL |
36995-60A10-000 |
US $1.91 |
||
|
68
|
68
36890-82000-000
ワイヤ,リヤデフォッガリード
W/REAR DEFOGGER |
36890-82000-000 |
— | ||
| replacement | |||||
|
68
|
68
36890-70C00-000 WIRE,RR DF LEADW/REAR DEFOGGER |
36890-70C00-000 |
US $3.28 |
||
|
69
|
69
36930-85C00-000
Tape, rr deffoger
W/REAR DEFOGGER |
36930-85C00-000 |
— | ||
|
70
|
70
09308-03005-000 GROMMETW/REAR DEFOGGER |
09308-03005-000 |
US $12.90 |
||
|
71
|
71
36756-70E00-000 WIRE,WDO&MIRROR,RJLX |
36756-70E00-000 |
US $98.62 |
||
|
72
|
72
36757-60A00-000
WIRE,DR SOL&SW
JLX |
36757-60A00-000 |
— | ||
|
72
|
72
36757-60A20-000
WIRE,DR SOL
JLX: |
36757-60A20-000 |
— | ||
|
73
|
73
36757-60A20-000
WIRE,DR SOL
JLX |
36757-60A20-000 |
— | ||
|
73
|
73
36757-60A00-000
WIRE,DR SOL&SW
JLX: |
36757-60A00-000 |
— | ||
|
74
|
74
09308-40001-000 GROMMETJLX |
09308-40001-000 |
US $21.70 |
||
|
75
|
75
09407-05403-000 CLAMP,L:88JLX |
09407-05403-000 |
from US $0.91 |
||
|
76
|
76
09407-12404-000 CLAMP(L:140)JLX |
09407-12404-000 |
US $2.08 |
||
|
77
|
77
36753-60A00-000
Wire,mirrormot
JLX |
36753-60A00-000 |
— | ||
| replacement | |||||
|
77
|
77
36753-70E00-000 WIRE,MIRROR MOTORJLX |
36753-70E00-000 |
US $32.94 |
||
|
78
|
78
09250-20017-000 PLUG(OD:20)Plug, lower cover |
09250-20017-000 |
US $11.40 |
||
|
79
|
79
39312-82012-000 WIRE,NOISE SUPPR |
39312-82012-000 |
US $9.76 |
||
|
80
|
80
36733-56B10-000
Wire,aldl connector
|
36733-56B10-000 |
— | ||
|
81
|
81
03211-05123-000
Screw
|
03211-05123-000 |
— | ||
| replacement | |||||
|
81
|
81
03211-0512A-000 SCREW |
03211-0512A-000 |
US $0.80 |
||
|
82
|
82
59916-85C00-000
Nut, protector
|
59916-85C00-000 |
— | ||
|
83
|
83
36734-56B00-000
BRACKET,ALDL CONNECTOR
|
36734-56B00-000 |
— | ||
|
84
|
84
03141-05123-000
Screw 5 x 12
|
03141-05123-000 |
— | ||
| replacement | |||||
|
84
|
84
03141-0512A-000 SCREWScrew, belt cooling duct |
03141-0512A-000 |
from US $0.76 |
||
|
85
|
85
36930-85C00-000
Tape, rr deffoger
Germany |
36930-85C00-000 |
— | ||
|
86
|
86
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole N/REAR DEFOGGER |
84761-50X50-000 |
US $6.72 |
||
|
87
|
87
36757-82100-000 FILM,DR WIRE HOLEN/REMO CON MIRROR |
36757-82100-000 |
US $1.03 |
||
|
88
|
88
09250-25008-000 CAP(OD:31)N/REMO CON MIRROR |
09250-25008-000 |
US $13.20 |
||
