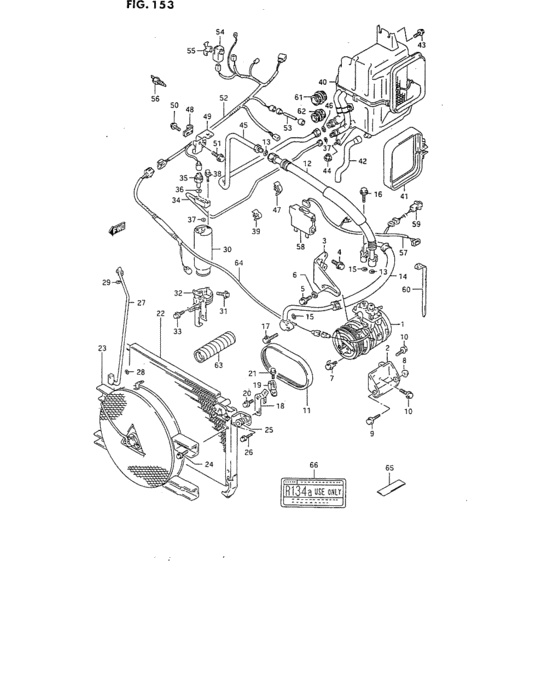

Air conditioner (LHD) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- transmission
- AT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
95000-59B10-000
Car air con assy
5DR |
95000-59B10-000 |
— | ||
|
|
95000-68A70-000
Car air con assy
3DR |
95000-68A70-000 |
— | ||
|
1
|
1
95200-67A50-000
COMPRESSOR&MAGNET CLUTCH
3DR INNER PARTS:FIG.154 |
95200-67A50-000 |
— | ||
|
1
|
1
95200-67A60-000 COMPRESSOR&MAGNET CLUTCH5DR |
95200-67A60-000 |
US $1,444.80 |
||
|
2
|
2
95130-57B50-000 BRACKET,CPRSR POWER STRG |
95130-57B50-000 |
US $94.21 |
||
|
3
|
3
95120-57B50-000
STAY,COMPRESSOR
|
95120-57B50-000 |
— | ||
|
4
|
4
01550-08303-000
Bolt
|
01550-08303-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0830B-000 Bolt |
01550-0830B-000 |
from US $1.06 |
||
|
4
|
4
01550-0830A-000 BOLTBolt, mount oil seal cover |
01550-0830A-000 |
from US $1.12 |
||
|
5
|
5
09103-08247-000 BOLT(8X23) |
09103-08247-000 |
from US $4.13 |
||
|
6
|
6
95912-83080-000
WASHER
|
95912-83080-000 |
— | ||
|
7
|
7
95911-82000-000
BOLT,CPRSR HOLD
|
95911-82000-000 |
— | ||
|
8
|
8
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
8
|
8
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
9
|
9
01550-08253-000
Bolt, rear
|
01550-08253-000 |
— | ||
| replacements | |||||
|
9
|
9
01550-0825B-000 BOLT |
01550-0825B-000 |
from US $0.96 |
||
|
9
|
9
01550-0825A-000 BOLT |
01550-0825A-000 |
from US $1.06 |
||
|
10
|
10
01550-10253-000
Bolt
|
01550-10253-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-1025B-000 BoltBolt, rr swgarm bracket, l |
01550-1025B-000 |
from US $5.59 |
||
|
10
|
10
01550-1025A-000 BOLTBolt, drive gear |
01550-1025A-000 |
from US $1.06 |
||
|
11
|
11
95141-64A60-000 V-BELT,4PK 9353DR |
95141-64A60-000 |
US $57.04 |
||
| replacement | |||||
|
11
|
11
95141-64A60-CDN
Belt,air cond
3DR |
95141-64A60-CDN |
— | ||
|
11
|
11
95141-57B60-000 V-BELT,4PK 9305DR |
95141-57B60-000 |
US $57.04 |
||
| replacement | |||||
|
11
|
11
95141-57B60-CDN
Belt,air cond.4pk930
5DR |
95141-57B60-CDN |
— | ||
|
12
|
12
95710-67A50-000 HOSE,CPRSR SUCT |
95710-67A50-000 |
US $164.86 |
||
|
13
|
13
95896-50G00-000 O-RING,D:2.4 ID:13.4O ring (d:2.5,id:13.4) |
95896-50G00-000 |
US $1.28 |
||
|
14
|
14
95720-68A50-000 HOSE,CPRSR DISCH |
95720-68A50-000 |
US $167.81 |
||
|
15
|
15
95895-50G00-000 O-RING,D:2.4 ID:10.8 |
95895-50G00-000 |
US $1.28 |
||
|
16
|
16
01550-06253-000
Bolt (6x25)
|
01550-06253-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-0625B-000 BOLTBolt, head cover |
01550-0625B-000 |
from US $0.91 |
||
|
16
|
16
01550-0625A-000 BOLTBolt |
01550-0625A-000 |
from US $0.96 |
||
|
17
|
17
01550-06403-000
Bolt (green)
|
01550-06403-000 |
— | ||
| replacements | |||||
|
17
|
17
01550-0640B-000 Bolt |
01550-0640B-000 |
from US $0.96 |
||
|
17
|
17
01550-0640A-000 BoltBolt (l:40) |
01550-0640A-000 |
from US $3.83 |
||
|
18
|
18
95772-57B50-000 STAY,DISCH HOSE CLAMP |
95772-57B50-000 |
US $20.79 |
||
|
19
|
19
95772-82010-000
CLAMP,DISCH HOSE
|
95772-82010-000 |
— | ||
|
20
|
20
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
20
|
20
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
20
|
20
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
21
|
21
01550-06163-000
Bolt
|
01550-06163-000 |
— | ||
| replacements | |||||
|
21
|
21
01550-0616B-000 BOLT |
01550-0616B-000 |
from US $0.76 |
||
|
21
|
21
01550-0616A-000 BOLT |
01550-0616A-000 |
from US $0.76 |
||
|
22
|
22
95310-67A50-000 CONDENSER3DR |
95310-67A50-000 |
US $425.92 |
||
|
22
|
22
95310-58B50-000 CONDENSER5DR |
95310-58B50-000 |
US $471.68 |
||
|
23
|
23
95320-67A40-000
Fan assy
3DR |
95320-67A40-000 |
— | ||
| replacement | |||||
|
23
|
23
95320-67A41-000
FAN ASSY
3DR |
95320-67A41-000 |
— | ||
|
23
|
23
95320-57B50-000
Fan assy
5DR |
95320-57B50-000 |
— | ||
| replacement | |||||
|
23
|
23
95320-57B51-000 CONDENSER FAN ASSY5DR |
95320-57B51-000 |
US $404.80 |
||
|
24
|
24
01570-06123-000
Bolt
|
01570-06123-000 |
— | ||
| replacements | |||||
|
24
|
24
01570-0612B-000 BOLTBolt, upper |
01570-0612B-000 |
US $0.80 |
||
|
24
|
24
01570-0612A-000 BOLTBolt |
01570-0612A-000 |
from US $0.80 |
||
|
25
|
25
95920-86400-000 BUSH5DR |
95920-86400-000 |
US $3.20 |
||
|
26
|
26
01550-06123-000
Bolt
3DR |
01550-06123-000 |
— | ||
| replacements | |||||
|
26
|
26
01550-0612B-000 BOLTBolt, clamp 3DR |
01550-0612B-000 |
from US $0.76 |
||
|
26
|
26
01550-0612A-000 BOLT3DR |
01550-0612A-000 |
from US $0.76 |
||
|
26
|
26
01550-06303-000
Bolt (6x30)
5DR |
01550-06303-000 |
— | ||
| replacement | |||||
|
26
|
26
01550-0630A-000 BOLT5DR |
01550-0630A-000 |
from US $0.96 |
||
|
27
|
27
95733-67A50-000
PIPE,RECEIVER INLET
|
95733-67A50-000 |
— | ||
|
28
|
28
95895-50G00-000 O-RING,D:2.4 ID:10.8 |
95895-50G00-000 |
US $1.28 |
||
|
29
|
29
95891-50G00-000 O-RING,D:1.8 ID:6.7 |
95891-50G00-000 |
from US $0.96 |
||
|
30
|
30
95330-71B20-000
RECEIVER
|
95330-71B20-000 |
— | ||
|
31
|
31
01550-06203-000
Bolt
|
01550-06203-000 |
— | ||
| replacement | |||||
|
31
|
31
01550-0620B-000 BOLTBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
|
32
|
32
95930-60A50-000
BRACKET,RCVR DRYER
|
95930-60A50-000 |
— | ||
|
33
|
33
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
33
|
33
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
33
|
33
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
34
|
34
95732-67A50-000
PIPE,LIQUID
|
95732-67A50-000 |
— | ||
|
35
|
35
95526-50G10-000
Switch, dual pressure
|
95526-50G10-000 |
— | ||
| replacement | |||||
|
35
|
35
95526-50G30-000 SWITCH,DUAL PRESSURE |
95526-50G30-000 |
US $44.84 |
||
|
36
|
36
95894-50G00-000 O-RING,D:1.78 ID:10.6 |
95894-50G00-000 |
from US $2.84 |
||
|
37
|
37
95891-50G00-000 O-RING,D:1.8 ID:6.7 |
95891-50G00-000 |
from US $0.96 |
||
|
38
|
38
01580-06253-000
Bolt, ignition
|
01580-06253-000 |
— | ||
| replacement | |||||
|
38
|
38
01580-0625A-000 Bolt |
01580-0625A-000 |
US $0.96 |
||
|
39
|
39
09408-00149-000
クランプ
|
09408-00149-000 |
— | ||
| replacement | |||||
|
39
|
39
09403-08406-000 CLAMP |
09403-08406-000 |
from US $1.44 |
||
|
40
|
40
95400-67A50-000 COOLING UNITINNER PARTS:FIG.155 |
95400-67A50-000 |
US $799.04 |
||
| replacement | |||||
|
40
|
40
95800-67A51-000
Unit, evaporato
INNER PARTS:FIG.155 |
95800-67A51-000 |
— | ||
|
41
|
41
95779-60A50-000
CLAMP,EVAP
|
95779-60A50-000 |
— | ||
|
42
|
42
95491-60A50-000
HOSE,DRAIN
|
95491-60A50-000 |
— | ||
|
43
|
43
01550-06163-000
Bolt
|
01550-06163-000 |
— | ||
| replacements | |||||
|
43
|
43
01550-0616B-000 BOLT |
01550-0616B-000 |
from US $0.76 |
||
|
43
|
43
01550-0616A-000 BOLT |
01550-0616A-000 |
from US $0.76 |
||
|
44
|
44
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
44
|
44
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
45
|
45
95731-67A50-000
PIPE,SUCTION
|
95731-67A50-000 |
— | ||
|
46
|
46
95896-50G00-000 O-RING,D:2.4 ID:13.4O ring (d:2.5,id:13.4) |
95896-50G00-000 |
US $1.28 |
||
|
47
|
47
09408-16001-000
クランプ
|
09408-16001-000 |
— | ||
| replacement | |||||
|
47
|
47
09403-16410-000 CLAMP |
09403-16410-000 |
from US $1.67 |
||
|
48
|
48
95777-60A50-000
Clamp, suction pipe
|
95777-60A50-000 |
— | ||
| replacement | |||||
|
48
|
48
95777-60A51-000 CLAMP,SUCT PIPE |
95777-60A51-000 |
US $5.45 |
||
|
49
|
49
95773-57B50-000
STAY,SUCT PIPE CLAMP
|
95773-57B50-000 |
— | ||
|
50
|
50
01550-06163-000
Bolt
|
01550-06163-000 |
— | ||
| replacements | |||||
|
50
|
50
01550-0616B-000 BOLT |
01550-0616B-000 |
from US $0.76 |
||
|
50
|
50
01550-0616A-000 BOLT |
01550-0616A-000 |
from US $0.76 |
||
|
51
|
51
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
51
|
51
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
51
|
51
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
52
|
52
95584-67A50-000
Harness,eng room
|
95584-67A50-000 |
— | ||
|
53
|
53
95585-60A50-000
LINK,FUSIBLE
|
95585-60A50-000 |
— | ||
|
54
|
54
38860-72G00-000 RELAY ASSYRelay, air con |
38860-72G00-000 |
US $45.60 |
||
|
55
|
55
95981-60A50-000
BRACKET,FUSE
|
95981-60A50-000 |
— | ||
|
56
|
56
95573-60A50-000
SWITCH,WATER TEMP
|
95573-60A50-000 |
— | ||
|
57
|
57
95581-60A50-000
Harness, inner
|
95581-60A50-000 |
— | ||
| replacement | |||||
|
57
|
57
95581-60A51-000 HARNESS,INR |
95581-60A51-000 |
US $59.25 |
||
|
58
|
58
95575-60A50-000
Controller assy
|
95575-60A50-000 |
— | ||
| replacement | |||||
|
58
|
58
95510-78E40-000
CONTROLLER,A/C
|
95510-78E40-000 |
— | ||
|
59
|
59
95571-60A50-000
SWITCH,A/C
|
95571-60A50-000 |
— | ||
|
60
|
60
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap 3DR |
09407-14403-000 |
from US $2.08 |
||
|
61
|
61
74813-82000-000 GROMMET,CAR AIR CON,NO.1 |
74813-82000-000 |
US $6.72 |
||
| replacement | |||||
|
61
|
61
74814-82000-000 GROMMET,CAR AIR CON,NO.2 |
74814-82000-000 |
US $6.08 |
||
|
62
|
62
74814-82000-000 GROMMET,CAR AIR CON,NO.2 |
74814-82000-000 |
US $6.08 |
||
|
63
|
63
95765-83000-000 PROTECTOR,PIPE |
95765-83000-000 |
US $10.19 |
||
|
64
|
64
95583-67A50-000 HARNESS,A/C JOINT |
95583-67A50-000 |
US $41.95 |
||
|
65
|
65
36930-82000-000
カバー
|
36930-82000-000 |
— | ||
| replacement | |||||
|
65
|
65
36930-82010-000 COVER,HARNESSCover, roof wire |
36930-82010-000 |
from US $1.73 |
||
|
66
|
66
95955-72B00-000 LABEL,REFRIGERANT |
95955-72B00-000 |
US $1.60 |
||
