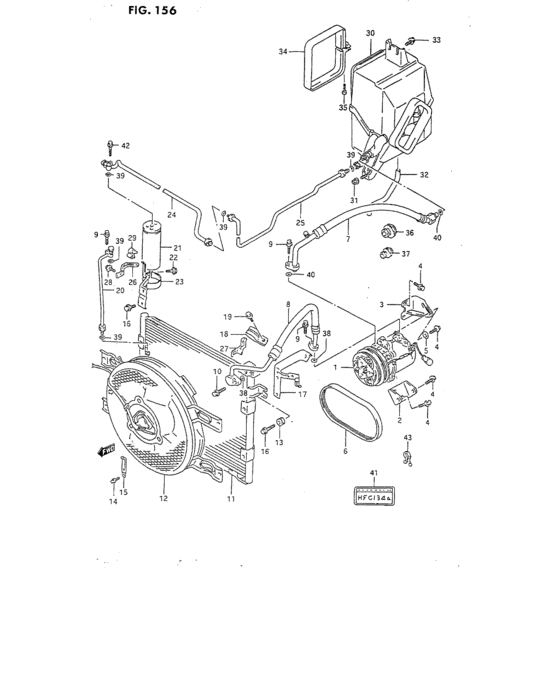

Air conditioner (RHD) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- transmission
- AT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
95000-58B20-000
Car air con assy
5DR |
95000-58B20-000 |
— | ||
|
|
95000-68A30-000
Car air con assy
3DR |
95000-68A30-000 |
— | ||
|
1
|
1
95200-70CB0-000
コンプレッサアッシ
INNER PARTS:FIG.158( |
95200-70CB0-000 |
— | ||
| replacements | |||||
|
1
|
1
95200-70CG1-000 COMPRESSOR ASSYINNER PARTS:FIG.158( |
95200-70CG1-000 |
US $1,248 |
||
|
1
|
1
95533-70C00-000 HARNESS,COMPRESSOR JOINTINNER PARTS:FIG.158( |
95533-70C00-000 |
US $15.20 |
||
|
2
|
2
95130-57B10-000
BRACKET,CPRSR POWER STRG
|
95130-57B10-000 |
— | ||
|
3
|
3
95120-57B00-000 STAY,COMPRESSOR |
95120-57B00-000 |
US $48.21 |
||
|
4
|
4
01550-08203-000
Bolt
|
01550-08203-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0820B-000 Bolt |
01550-0820B-000 |
from US $0.91 |
||
|
4
|
4
01550-0820A-000 BOLTBolt, funnel bracket |
01550-0820A-000 |
from US $0.96 |
||
|
5
|
5
09160-08093-000
Washer 8.5x24x2
|
09160-08093-000 |
— | ||
| replacement | |||||
|
5
|
5
09160-08501-000 WASHER(8.5X24X2.3)Washer |
09160-08501-000 |
from US $1.60 |
||
|
6
|
6
49180-60B10-000
ベルト,4PK950
|
49180-60B10-000 |
— | ||
| replacements | |||||
|
6
|
6
49180-60B10-CDN
Belt,air cond.4pk950
|
49180-60B10-CDN |
— | ||
|
6
|
6
17521-52E00-000 V-BELT, 4PK950 |
17521-52E00-000 |
from US $33.03 |
||
|
7
|
7
95710-67A00-000
Hose, suction
|
95710-67A00-000 |
— | ||
| replacement | |||||
|
7
|
7
95710-67A10-000 HOSE,SUCTION |
95710-67A10-000 |
US $181.79 |
||
|
8
|
8
95720-68A00-000
Hose, discharge
|
95720-68A00-000 |
— | ||
| replacement | |||||
|
8
|
8
95720-68A10-000
HOSE,DISCHARGE
|
95720-68A10-000 |
— | ||
|
9
|
9
01550-06253-000
Bolt (6x25)
|
01550-06253-000 |
— | ||
| replacements | |||||
|
9
|
9
01550-0625B-000 BOLTBolt, head cover |
01550-0625B-000 |
from US $0.91 |
||
|
9
|
9
01550-0625A-000 BOLTBolt |
01550-0625A-000 |
from US $0.96 |
||
|
10
|
10
01550-06253-000
Bolt (6x25)
|
01550-06253-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0625B-000 BOLTBolt, head cover |
01550-0625B-000 |
from US $0.91 |
||
|
10
|
10
01550-0625A-000 BOLTBolt |
01550-0625A-000 |
from US $0.96 |
||
|
11
|
11
95310-67A01-000
CONDENSER
3DR |
95310-67A01-000 |
— | ||
|
11
|
11
95310-58B00-000
CONDENSER
5DR |
95310-58B00-000 |
— | ||
|
12
|
12
95320-60A01-000
Fan assy
3DR |
95320-60A01-000 |
— | ||
| replacement | |||||
|
12
|
12
95320-55X51-000 FAN ASSY,COND3DR |
95320-55X51-000 |
from US $241.05 |
||
|
12
|
12
95320-57B50-000
Fan assy
5DR |
95320-57B50-000 |
— | ||
| replacement | |||||
|
12
|
12
95320-57B51-000 CONDENSER FAN ASSY5DR |
95320-57B51-000 |
US $404.80 |
||
|
13
|
13
95920-86400-000 BUSH5DR |
95920-86400-000 |
US $3.20 |
||
|
14
|
14
01550-06103-000
Bolt, front
3DR |
01550-06103-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0610B-000 BoltBolt 3DR |
01550-0610B-000 |
from US $0.80 |
||
|
14
|
14
01550-0610A-000 BOLT3DR |
01550-0610A-000 |
from US $0.80 |
||
|
14
|
14
01550-06123-000
Bolt
5DR |
01550-06123-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0612B-000 BOLTBolt, clamp 5DR |
01550-0612B-000 |
from US $0.76 |
||
|
14
|
14
01550-0612A-000 BOLT5DR |
01550-0612A-000 |
from US $0.76 |
||
|
15
|
15
09404-06431-000
CLAMP(L:65)
3DR |
09404-06431-000 |
— | ||
| replacements | |||||
|
15
|
15
09404-06432-000
CLAMP(L:65)
3DR |
09404-06432-000 |
— | ||
|
15
|
15
09404-06039-000 Clamp(L:65)3DR |
09404-06039-000 |
from US $1.82 |
||
|
15
|
15
09404-06038-000 Clamp(L:65)3DR |
09404-06038-000 |
from US $2.40 |
||
|
16
|
16
01550-06123-000
Bolt
3DR |
01550-06123-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-0612B-000 BOLTBolt, clamp 3DR |
01550-0612B-000 |
from US $0.76 |
||
|
16
|
16
01550-0612A-000 BOLT3DR |
01550-0612A-000 |
from US $0.76 |
||
|
16
|
16
01550-06303-000
Bolt (6x30)
5DR |
01550-06303-000 |
— | ||
| replacement | |||||
|
16
|
16
01550-0630A-000 BOLT5DR |
01550-0630A-000 |
from US $0.96 |
||
|
17
|
17
95772-57B01-000
STAY
|
95772-57B01-000 |
— | ||
|
18
|
18
95772-70C51-000 CLAMP,SUCT HOSE |
95772-70C51-000 |
US $9.83 |
||
|
19
|
19
01550-06163-000
Bolt
|
01550-06163-000 |
— | ||
| replacements | |||||
|
19
|
19
01550-0616B-000 BOLT |
01550-0616B-000 |
from US $0.76 |
||
|
19
|
19
01550-0616A-000 BOLT |
01550-0616A-000 |
from US $0.76 |
||
|
20
|
20
95733-67A00-000
PIPE,RECEIVER DRYER INLET
|
95733-67A00-000 |
— | ||
|
21
|
21
95330-72B00-000 RECEIVER DRYER |
95330-72B00-000 |
US $107.24 |
||
|
22
|
22
01550-06203-000
Bolt
|
01550-06203-000 |
— | ||
| replacement | |||||
|
22
|
22
01550-0620B-000 BOLTBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
|
23
|
23
95930-67A00-000
BRACKET
|
95930-67A00-000 |
— | ||
|
24
|
24
95734-67A00-000
Pipe,rcvr dryer outlet
|
95734-67A00-000 |
— | ||
| replacement | |||||
|
24
|
24
95734-67A01-000 PIPE,RECEIVER DRYER OUTLET |
95734-67A01-000 |
US $160.45 |
||
|
25
|
25
95732-67A00-000
Pipe, liquid
|
95732-67A00-000 |
— | ||
| replacement | |||||
|
25
|
25
95732-67A01-000 PIPE,LIQUID |
95732-67A01-000 |
US $17.60 |
||
|
26
|
26
95781-60A00-000
Stay,rcvr dryer outlet pipe,r
|
95781-60A00-000 |
— | ||
|
27
|
27
95782-60A00-000
Stay,rcvr dryer outlet pipe,l
|
95782-60A00-000 |
— | ||
|
28
|
28
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
28
|
28
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
28
|
28
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
29
|
29
09408-00149-000
クランプ
|
09408-00149-000 |
— | ||
| replacement | |||||
|
29
|
29
09403-08406-000 CLAMP |
09403-08406-000 |
from US $1.44 |
||
|
30
|
30
95400-67A00-000
EVAPORATOR UNIT
INNER PARTS:FIG.159 |
95400-67A00-000 |
— | ||
|
31
|
31
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
31
|
31
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
32
|
32
95491-60A00-000
ホース,ドレーン
|
95491-60A00-000 |
— | ||
| replacement | |||||
|
32
|
32
95480-67A00-000
HOSE,DRAIN
|
95480-67A00-000 |
— | ||
|
33
|
33
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
33
|
33
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
33
|
33
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
34
|
34
95779-60A00-000 CLAMP,EVAP |
95779-60A00-000 |
US $17.15 |
||
|
35
|
35
02112-35303-000
Screw
|
02112-35303-000 |
— | ||
| replacement | |||||
|
35
|
35
02112-3530A-000 SCREW |
02112-3530A-000 |
from US $0.91 |
||
|
36
|
36
74813-82000-000 GROMMET,CAR AIR CON,NO.1 |
74813-82000-000 |
US $6.72 |
||
| replacement | |||||
|
36
|
36
74814-82000-000 GROMMET,CAR AIR CON,NO.2 |
74814-82000-000 |
US $6.08 |
||
|
37
|
37
74814-82000-000 GROMMET,CAR AIR CON,NO.2 |
74814-82000-000 |
US $6.08 |
||
|
38
|
38
95895-50G00-000 O-RING,D:2.4 ID:10.8 |
95895-50G00-000 |
US $1.28 |
||
|
39
|
39
95891-50G00-000 O-RING,D:1.8 ID:6.7 |
95891-50G00-000 |
from US $0.96 |
||
|
40
|
40
95896-50G00-000 O-RING,D:2.4 ID:13.4O ring (d:2.5,id:13.4) |
95896-50G00-000 |
US $1.28 |
||
|
41
|
41
95955-72B00-000 LABEL,REFRIGERANT |
95955-72B00-000 |
US $1.60 |
||
|
42
|
42
01550-06353-000
Bolt
|
01550-06353-000 |
— | ||
| replacements | |||||
|
42
|
42
01550-0635B-000 Bolt |
01550-0635B-000 |
from US $0.91 |
||
|
42
|
42
01550-0635A-000 Bolt |
01550-0635A-000 |
from US $0.96 |
||
|
43
|
43
09408-00020-000 CLIPClamp, lead wire |
09408-00020-000 |
US $9.90 |
||
