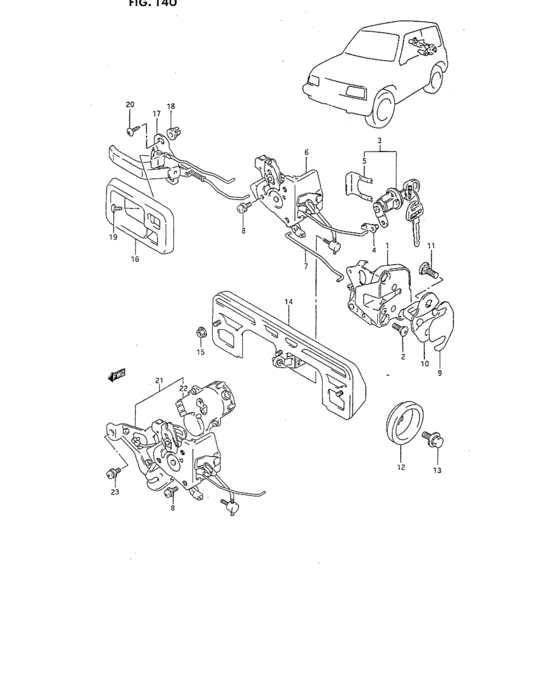

Back door lock (3DR:V) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- transmission
- AT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82530-61A00-000 LATCH ASSY,BACK DR |
82530-61A00-000 |
US $132 |
||
|
2
|
2
02122-56163-000
SCREW
|
02122-56163-000 |
— | ||
| replacement | |||||
|
2
|
2
02122-5616B-000 SCREW |
02122-5616B-000 |
US $0.80 |
||
|
3
|
3
82500-60831-000 CYLINDER,BACK DR LOCK |
82500-60831-000 |
US $71.44 |
||
|
4
|
4
82287-60A00-000 HOLDER |
82287-60A00-000 |
US $1.60 |
||
|
5
|
5
82577-61A00-000 RETAINER,RR GATE LATCH |
82577-61A00-000 |
US $11.20 |
||
|
6
|
6
83170-62A00-000 LINK,BACK DR LATCHJX |
83170-62A00-000 |
US $60.72 |
||
|
7
|
7
83175-85C00-000
Rod, back door latch
|
83175-85C00-000 |
— | ||
|
8
|
8
02112-76123-000
Screw
|
02112-76123-000 |
— | ||
| replacement | |||||
|
8
|
8
02112-7612B-000 SCREW |
02112-7612B-000 |
from US $0.96 |
||
|
9
|
9
78199-78000-000 SPACER,DOOR LOCK STRIKER |
78199-78000-000 |
US $1.60 |
||
|
10
|
10
82660-61A00-000
ストライカ,バックドアラッチ
|
82660-61A00-000 |
— | ||
| replacement | |||||
|
10
|
10
82660-61A01-000 STRIKER,BACK DOOR LATCH |
82660-61A01-000 |
US $43.20 |
||
|
11
|
11
09137-08006-000
Screw
|
09137-08006-000 |
— | ||
| replacements | |||||
|
11
|
11
09137-08011-000 SCREW(8X18) |
09137-08011-000 |
US $1.44 |
||
|
11
|
11
09137-08004-000 SCREW(8X18) |
09137-08004-000 |
from US $0.90 |
||
|
12
|
12
82761-85C00-000
Male, stop
|
82761-85C00-000 |
— | ||
|
13
|
13
09118-08128-000 BOLT(8X16)Bolt, front fender, front |
09118-08128-000 |
US $1.28 |
||
|
14
|
14
82850-85C00-5PK
Handle, door out
BLACK,JX |
82850-85C00-5PK |
— | ||
|
14
|
14
82850-85C00-0DG
Handle, door outer
BLACK,JLX |
82850-85C00-0DG |
— | ||
|
14
|
14
82850-85C00-0FT
Handle, door outer
RED,JLX |
82850-85C00-0FT |
— | ||
|
14
|
14
82850-85C00-0VP
Handle, door outer
GREEN,JLX |
82850-85C00-0VP |
— | ||
|
14
|
14
82850-85C00-1FG
Handle, door outer
BLUE,JLX |
82850-85C00-1FG |
— | ||
|
14
|
14
82850-85C00-1PU
Handle, door outer
MAGENTA,JLX |
82850-85C00-1PU |
— | ||
|
14
|
14
82850-85C00-1PV
Handle, door outer
GREEN,JLX |
82850-85C00-1PV |
— | ||
|
14
|
14
82850-85C00-15P
Handle, door outer
RED,JLX |
82850-85C00-15P |
— | ||
|
14
|
14
82850-85C00-26U
Handle, door outer
WHITE,JLX |
82850-85C00-26U |
— | ||
|
14
|
14
82850-85C00-38B
Handle, door outer
GRAY,JLX |
82850-85C00-38B |
— | ||
|
15
|
15
08316-20063-000
Nut
JLX |
08316-20063-000 |
— | ||
| replacement | |||||
|
15
|
15
08316-2006A-000 NUTJLX |
08316-2006A-000 |
from US $0.76 |
||
|
16
|
16
82981-82000-5ES
Bezel, inside handle
BLACK,Switzerland,Germany,Austria |
82981-82000-5ES |
— | ||
| replacement | |||||
|
16
|
16
82981-82000-5PK BEZEL,DR INSIDE HDLBLACK,Switzerland,Germany,Austria |
82981-82000-5PK |
US $16.80 |
||
|
17
|
17
83190-62A00-5ES
Handle comp,back door inside
BLACK,Switzerland,Germany,Austria |
83190-62A00-5ES |
— | ||
|
18
|
18
09148-06007-000 NUTSwitzerland,Germany,Austria |
09148-06007-000 |
from US $0.86 |
||
|
19
|
19
03111-04083-000
Screw, bezel
Switzerland,Germany,Austria |
03111-04083-000 |
— | ||
| replacement | |||||
|
19
|
19
03111-0408A-000 SCREWSwitzerland,Germany,Austria |
03111-0408A-000 |
US $9.90 |
||
|
20
|
20
03241-06123-000
Screw
Switzerland,Germany,Austria |
03241-06123-000 |
— | ||
| replacement | |||||
|
20
|
20
03241-0612A-000 SCREWSwitzerland,Germany,Austria |
03241-0612A-000 |
US $0.80 |
||
|
21
|
21
83170-57B00-000 LINK ASSY,BACK DR LATCHJLX |
83170-57B00-000 |
US $358.80 |
||
|
21
|
21
83170-58B00-000
LINK ASSY,BACK DR LATCH
JLX:Switzerland,Germany,Austria |
83170-58B00-000 |
— | ||
|
22
|
22
82550-57B00-000 ACTUATOR,BACK DR LATCHJLX |
82550-57B00-000 |
US $268.64 |
||
|
23
|
23
02112-76123-000
Screw
JLX |
02112-76123-000 |
— | ||
| replacement | |||||
|
23
|
23
02112-7612B-000 SCREWJLX |
02112-7612B-000 |
from US $0.96 |
||
