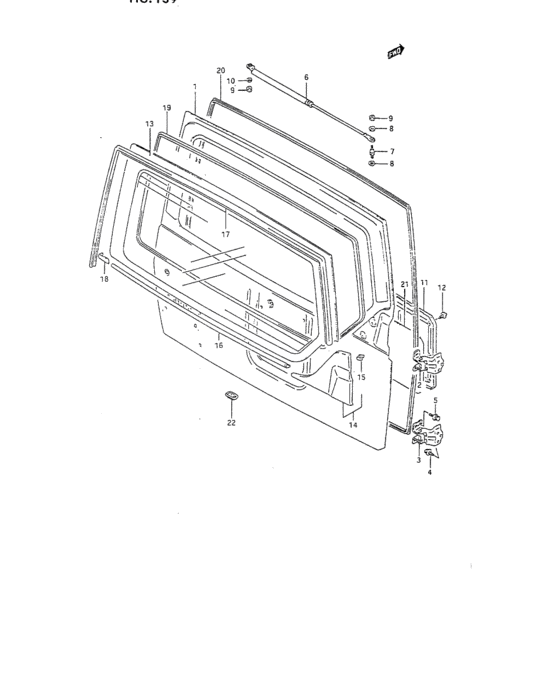

Back door panel (V) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- transmission
- AT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
69100-61A50-000
Panel assy, back door
|
69100-61A50-000 |
— | ||
|
2
|
2
69510-85C00-000
Hinge, back door upper
|
69510-85C00-000 |
— | ||
|
3
|
3
69520-85C00-000
Hinge, rr gate lower
|
69520-85C00-000 |
— | ||
|
4
|
4
09118-08156-000 BOLT(8X25) |
09118-08156-000 |
US $19.50 |
||
|
5
|
5
09118-08156-000 BOLT(8X25) |
09118-08156-000 |
US $19.50 |
||
|
6
|
6
81851-85C00-000
Unit, back door balancer
|
81851-85C00-000 |
— | ||
|
7
|
7
81852-61A00-000
シャフト,バックドアバランサ
|
81852-61A00-000 |
— | ||
| replacement | |||||
|
7
|
7
81852-61A01-000 SHAFT,BACK DOOR BALANCER DOOR |
81852-61A01-000 |
US $3.65 |
||
|
8
|
8
09160-06107-000
Washer,6x16x1.2
|
09160-06107-000 |
— | ||
| replacements | |||||
|
8
|
8
09160-06052-000 WASHER(6.5X16X1.2)Washer (6.5x16x1.2) |
09160-06052-000 |
from US $1.28 |
||
|
8
|
8
09160-06079-000 WASHER(6.5X16X1.2) |
09160-06079-000 |
from US $0.77 |
||
|
9
|
9
08310-00063-000
Nut
|
08310-00063-000 |
— | ||
| replacements | |||||
|
9
|
9
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
9
|
9
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
|
10
|
10
08322-01083-000
WASHER
|
08322-01083-000 |
— | ||
| replacements | |||||
|
10
|
10
08322-0108B-000 WASHER |
08322-0108B-000 |
from US $0.80 |
||
|
10
|
10
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.80 |
||
|
11
|
11
83770-63A01-5ES TRIM,BACK DOORBLACK |
83770-63A01-5ES |
US $95.01 |
||
|
11
|
11
83770-62A00-5FE
TRIM,BACK DOOR
BLACK,Switzerland,Germany,Austria |
83770-62A00-5FE |
— | ||
|
12
|
12
09409-08308-5PK
クリップ(ブラック)
BLACK |
09409-08308-5PK |
— | ||
| replacement | |||||
|
12
|
12
09409-08308-5ES CLIP(BLACK)BLACK |
09409-08308-5ES |
from US $1.15 |
||
|
12
|
12
09409-08320-000 CLIPSwitzerland,Germany,Austria |
09409-08320-000 |
from US $1.15 |
||
|
13
|
13
84575-61A30-000
Glass, back dr window
|
84575-61A30-000 |
— | ||
| replacement | |||||
|
13
|
13
84575-61A60-000 GLASS,BACK DR WINDOW |
84575-61A60-000 |
US $478.72 |
||
|
14
|
14
83940-61A00-5PK GARNISH,BACK DR OUT,RBLACK |
83940-61A00-5PK |
US $60.80 |
||
|
15
|
15
83942-85C00-000
Clip, garnish
|
83942-85C00-000 |
— | ||
|
16
|
16
84621-61A00-5PK MOLDING,BACK WDO NO.1BLACK |
84621-61A00-5PK |
US $29.26 |
||
|
17
|
17
84622-56B00-5PK MOLDING,BACK WDO NO.2BLACK |
84622-56B00-5PK |
US $187.68 |
||
|
18
|
18
84626-61A00-5PK JOINT,BACK DR WDO MLDG LWRBLACK |
84626-61A00-5PK |
US $2.88 |
||
|
19
|
19
84627-61A00-5PK TRIM,BACK DOOR WINDOW OPNGBLACK |
84627-61A00-5PK |
US $124.64 |
||
|
20
|
20
84681-61A01-5PK WEATHERSTRIP,BACK DR OPNGBLACK |
84681-61A01-5PK |
US $165.68 |
||
|
21
|
21
83913-61A50-000
カバー,バックドアシーリング
|
83913-61A50-000 |
— | ||
| replacement | |||||
|
21
|
21
83911-60X52-000 COVER,DR SEALING |
83911-60X52-000 |
US $6.06 |
||
|
22
|
22
83914-85C00-000
Cover, service hole
|
83914-85C00-000 |
— | ||
