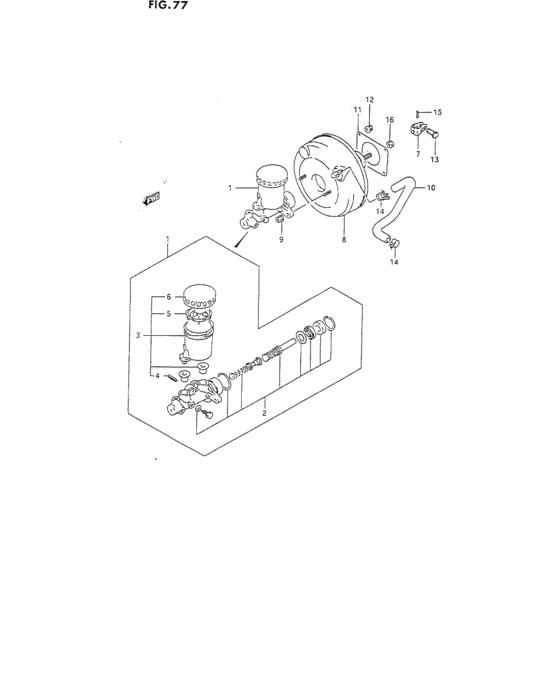

Brake master cylinder (RHD) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- transmission
- AT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51100-56B20-000
Cylinder assy,brake master
|
51100-56B20-000 |
— | ||
| replacement | |||||
|
1
|
1
51100-56B21-000
CYLINDER ASSY,BRAKE MASTER
|
51100-56B21-000 |
— | ||
|
2
|
2
51100-70841-000
Piston set,brake master
|
51100-70841-000 |
— | ||
| replacement | |||||
|
2
|
2
51100-70842-000 PISTON SET,BRAKE MASTER |
51100-70842-000 |
from US $60 |
||
|
3
|
3
51200-56B00-000 RESERVOIR,MASTER CYLINDER |
51200-56B00-000 |
US $104.88 |
||
|
4
|
4
09205-05016-000 PIN,SPRING(5X32) |
09205-05016-000 |
US $1.12 |
||
|
5
|
5
51234-60A20-000 STRAINER,MASTER CYLINDER |
51234-60A20-000 |
US $7.68 |
||
|
6
|
6
51220-60A20-000 CAP,RESERVOIR |
51220-60A20-000 |
US $17.60 |
||
|
7
|
7
51182-60A60-000
クレビス,シリンダプッシュロッド
|
51182-60A60-000 |
— | ||
| replacement | |||||
|
7
|
7
51182-77E00-000 CLEVIS,CYLINDER PUSH ROD |
51182-77E00-000 |
US $9.12 |
||
|
8
|
8
51300-56B00-000
BOOSTER ASSY,BRAKE MASTER
|
51300-56B00-000 |
— | ||
|
9
|
9
09159-08075-000 NUT |
09159-08075-000 |
US $0.91 |
||
|
10
|
10
51020-57B20-000
HOSE,BRAKE VACUUM
|
51020-57B20-000 |
— | ||
|
11
|
11
51132-82003-000 PACKING,BRAKE MASTER CYLINDER |
51132-82003-000 |
US $1.60 |
||
|
12
|
12
09159-08069-000
Nut
|
09159-08069-000 |
— | ||
| replacement | |||||
|
12
|
12
09159-08135-000 NUT |
09159-08135-000 |
from US $0.77 |
||
|
13
|
13
51811-85C00-000
Cylinder pin
|
51811-85C00-000 |
— | ||
|
14
|
14
51911-85C00-000
Clamp, return hose
|
51911-85C00-000 |
— | ||
|
15
|
15
09385-10006-000 PIN,SNAPPin |
09385-10006-000 |
from US $1.60 |
||
|
16
|
16
09140-10019-000 NUT |
09140-10019-000 |
US $9.20 |
||
