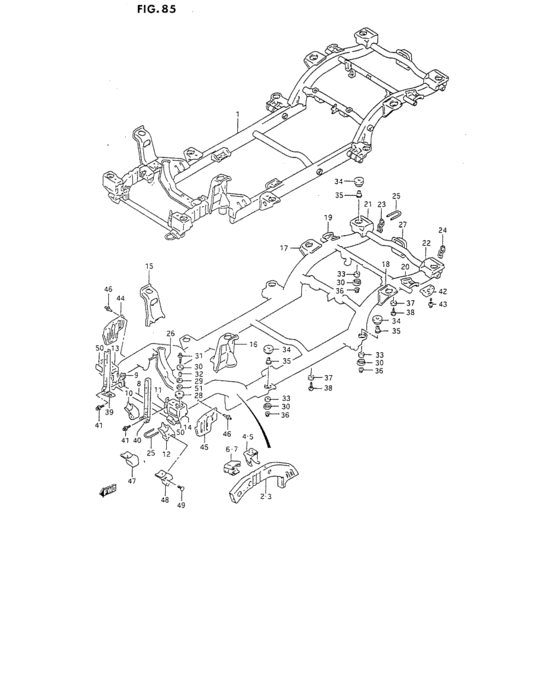

Chassis frame (3DR) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- transmission
- AT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57000-61A00-000
Chassis frame
LHD |
57000-61A00-000 |
— | ||
|
1
|
1
57000-61A60-000
Chassis frame
RHD |
57000-61A60-000 |
— | ||
|
2
|
2
57110-60A01-000
Member, side frame front
LHD |
57110-60A01-000 |
— | ||
| replacement | |||||
|
2
|
2
57110-60A21-000 MEMBER,SIDE FRAME FR,RLHD |
57110-60A21-000 |
US $397.76 |
||
|
2
|
2
57110-60A11-000
メンバ,サイドフレームフロント,ライト
RHD |
57110-60A11-000 |
— | ||
| replacement | |||||
|
2
|
2
57110-60A31-000
MEMBER,SIDE FRAME FR,R
RHD |
57110-60A31-000 |
— | ||
|
3
|
3
57160-60A02-000
Member, side frame front lh
LHD |
57160-60A02-000 |
— | ||
| replacement | |||||
|
3
|
3
57160-60A20-000 MEMBER,SIDE FRAME FR,LLHD |
57160-60A20-000 |
US $344.08 |
||
|
3
|
3
57160-60A11-000
メンバ,サイドフレームフロント,レフト
RHD |
57160-60A11-000 |
— | ||
| replacement | |||||
|
3
|
3
57160-60A30-000
MEMBER,SIDE FRAME FR,L
RHD |
57160-60A30-000 |
— | ||
|
4
|
4
57511-60A00-000
BRACKET,ENG MTG,R
|
57511-60A00-000 |
— | ||
|
5
|
5
57521-60A00-000
BRACKET,ENG MTG,L
|
57521-60A00-000 |
— | ||
|
6
|
6
57620-60A00-000
BRACKET,FR DIFF MTG,R
|
57620-60A00-000 |
— | ||
|
7
|
7
57630-60A00-000
BRACKET,FR DIFF MTG,L
|
57630-60A00-000 |
— | ||
|
8
|
8
57211-60A00-000
クロスメンバ,ファースト
|
57211-60A00-000 |
— | ||
| replacement | |||||
|
8
|
8
57211-60A20-000 CROSSMEMBER,1ST |
57211-60A20-000 |
US $104.88 |
||
|
9
|
9
57551-60A10-000
BRACKET,RDTR STAY,R
LHD |
57551-60A10-000 |
— | ||
|
9
|
9
57551-60A00-000 BRACKET,RDTR STAY,RRHD |
57551-60A00-000 |
US $14.46 |
||
|
10
|
10
57710-60A00-000
Hanger, fr spnsn arm rh
LHD |
57710-60A00-000 |
— | ||
| replacement | |||||
|
10
|
10
57710-60A10-000 HANGER,FR SPNSN ARM,RLHD |
57710-60A10-000 |
US $52.26 |
||
|
10
|
10
57710-60A10-000 HANGER,FR SPNSN ARM,RRHD |
57710-60A10-000 |
US $52.26 |
||
|
11
|
11
57561-60A00-000 BRACKET,RDTR STAY,L |
57561-60A00-000 |
US $17.37 |
||
|
12
|
12
57720-60A00-000 HANGER,FR SPNSN ARM,LLHD |
57720-60A00-000 |
US $62.93 |
||
|
12
|
12
57720-60A10-000
ハンガ,フロントサスペンションアーム,レフト
RHD |
57720-60A10-000 |
— | ||
| replacement | |||||
|
12
|
12
57720-60A00-000 HANGER,FR SPNSN ARM,LRHD |
57720-60A00-000 |
US $62.93 |
||
|
13
|
13
57310-60A01-000 BRACKET,1ST MOUNTING,R |
57310-60A01-000 |
US $100.46 |
||
|
14
|
14
57320-60A01-000 BRACKET,1ST MOUNTING,L |
57320-60A01-000 |
US $100.46 |
||
|
15
|
15
57730-56B00-000
Bracket, fr strut rh
|
57730-56B00-000 |
— | ||
| replacement | |||||
|
15
|
15
57730-56B10-000 BRACKET,FR STRUT,R |
57730-56B10-000 |
US $268.64 |
||
|
16
|
16
57740-56B00-000 BRACKET,FR STRUT,L |
57740-56B00-000 |
US $323.84 |
||
|
17
|
17
57810-56B00-000
Bracket, rr coil spring rh
|
57810-56B00-000 |
— | ||
| replacement | |||||
|
17
|
17
57810-77E00-000 BRACKET,RR COIL SPRING,R |
57810-77E00-000 |
US $69.18 |
||
|
18
|
18
57820-56B00-000
Bracket, rr coil spring lh
|
57820-56B00-000 |
— | ||
| replacement | |||||
|
18
|
18
57820-77E00-000
BRACKET,RR COIL SPRING,L
|
57820-77E00-000 |
— | ||
|
19
|
19
57831-56B00-000
BRACKET,RR SHOCK ABSORBER,R
|
57831-56B00-000 |
— | ||
|
20
|
20
57841-56B00-000
BRACKET,RR SHOCK ABSORBER,L
|
57841-56B00-000 |
— | ||
|
21
|
21
57370-60A00-000
BRACKET,4TH MOUNTING,R
|
57370-60A00-000 |
— | ||
|
22
|
22
57380-60A00-000 BRACKET,4TH MOUNTING,L |
57380-60A00-000 |
US $61.60 |
||
|
23
|
23
57481-60A00-000 BRACKET,RR BUMPER SIDE,R |
57481-60A00-000 |
US $36.80 |
||
|
24
|
24
57482-60A00-000 BRACKET,RR BUMPER SIDE,L |
57482-60A00-000 |
US $28 |
||
|
25
|
25
57941-60A00-000
HOOK,TOWING
|
57941-60A00-000 |
— | ||
|
26
|
26
57220-60A00-000
クロスメンバ,セカンド
|
57220-60A00-000 |
— | ||
| replacement | |||||
|
26
|
26
57220-60A01-000
CROSSMEMBER,2ND
|
57220-60A01-000 |
— | ||
|
27
|
27
57260-60A00-000
クロスメンバ,テール
|
57260-60A00-000 |
— | ||
| replacement | |||||
|
27
|
27
57260-60A11-000 CROSSMEMBER,TAIL |
57260-60A11-000 |
US $233.60 |
||
|
28
|
28
71514-60A00-000 CUSHION,BODY FR MTG NO.1 |
71514-60A00-000 |
US $16.67 |
||
|
29
|
29
71515-60A00-000 CUSHION,BODY FR MTG NO.2 |
71515-60A00-000 |
US $8.83 |
||
|
30
|
30
71632-83010-000
ボトム,ボディマウンチング
|
71632-83010-000 |
— | ||
| replacement | |||||
|
30
|
30
71632-83011-000 BOTTOM,BODY MOUNTING |
71632-83011-000 |
US $2.24 |
||
|
31
|
31
01570-10853-000
Bolt
|
01570-10853-000 |
— | ||
| replacement | |||||
|
31
|
31
01570-1085C-000 Bolt |
01570-1085C-000 |
US $1.68 |
||
|
32
|
32
71516-85C00-000
Collor, body front mounting
|
71516-85C00-000 |
— | ||
|
33
|
33
71512-60A00-000
クッション,ボディマウンチング,NO.2
|
71512-60A00-000 |
— | ||
| replacement | |||||
|
33
|
33
71512-60A10-000 CUSHION,BODY MTG NO.2 |
71512-60A10-000 |
US $13.60 |
||
|
34
|
34
71511-60A00-000 CUSHION,BODY MTG NO.1 |
71511-60A00-000 |
from US $17.42 |
||
|
35
|
35
71513-60A00-000 COLLAR,BODY MOUNTING |
71513-60A00-000 |
US $2.08 |
||
|
36
|
36
59119-85C00-000
Nut
|
59119-85C00-000 |
— | ||
|
37
|
37
71521-60A00-000
パッド,ボディマウンチング
|
71521-60A00-000 |
— | ||
| replacement | |||||
|
37
|
37
71521-56B00-000 PAD,BODY MOUNTING |
71521-56B00-000 |
US $11.52 |
||
|
38
|
38
09409-10302-5PK CLIP(BLACK)BLACK |
09409-10302-5PK |
US $1.28 |
||
|
39
|
39
71410-60A21-000 STAY,RADIATOR,RLHD |
71410-60A21-000 |
US $34.22 |
||
|
39
|
39
71410-60A01-000 STAY,RADIATOR,RRHD |
71410-60A01-000 |
US $45.26 |
||
|
40
|
40
71420-60A11-000 STAY,RADIATOR,L |
71420-60A11-000 |
US $55.20 |
||
|
41
|
41
01570-08203-000
Bolt
|
01570-08203-000 |
— | ||
| replacements | |||||
|
41
|
41
01570-0820B-000 Bolt |
01570-0820B-000 |
US $17.30 |
||
|
41
|
41
01570-0820A-000 BOLT |
01570-0820A-000 |
from US $0.96 |
||
|
42
|
42
71451-60A00-000 HOOK,SHIPPING RR |
71451-60A00-000 |
US $10.27 |
||
|
43
|
43
09103-12043-000 BOLT(12X20) |
09103-12043-000 |
US $1.92 |
||
|
44
|
44
72211-60A00-000
Flap,front frame side,r
|
72211-60A00-000 |
— | ||
|
45
|
45
72221-60A00-000
FLAP,FR FRAME SIDE,L
|
72221-60A00-000 |
— | ||
|
46
|
46
09409-06318-000 CLIP |
09409-06318-000 |
US $12.90 |
||
|
47
|
47
71461-60A00-000 COVER,FR SPNSN ARM HANGER,R |
71461-60A00-000 |
US $17.37 |
||
|
48
|
48
71471-60A00-000 COVER,FR SPNSN ARM HANGER,L |
71471-60A00-000 |
US $17.37 |
||
|
49
|
49
59931-85C00-000
Clip, trim lower
|
59931-85C00-000 |
— | ||
|
50
|
50
71481-60A00-000 PROTECTOR,1ST MOUNTING BRACKET |
71481-60A00-000 |
US $3.97 |
||
|
51
|
51
71517-56B01-000
スペーサ,ボディフロントマウンチング
|
71517-56B01-000 |
— | ||
| replacement | |||||
|
51
|
51
71517-56B02-000 SPACER,BODY FRONT MTG |
71517-56B02-000 |
US $2.29 |
||
