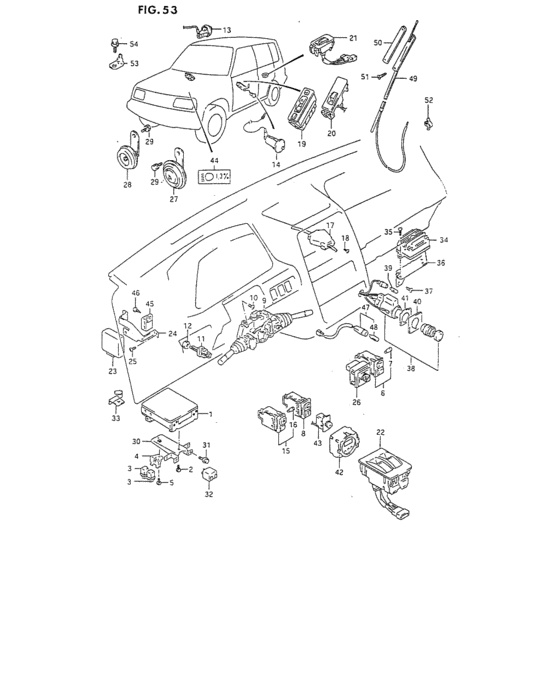

Electrical control (5DR) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- transmission
- AT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33920-59B70-000
CONTROLLER,FUEL INJECTION
|
33920-59B70-000 |
— | ||
|
1
|
1
33920-59B10-000
CONTROLLER,FUEL INJECTION
Switzerland |
33920-59B10-000 |
— | ||
|
2
|
2
02142-06123-000
Screw
|
02142-06123-000 |
— | ||
| replacements | |||||
|
2
|
2
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
||
|
2
|
2
02142-0612A-000 SCREW |
02142-0612A-000 |
from US $0.80 |
||
|
3
|
3
38850-50F50-000 RELAY ASSY,MAIN/FUEL PUMP |
38850-50F50-000 |
from US $34 |
||
|
4
|
4
33795-56B12-000
BRACKET,RELAY
|
33795-56B12-000 |
— | ||
|
5
|
5
02142-06123-000
Screw
|
02142-06123-000 |
— | ||
| replacements | |||||
|
5
|
5
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
||
|
5
|
5
02142-0612A-000 SCREW |
02142-0612A-000 |
from US $0.80 |
||
|
6
|
6
37370-86000-000
SWITCH ASSY,RR WIPER&WASHER
|
37370-86000-000 |
— | ||
|
7
|
7
09471-12135-000 BULB(CLEAR) |
09471-12135-000 |
US $57 |
||
|
8
|
8
37280-86000-000
SWITCH ASSY,RR FOG LAMP
|
37280-86000-000 |
— | ||
|
9
|
9
37400-61A21-000
SWITCH ASSY,COMB
|
37400-61A21-000 |
— | ||
|
9
|
9
37400-60A21-000
SWITCH ASSY,COMB
|
37400-60A21-000 |
— | ||
|
10
|
10
02112-05123-000
Screw 5x12
|
02112-05123-000 |
— | ||
| replacement | |||||
|
10
|
10
02112-0512A-000 SCREW |
02112-0512A-000 |
from US $0.80 |
||
|
11
|
11
37740-60D01-000 SWITCH ASSY,STOP LAMP |
37740-60D01-000 |
US $42.40 |
||
|
12
|
12
09140-10043-000 NUTNut, tie rod rh thread |
09140-10043-000 |
from US $0.91 |
||
|
13
|
13
37670-60A02-000 SWITCH ASSY,DOOR |
37670-60A02-000 |
from US $12.76 |
||
|
14
|
14
37670-60A02-000 SWITCH ASSY,DOOR |
37670-60A02-000 |
from US $12.76 |
||
|
15
|
15
37860-60A00-000 SWITCH ASSY,RR DEFOGGER |
37860-60A00-000 |
from US $28.84 |
||
|
16
|
16
09471-12135-000 BULB(CLEAR) |
09471-12135-000 |
US $57 |
||
|
17
|
17
37870-60A01-000 SWITCH ASSY,HTR FAN MOTOR |
37870-60A01-000 |
US $32.02 |
||
|
18
|
18
03112-04083-000
Screw
|
03112-04083-000 |
— | ||
| replacement | |||||
|
18
|
18
03112-0408B-000 SCREW |
03112-0408B-000 |
US $0.88 |
||
|
19
|
19
37990-56B01-000
Switch, power window main
JLX |
37990-56B01-000 |
— | ||
| replacement | |||||
|
19
|
19
37990-56B51-H2H
SWITCH ASSY,P/W MASTER
JLX |
37990-56B51-H2H |
— | ||
|
20
|
20
37995-56B11-000
Switch, power window sub
JLX |
37995-56B11-000 |
— | ||
| replacement | |||||
|
20
|
20
37995-56B60-H2H
SWITCH ASSY,P/W SUB
JLX |
37995-56B60-H2H |
— | ||
|
21
|
21
37995-56B01-000
Switch, power window rear
JLX |
37995-56B01-000 |
— | ||
| replacement | |||||
|
21
|
21
37995-56B50-H2H
SWITCH ASSY,P/W SUB
JLX |
37995-56B50-H2H |
— | ||
|
22
|
22
37993-56B01-000
Switch, power window cent
JLX |
37993-56B01-000 |
— | ||
| replacement | |||||
|
22
|
22
37993-56B50-H2H
SWITCH ASSY,P/W CTR
JLX |
37993-56B50-H2H |
— | ||
|
23
|
23
38700-56B00-000 CONTROLLER ASSY,PWR DR LOCKJLX |
38700-56B00-000 |
US $183.63 |
||
|
24
|
24
38663-56B01-000
BRACKET,DR LOCK CONT,L
JLX |
38663-56B01-000 |
— | ||
|
24
|
24
38663-56B10-000 BRACKET,DR LOCK CONT,RJLX: |
38663-56B10-000 |
US $3.46 |
||
|
25
|
25
02142-06123-000
Screw
JLX |
02142-06123-000 |
— | ||
| replacements | |||||
|
25
|
25
02142-0612B-000 SCREWJLX |
02142-0612B-000 |
from US $0.76 |
||
|
25
|
25
02142-0612A-000 SCREWJLX |
02142-0612A-000 |
from US $0.80 |
||
|
26
|
26
37950-60A00-000
SWITCH ASSY,MIRROR
W/REMO-CON MIRROR |
37950-60A00-000 |
— | ||
|
27
|
27
38500-85C10-000
Horn assy, low pitched
JX,JLX |
38500-85C10-000 |
— | ||
|
28
|
28
38500-85C00-000
Horn assy, high pitched
JLX |
38500-85C00-000 |
— | ||
|
29
|
29
01570-08123-000
Bolt
JX |
01570-08123-000 |
— | ||
| replacement | |||||
|
29
|
29
01570-0812A-000 BoltJX |
01570-0812A-000 |
US $14.40 |
||
|
30
|
30
38665-60A00-000
BRACKET,RLY&ECU
|
38665-60A00-000 |
— | ||
|
30
|
30
38665-56B00-000
Bracket, relay
Germany:W/SUN ROOF |
38665-56B00-000 |
— | ||
|
31
|
31
01550-06103-000
Bolt, front
|
01550-06103-000 |
— | ||
| replacements | |||||
|
31
|
31
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
31
|
31
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
32
|
32
38610-85C00-000
Relay assy, turn & 4 way
|
38610-85C00-000 |
— | ||
|
33
|
33
36998-60A00-000
クランプ,ワイヤ
|
36998-60A00-000 |
— | ||
|
34
|
34
38660-82202-000
Controller, dim-dip
|
38660-82202-000 |
— | ||
|
35
|
35
02142-06123-000
Screw
|
02142-06123-000 |
— | ||
| replacements | |||||
|
35
|
35
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
||
|
35
|
35
02142-0612A-000 SCREW |
02142-0612A-000 |
from US $0.80 |
||
|
36
|
36
33947-56B00-000
Bracket, dim-dip controller
|
33947-56B00-000 |
— | ||
|
37
|
37
02142-06123-000
Screw
|
02142-06123-000 |
— | ||
| replacements | |||||
|
37
|
37
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
||
|
37
|
37
02142-0612A-000 SCREW |
02142-0612A-000 |
from US $0.80 |
||
|
38
|
38
39400-85C00-000
Lighter assy, cgarette
|
39400-85C00-000 |
— | ||
|
39
|
39
09471-85C00-000
Bulb
|
09471-85C00-000 |
— | ||
|
40
|
40
39471-60A00-000 RIM,CIGARETTE |
39471-60A00-000 |
US $4.23 |
||
|
41
|
41
39472-82000-000 WASHER,CIGARETTE LIGHTER |
39472-82000-000 |
US $1.25 |
||
|
42
|
42
34600-60A00-000
CLOCK ASSY
|
34600-60A00-000 |
— | ||
|
43
|
43
35180-70A00-000
Switch assy,headlamp leveling
Germany |
35180-70A00-000 |
— | ||
|
44
|
44
35186-70A01-000
LABEL,HEADLAMP INITIAL AIMING
,2 |
35186-70A01-000 |
— | ||
|
45
|
45
38590-60B20-000
Buzzer assy, warning
|
38590-60B20-000 |
— | ||
| replacement | |||||
|
45
|
45
38590-77E10-000 CONTROLLER,WARNING BUZZER |
38590-77E10-000 |
US $138 |
||
|
46
|
46
03541-05163-000
Screw
|
03541-05163-000 |
— | ||
| replacement | |||||
|
46
|
46
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.68 |
||
|
47
|
47
36550-85C00-000
Lamp assy, ashtray illum.
AT |
36550-85C00-000 |
— | ||
|
48
|
48
36551-85C00-000
Bulb
|
36551-85C00-000 |
— | ||
|
49
|
49
39250-85C00-000
Antenna assy
EXC/Germany |
39250-85C00-000 |
— | ||
|
50
|
50
39262-60A00-000
COVER,ANT HOLE
Germany |
39262-60A00-000 |
— | ||
|
51
|
51
39251-60A00-000
スクリュ,アンテナ
|
39251-60A00-000 |
— | ||
| replacement | |||||
|
51
|
51
09129-04003-000 SCREW(4X12) |
09129-04003-000 |
US $15.10 |
||
|
52
|
52
39283-85C00-000
Clamp, cable
EXC/Germany |
39283-85C00-000 |
— | ||
|
53
|
53
36865-82000-000 TERMINAL,GND |
36865-82000-000 |
US $2.80 |
||
|
54
|
54
01550-06103-000
Bolt, front
|
01550-06103-000 |
— | ||
| replacements | |||||
|
54
|
54
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
54
|
54
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
