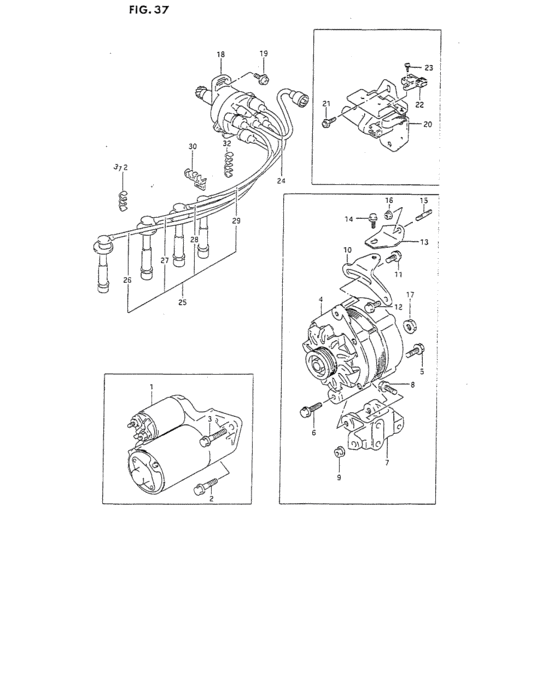

Engine electrical (ENGINE ELECTRICAL) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- transmission
- AT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-85C00-000
Motor assy, starting
|
31100-85C00-000 |
— | ||
|
2
|
2
01550-08353-000
Bolt, rear
|
01550-08353-000 |
— | ||
| replacements | |||||
|
2
|
2
01550-0835B-000 BOLT |
01550-0835B-000 |
from US $1.12 |
||
|
2
|
2
01550-0835A-000 BOLT |
01550-0835A-000 |
from US $1.06 |
||
|
3
|
3
01550-08503-000
Bolt
|
01550-08503-000 |
— | ||
| replacement | |||||
|
3
|
3
01550-0850B-000 Bolt |
01550-0850B-000 |
from US $1.22 |
||
|
4
|
4
31400-85C00-000
Generator assy
|
31400-85C00-000 |
— | ||
|
5
|
5
01550-08303-000
Bolt
|
01550-08303-000 |
— | ||
| replacements | |||||
|
5
|
5
01550-0830B-000 Bolt |
01550-0830B-000 |
from US $1.06 |
||
|
5
|
5
01550-0830A-000 BOLTBolt, mount oil seal cover |
01550-0830A-000 |
from US $1.12 |
||
|
6
|
6
01550-08353-000
Bolt, rear
|
01550-08353-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0835B-000 BOLT |
01550-0835B-000 |
from US $1.12 |
||
|
6
|
6
01550-0835A-000 BOLT |
01550-0835A-000 |
from US $1.06 |
||
|
7
|
7
17911-71C01-000
ブラケット,ジェネレータ
|
17911-71C01-000 |
— | ||
| replacement | |||||
|
7
|
7
17911-71C02-000 BRACKET,GENERATOR |
17911-71C02-000 |
US $52.99 |
||
|
8
|
8
01550-08253-000
Bolt, rear
|
01550-08253-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0825B-000 BOLT |
01550-0825B-000 |
from US $0.96 |
||
|
8
|
8
01550-0825A-000 BOLT |
01550-0825A-000 |
from US $1.06 |
||
|
9
|
9
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
9
|
9
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
10
|
10
17921-57B00-000 ARM,GENERATOR ADJUST |
17921-57B00-000 |
US $13.69 |
||
|
11
|
11
09118-08107-000 BOLT(8X25) |
09118-08107-000 |
US $1.12 |
||
|
12
|
12
01550-08203-000
Bolt
|
01550-08203-000 |
— | ||
| replacements | |||||
|
12
|
12
01550-0820B-000 Bolt |
01550-0820B-000 |
from US $0.91 |
||
|
12
|
12
01550-0820A-000 BOLTBolt, funnel bracket |
01550-0820A-000 |
from US $0.96 |
||
|
13
|
13
17926-56B00-000 REINFORCEMENT,GEN ADJ ARM |
17926-56B00-000 |
US $12.32 |
||
|
14
|
14
01550-08163-000
Bolt, holder
|
01550-08163-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0816B-000 BOLT |
01550-0816B-000 |
from US $0.91 |
||
|
14
|
14
01550-0816A-000 BOLTBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
|
15
|
15
01421-08163-000
Bolt, stud
|
01421-08163-000 |
— | ||
| replacement | |||||
|
15
|
15
01421-0816A-000 BOLT,STUD |
01421-0816A-000 |
from US $1.12 |
||
|
16
|
16
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
16
|
16
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
17
|
17
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
17
|
17
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
18
|
18
33100-58B10-000 DISTRIBUTOR ASSY |
33100-58B10-000 |
US $594.88 |
||
|
19
|
19
09138-08003-000 SCREW(8X30) |
09138-08003-000 |
from US $1.49 |
||
|
20
|
20
33410-56B10-000
COIL ASSY,IGNITION
|
33410-56B10-000 |
— | ||
|
21
|
21
09129-06002-000 SCREW(6X12) |
09129-06002-000 |
US $0.96 |
||
|
22
|
22
33370-54A50-000 IGNITER ASSY,ESA |
33370-54A50-000 |
US $422.40 |
||
|
23
|
23
33435-54A50-000 SCREW,IGNITER |
33435-54A50-000 |
US $2.10 |
||
|
24
|
24
33710-58B20-000 CORD,HT NO.1 |
33710-58B20-000 |
US $15.04 |
||
|
25
|
25
33705-57B20-000
Cord set, high tension
|
33705-57B20-000 |
— | ||
| replacements | |||||
|
25
|
25
33700-58B21-000
Cord set,high tension
|
33700-58B21-000 |
— | ||
|
25
|
25
33705-57B21-000 CORD SET,HIGH TENSION |
33705-57B21-000 |
US $120.34 |
||
|
26
|
26
33730-57B20-000
Cord, high tension no.2
|
33730-57B20-000 |
— | ||
| replacement | |||||
|
26
|
26
33730-57B21-000 CORD,HIGH TENSION NO.2 |
33730-57B21-000 |
US $28 |
||
|
27
|
27
33740-57B20-000
Cord, high tension no.3
|
33740-57B20-000 |
— | ||
| replacement | |||||
|
27
|
27
33740-57B21-000 CORD,HIGH TENSION NO.3 |
33740-57B21-000 |
US $26.40 |
||
|
28
|
28
33750-57B20-000
Cord, high tension no.4
|
33750-57B20-000 |
— | ||
| replacement | |||||
|
28
|
28
33750-57B21-000 CORD,HIGH TENSION NO.4 |
33750-57B21-000 |
US $25.60 |
||
|
29
|
29
33760-57B20-000
Cord, high tension no.5
|
33760-57B20-000 |
— | ||
| replacement | |||||
|
29
|
29
33760-57B21-000 CORD,HIGH TENSION NO.5 |
33760-57B21-000 |
US $25.60 |
||
|
30
|
30
33884-86510-000 CLAMP |
33884-86510-000 |
US $2.08 |
||
|
31
|
31
09408-00034-000
クリップ
>09408-00035 |
09408-00034-000 |
— | ||
| replacement | |||||
|
31
|
31
09408-00035-000 CLIPClamp >09408-00035 |
09408-00035-000 |
US $17.70 |
||
|
32
|
32
09408-00035-000 CLIPClamp |
09408-00035-000 |
US $17.70 |
||
