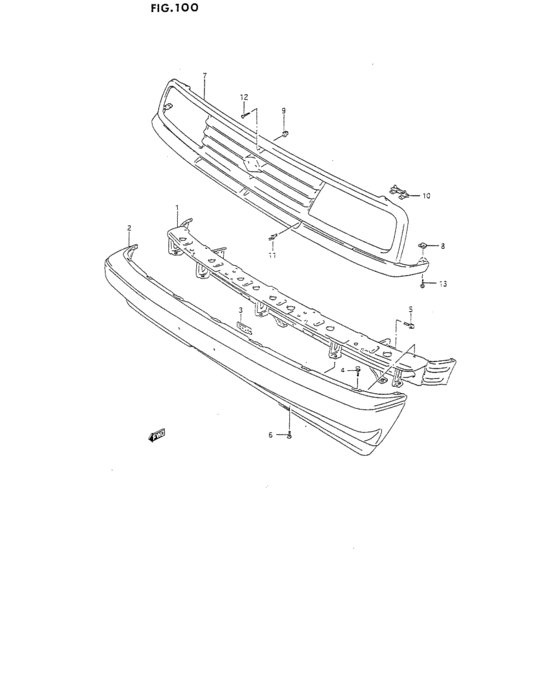

Front bumper and grille (3DR) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- transmission
- AT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71701-60A00-000
MEMBER ASSY,FR BUMPER
|
71701-60A00-000 |
— | ||
|
2
|
2
71711-60A40-5PK BUMPER,FR(BLACK)BLACK,JX |
71711-60A40-5PK |
US $1,158.40 |
||
|
2
|
2
71711-61A60-799 BUMPER,FR(PRIMARY)PRIMARY COAT,JLX (PAINT TO MATCH) |
71711-61A60-799 |
US $503.36 |
||
|
3
|
3
71771-60A00-000 RETAINER,FR LICENSE PLATE |
71771-60A00-000 |
US $4.16 |
||
|
4
|
4
59972-85C00-000
Bolt
|
59972-85C00-000 |
— | ||
|
5
|
5
01550-08123-000
Bolt
|
01550-08123-000 |
— | ||
| replacements | |||||
|
5
|
5
01550-0812B-000 BoltPlug, drain |
01550-0812B-000 |
from US $0.96 |
||
|
5
|
5
01550-0812A-000 BOLT |
01550-0812A-000 |
from US $0.91 |
||
|
6
|
6
02142-06123-000
Screw
|
02142-06123-000 |
— | ||
| replacements | |||||
|
6
|
6
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
||
|
6
|
6
02142-0612A-000 SCREW |
02142-0612A-000 |
from US $0.80 |
||
|
7
|
7
72111-60A30-000 GRILLE,FRPAINT TO MATCH |
72111-60A30-000 |
US $312.80 |
||
|
8
|
8
59915-85C00-000
Nut, fr grille side clip
|
59915-85C00-000 |
— | ||
|
9
|
9
09148-05018-000 NUT |
09148-05018-000 |
from US $0.63 |
||
|
10
|
10
72115-60A00-000 CLIP,FR GRILLE |
72115-60A00-000 |
from US $1.60 |
||
|
11
|
11
09409-07313-000 CLIP |
09409-07313-000 |
from US $1.28 |
||
|
12
|
12
03212-05253-000
Tapping screw
|
03212-05253-000 |
— | ||
| replacement | |||||
|
12
|
12
03212-0525B-000 SCREW |
03212-0525B-000 |
US $0.80 |
||
|
13
|
13
59941-85C00-000
Screw
|
59941-85C00-000 |
— | ||
