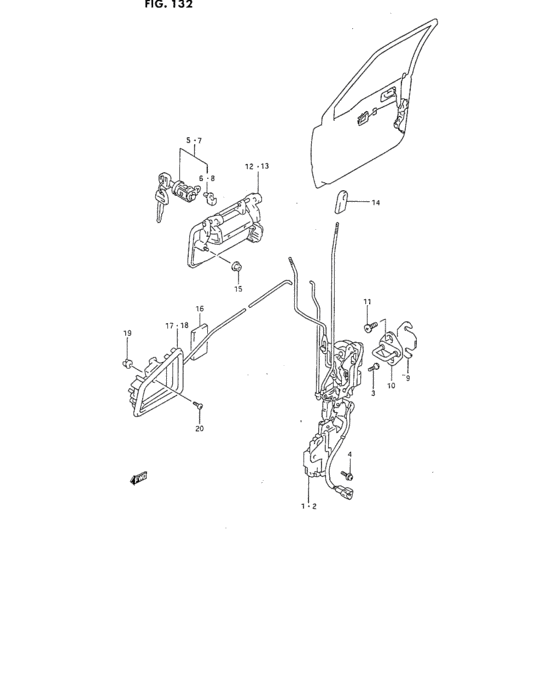

Front door lock (3DR) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- transmission
- AT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82201-65A00-000 LATCH ASSY,FR DR,RJX |
82201-65A00-000 |
US $87.58 |
||
|
1
|
1
82201-66A00-000 LATCH ASSY,FR DR,RJLX |
82201-66A00-000 |
US $358.80 |
||
|
2
|
2
82202-65A00-000 LATCH ASSY,FR DR,LJX |
82202-65A00-000 |
US $182.40 |
||
|
2
|
2
82202-66A00-000 LATCH ASSY,FR DR,LJLX |
82202-66A00-000 |
US $358.80 |
||
|
3
|
3
02122-56163-000
SCREW
|
02122-56163-000 |
— | ||
| replacement | |||||
|
3
|
3
02122-5616B-000 SCREW |
02122-5616B-000 |
US $0.80 |
||
|
4
|
4
09137-08006-000
Screw
JLX |
09137-08006-000 |
— | ||
| replacements | |||||
|
4
|
4
09137-08011-000 SCREW(8X18)JLX |
09137-08011-000 |
US $1.44 |
||
|
4
|
4
09137-08004-000 SCREW(8X18)JLX |
09137-08004-000 |
from US $0.90 |
||
| replacement | |||||
|
4
|
4
09137-08011-000 SCREW(8X18)JLX |
09137-08011-000 |
US $1.44 |
||
|
5
|
5
82200-60831-000 CYLINDER,FR DR LOCK,R |
82200-60831-000 |
US $51.15 |
||
|
6
|
6
82277-60A00-000 HOLDER |
82277-60A00-000 |
US $4.38 |
||
|
7
|
7
82200-60841-000 CYLINDER,FR DR LOCK,L |
82200-60841-000 |
US $76.80 |
||
|
8
|
8
82287-60A00-000 HOLDER |
82287-60A00-000 |
US $1.60 |
||
|
9
|
9
78199-78000-000 SPACER,DOOR LOCK STRIKER |
78199-78000-000 |
US $1.60 |
||
|
10
|
10
82610-60A00-000
ストライカ,ドアラッチ
|
82610-60A00-000 |
— | ||
| replacement | |||||
|
10
|
10
82610-60A01-000 STRIKER,FR DOOR LATCH |
82610-60A01-000 |
US $21.60 |
||
|
11
|
11
09137-08004-000 SCREW(8X18) |
09137-08004-000 |
from US $0.90 |
||
| replacement | |||||
|
11
|
11
09137-08011-000 SCREW(8X18) |
09137-08011-000 |
US $1.44 |
||
|
12
|
12
82810-85C00-5PK
Handle, out rh
BLACK,JX |
82810-85C00-5PK |
— | ||
|
12
|
12
82810-85C00-0DG
Handle, door out rh
BLACK,JLX |
82810-85C00-0DG |
— | ||
|
12
|
12
82810-85C00-0FT
Handle, door out rh
RED,JLX |
82810-85C00-0FT |
— | ||
|
12
|
12
82810-85C00-0VP
Handle, door out rh
GREEN,JLX |
82810-85C00-0VP |
— | ||
|
12
|
12
82810-85C00-1FG
Handle, door out rh
BLUE,JLX |
82810-85C00-1FG |
— | ||
|
12
|
12
82810-85C00-1PU
Handle, door out rh
MAGENTA,JLX |
82810-85C00-1PU |
— | ||
|
12
|
12
82810-85C00-1PV
Handle, door out rh
GREEN,JLX |
82810-85C00-1PV |
— | ||
|
12
|
12
82810-85C00-15P
Handle, door out rh
RED,JLX |
82810-85C00-15P |
— | ||
|
12
|
12
82810-85C00-26U
Handle, door out rh
WHITE,JLX |
82810-85C00-26U |
— | ||
|
12
|
12
82810-85C00-38B
Handle, door out rh
GRAY,JLX |
82810-85C00-38B |
— | ||
|
13
|
13
82820-85C00-5PK
Handle, out lh
BLACK,JX |
82820-85C00-5PK |
— | ||
|
13
|
13
82820-85C00-0DG
Handle, door out lh
BLACK,JLX |
82820-85C00-0DG |
— | ||
|
13
|
13
82820-85C00-0FT
Handle, door out lh
RED,JLX |
82820-85C00-0FT |
— | ||
|
13
|
13
82820-85C00-0VP
Handle, door out lh
GREEN,JLX |
82820-85C00-0VP |
— | ||
|
13
|
13
82820-85C00-1FG
Handle, door out lh
BLUE,JLX |
82820-85C00-1FG |
— | ||
|
13
|
13
82820-85C00-1PU
Handle, door out lh
MAGENTA,JLX |
82820-85C00-1PU |
— | ||
|
13
|
13
82820-85C00-1PV
Handle, door out lh
GREEN,JLX |
82820-85C00-1PV |
— | ||
|
13
|
13
82820-85C00-15P
Handle, door out lh
RED,JLX |
82820-85C00-15P |
— | ||
|
13
|
13
82820-85C00-26U
Handle, door out lh
WHITE,JLX |
82820-85C00-26U |
— | ||
|
14
|
14
82973-60A01-5ES
Knob, inside handle
BLACK |
82973-60A01-5ES |
— | ||
| replacement | |||||
|
14
|
14
82973-60A01-5PK
KNOB,FR DR INSIDE LOCK
BLACK |
82973-60A01-5PK |
— | ||
|
15
|
15
08316-20063-000
Nut
|
08316-20063-000 |
— | ||
| replacement | |||||
|
15
|
15
08316-2006A-000 NUT |
08316-2006A-000 |
from US $0.76 |
||
|
16
|
16
77591-75000-000 PAD |
77591-75000-000 |
US $2.28 |
||
|
17
|
17
83110-85C00-5ES
Handle, door inside rh
BLACK |
83110-85C00-5ES |
— | ||
|
18
|
18
83110-85C00-5ES
Handle, door inside rh
BLACK |
83110-85C00-5ES |
— | ||
|
19
|
19
09148-06007-000 NUT |
09148-06007-000 |
from US $0.86 |
||
|
20
|
20
03121-05163-000
Screw
|
03121-05163-000 |
— | ||
| replacement | |||||
|
20
|
20
03121-0516A-000 SCREW |
03121-0516A-000 |
from US $0.80 |
||
