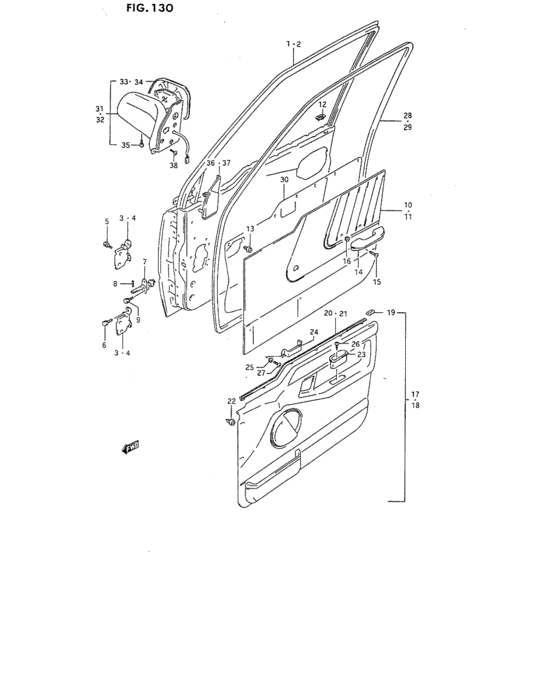

Front door panel (3DR) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- transmission
- AT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
68001-66A10-000
パネルアッシ,フロントドア,ライト
|
68001-66A10-000 |
— | ||
| replacement | |||||
|
1
|
1
68001-66831-000 PANEL ASSY,FRONT DOOR,R |
68001-66831-000 |
US $1,764 |
||
|
2
|
2
68002-66A10-000
パネルアッシ,フロントドア,レフト
|
68002-66A10-000 |
— | ||
| replacement | |||||
|
2
|
2
68002-66831-000 PANEL ASSY,FRONT DOOR,L |
68002-66831-000 |
US $1,764 |
||
|
3
|
3
69310-85C00-000
Hinge, door no.1, inferior l/i
UPPER RH AND LOWER L |
69310-85C00-000 |
— | ||
|
4
|
4
69340-85C00-000
Hinge, door no.2, inferior l/d
UPPER LH AND LOWER R |
69340-85C00-000 |
— | ||
|
5
|
5
09118-08156-000 BOLT(8X25) |
09118-08156-000 |
US $19.50 |
||
|
6
|
6
01570-08203-000
Bolt
|
01570-08203-000 |
— | ||
| replacements | |||||
|
6
|
6
01570-0820B-000 Bolt |
01570-0820B-000 |
US $17.30 |
||
|
6
|
6
01570-0820A-000 BOLT |
01570-0820A-000 |
from US $0.96 |
||
|
7
|
7
81810-56B00-000
ストップ,フロントドアオープン
|
81810-56B00-000 |
— | ||
| replacement | |||||
|
7
|
7
81810-56B01-000 STOP,FRONT DOOR OPEN |
81810-56B01-000 |
US $32.02 |
||
|
8
|
8
81831-70B00-000 PIN,DOOR OPEN STOPPER BODY |
81831-70B00-000 |
US $1.60 |
||
|
9
|
9
01580-06163-000
Bolt
|
01580-06163-000 |
— | ||
| replacement | |||||
|
9
|
9
01580-0616A-000 BOLT |
01580-0616A-000 |
from US $0.96 |
||
|
10
|
10
83710-60A10-5FE TRIM,FRONT DOOR,RBLACK,JX |
83710-60A10-5FE |
from US $85.84 |
||
|
11
|
11
83730-60A10-5FE TRIM,FRONT DOOR,LBLACK,JX |
83730-60A10-5FE |
US $227.20 |
||
|
12
|
12
83795-60A00-5ES CAP,INSIDE LOCK KNOBBLACK,JX |
83795-60A00-5ES |
US $3.04 |
||
|
13
|
13
09409-08320-000 CLIPJX |
09409-08320-000 |
from US $1.15 |
||
|
14
|
14
84450-82000-5ES ARMREST,FR DRJX |
84450-82000-5ES |
US $57.01 |
||
|
15
|
15
09148-06007-000 NUTJX |
09148-06007-000 |
from US $0.86 |
||
|
16
|
16
03241-06253-000
スクリュ
JX |
03241-06253-000 |
— | ||
| replacement | |||||
|
16
|
16
03241-0625A-000 SCREWJX |
03241-0625A-000 |
from US $1.87 |
||
|
17
|
17
83701-85C10-5FE
Trim, door rh
BLACK,JLX |
83701-85C10-5FE |
— | ||
|
18
|
18
83702-85C10-5FE
Trim, door lh
BLACK,JLX |
83702-85C10-5FE |
— | ||
|
19
|
19
83723-85C00-5ES
Cap, dr inside lock knob
BLACK,JLX |
83723-85C00-5ES |
— | ||
|
20
|
20
83721-61A00-000 WEATHERSTRIP,FR DR INR,RJLX |
83721-61A00-000 |
US $70.40 |
||
|
21
|
21
83741-61A00-000 WEATHERSTRIP,FR DR INR,LJLX |
83741-61A00-000 |
US $70.40 |
||
|
22
|
22
09409-08320-000 CLIPJLX |
09409-08320-000 |
from US $1.15 |
||
|
23
|
23
84481-60A00-5ES CASE,DR INS PULL HANDLEBLACK,JLX |
84481-60A00-5ES |
US $28.80 |
||
|
24
|
24
84482-60A01-000
BRACKET,DR INSIDE PULL HANDLE
JLX |
84482-60A01-000 |
— | ||
|
25
|
25
09148-06007-000 NUTJLX |
09148-06007-000 |
from US $0.86 |
||
|
26
|
26
03141-04123-000
Screw
JLX |
03141-04123-000 |
— | ||
| replacement | |||||
|
26
|
26
03142-0412B-000 SCREWJLX |
03142-0412B-000 |
from US $0.80 |
||
|
27
|
27
03241-06163-000
スクリュ
JLX |
03241-06163-000 |
— | ||
| replacement | |||||
|
27
|
27
03241-0616C-000 SCREWJLX |
03241-0616C-000 |
from US $0.76 |
||
|
28
|
28
84641-65A01-000
ウェザストリップ,フロントドアオープニング,ライト
|
84641-65A01-000 |
— | ||
| replacement | |||||
|
28
|
28
84641-65A02-000 WEATHERSTRIP,FR DR OPNG,R |
84641-65A02-000 |
US $152 |
||
|
29
|
29
84651-65A01-000
ウェザストリップ,フロントドアオープニング,レフト
|
84651-65A01-000 |
— | ||
| replacement | |||||
|
29
|
29
84651-65A02-000 WEATHERSTRIP,FR DR OPNG,L |
84651-65A02-000 |
US $152 |
||
|
30
|
30
83911-60X50-000
カバー,ドアシーリング,600X1200
|
83911-60X50-000 |
— | ||
| replacement | |||||
|
30
|
30
83911-60X52-000 COVER,DR SEALING |
83911-60X52-000 |
US $6.06 |
||
|
31
|
31
84701-62A00-5PK
Mirror, out rr view rh
BLACK,MANUAL,Germany:JX |
84701-62A00-5PK |
— | ||
| replacement | |||||
|
31
|
31
84701-62A20-5PK MIRROR ASSY,RR VIEW,RBLACK,MANUAL,Germany:JX |
84701-62A20-5PK |
US $196.88 |
||
|
31
|
31
84701-85C10-0DG
Mirror, out rr view rh
BLACK,REMOCON,LHD:JLX |
84701-85C10-0DG |
— | ||
|
31
|
31
84701-85C10-0FT
Mirror, out rr view rh
RED,REMOCON,LHD:JLX |
84701-85C10-0FT |
— | ||
|
31
|
31
84701-85C10-0VP
Mirror, out rr view rh
GREEN,REMOCON,LHD:JLX |
84701-85C10-0VP |
— | ||
|
31
|
31
84701-85C10-1FG
Mirror, out rr view rh
BLUE,REMOCON,LHD:JLX |
84701-85C10-1FG |
— | ||
|
31
|
31
84701-85C10-1PU
Mirror, out rr view rh
MAGENTA,REMOCON,LHD:JLX |
84701-85C10-1PU |
— | ||
|
31
|
31
84701-85C10-1PV
Mirror, out rr view rh
GREEN,REMOCON,LHD:JLX |
84701-85C10-1PV |
— | ||
|
31
|
31
84701-85C10-15P
Mirror, out rr view rh
RED,REMOCON,LHD:JLX |
84701-85C10-15P |
— | ||
|
31
|
31
84701-85C10-26U
Mirror, out rr view rh
WHITE,REMOCON,LHD:JLX |
84701-85C10-26U |
— | ||
|
31
|
31
84701-85C10-38B
Mirror, out rr view rh
GRAY,REMOCON,LHD:JLX |
84701-85C10-38B |
— | ||
|
31
|
31
84701-61A10-5PK
Mirror, out rr view rh
REMOCON,Germany |
84701-61A10-5PK |
— | ||
| replacement | |||||
|
31
|
31
84701-61A30-5PK
MIRROR ASSY,RR VIEW,R
REMOCON,Germany |
84701-61A30-5PK |
— | ||
|
32
|
32
84702-62A00-5PK
Mirror, out rr view lh
MANUAL,Germany:JX |
84702-62A00-5PK |
— | ||
| replacement | |||||
|
32
|
32
84702-62A20-5PK MIRROR ASSY,RR VIEW,LMANUAL,Germany:JX |
84702-62A20-5PK |
US $196.88 |
||
|
32
|
32
84702-85C10-0DG
Mirror, out rr view lh
BLACK,REMOCON,LHD:JLX |
84702-85C10-0DG |
— | ||
|
32
|
32
84702-85C10-0FT
Mirror, out rr view lh
RED,REMOCON,LHD:JLX |
84702-85C10-0FT |
— | ||
|
32
|
32
84702-85C10-0VP
Mirror, out rr view lh
GREEN,REMOCON,LHD:JLX |
84702-85C10-0VP |
— | ||
|
32
|
32
84702-85C10-1FG
Mirror, out rr view lh
BLUE,REMOCON,LHD:JLX |
84702-85C10-1FG |
— | ||
|
32
|
32
84702-85C10-1PU
Mirror, out rr view lh
MAGENTA,REMOCON,LHD:JLX |
84702-85C10-1PU |
— | ||
|
32
|
32
84702-85C10-1PV
Mirror, out rr view lh
GREENREMOCON,LHD:JLX |
84702-85C10-1PV |
— | ||
|
32
|
32
84702-85C10-15P
Mirror, out rr view lh
RED,REMOCON,LHD:JLX |
84702-85C10-15P |
— | ||
|
32
|
32
84702-85C10-26U
Mirror, out rr view lh
WHITE,REMOCON,LHD:JLX |
84702-85C10-26U |
— | ||
|
32
|
32
84702-85C10-38B
Mirror, out rr view lh
GRAY,REMOCON,LHD:JLX |
84702-85C10-38B |
— | ||
|
32
|
32
84702-61A10-5PK
Mirror, out rr view lh
REMOCON,Germany |
84702-61A10-5PK |
— | ||
| replacement | |||||
|
32
|
32
84702-61A30-5PK
Mirror assy,out rear view,l
REMOCON,Germany |
84702-61A30-5PK |
— | ||
|
33
|
33
84720-61A00-000 MIRROR S/ASSY,OUT RR VIEW,RGermany:JX |
84720-61A00-000 |
US $50.42 |
||
|
33
|
33
84720-85C10-000
Mirror, rh
LHD:JLX |
84720-85C10-000 |
— | ||
|
33
|
33
84720-61A10-000 MIRROR S/ASSY,OUT RR VIEW,R |
84720-61A10-000 |
US $131.38 |
||
|
34
|
34
84760-61A00-000 MIRROR S/ASSY,OUT RR VIEW,LGermany:JX |
84760-61A00-000 |
US $53.20 |
||
|
34
|
34
84760-85C10-000
Mirror, lh
LHD:JLX |
84760-85C10-000 |
— | ||
|
34
|
34
84760-61A10-000 MIRROR S/ASSY,OUT RR VIEW,L |
84760-61A10-000 |
US $264 |
||
|
35
|
35
03511-04103-000
Tapping screw
|
03511-04103-000 |
— | ||
| replacement | |||||
|
35
|
35
03511-0410A-000 SCREW |
03511-0410A-000 |
from US $2.40 |
||
|
36
|
36
84750-85C00-5PK
Garnish, sash brkt inr rh
BLACK |
84750-85C00-5PK |
— | ||
|
37
|
37
84790-85C00-5PK
Garnish, sash brkt inr lh
BLACK |
84790-85C00-5PK |
— | ||
|
38
|
38
02142-06123-000
Screw
|
02142-06123-000 |
— | ||
| replacements | |||||
|
38
|
38
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
||
|
38
|
38
02142-0612A-000 SCREW |
02142-0612A-000 |
from US $0.80 |
||
