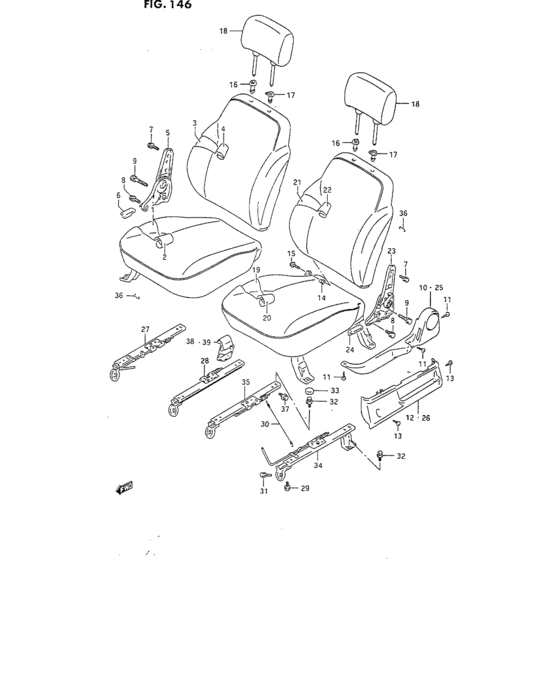

Front seat (5DR) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- transmission
- AT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
85105-56BA0-000 CUSHION SUB ASSY,FR SEAT,R |
85105-56BA0-000 |
US $401.12 |
||
|
2
|
2
85180-56BA0-B8G
Cover, cushion rh
JX |
85180-56BA0-B8G |
— | ||
|
2
|
2
85180-56BA0-B7N
トリム,フロントシートクッション,ライト
JLX |
85180-56BA0-B7N |
— | ||
|
3
|
3
85305-56B11-000
バックサブアッシ,フロントシート,ライト
|
85305-56B11-000 |
— | ||
| replacement | |||||
|
3
|
3
85305-56B12-000 BACK S/ASSY,FR SEAT,R |
85305-56B12-000 |
US $338.56 |
||
|
4
|
4
85380-56BA0-B8G
Trim comp,front seat back
JX |
85380-56BA0-B8G |
— | ||
|
4
|
4
85380-56BA0-B7N
トリム,フロントシートバック
JLX |
85380-56BA0-B7N |
— | ||
|
5
|
5
85210-56B10-000
RECLINING ASSY,FR SEAT,R
|
85210-56B10-000 |
— | ||
|
6
|
6
85211-60A10-5ES KNOB,RECLINING,FR,RBLACK |
85211-60A10-5ES |
US $9.42 |
||
|
7
|
7
01570-08163-000
Bolt
|
01570-08163-000 |
— | ||
| replacement | |||||
|
7
|
7
01570-0816A-000 BOLT |
01570-0816A-000 |
from US $0.96 |
||
|
8
|
8
01570-10163-000
ボルト
|
01570-10163-000 |
— | ||
| replacement | |||||
|
8
|
8
01570-1016A-000 Bolt |
01570-1016A-000 |
US $17.30 |
||
|
9
|
9
01570-10403-000
Bolt, upper
|
01570-10403-000 |
— | ||
| replacement | |||||
|
9
|
9
01570-1040A-000 Bolt |
01570-1040A-000 |
US $1.06 |
||
|
10
|
10
85221-60A10-5ES COVER,RECLINING,RBLACK |
85221-60A10-5ES |
US $53.20 |
||
|
11
|
11
03241-05163-000
Screw, bracket
|
03241-05163-000 |
— | ||
| replacement | |||||
|
11
|
11
03241-0516A-000 SCREW |
03241-0516A-000 |
from US $0.76 |
||
|
12
|
12
85222-56B10-5ES
COVER,FR SEAT SIDE,R
|
85222-56B10-5ES |
— | ||
|
13
|
13
03241-05163-000
Screw, bracket
|
03241-05163-000 |
— | ||
| replacement | |||||
|
13
|
13
03241-0516A-000 SCREW |
03241-0516A-000 |
from US $0.76 |
||
|
14
|
14
85291-80290-000 BUSH,SEAT BACK FIXING |
85291-80290-000 |
US $2.56 |
||
|
15
|
15
09136-06004-000 SCREW(6X12) |
09136-06004-000 |
from US $0.77 |
||
|
16
|
16
85341-72C10-5PK GUIDE,HEADRESTRAINT,R |
85341-72C10-5PK |
US $5.45 |
||
|
17
|
17
85840-72C10-5PK GUIDE,HEADRESTRAINT,L |
85840-72C10-5PK |
US $15.12 |
||
|
18
|
18
86401-56B20-5GF
Headrestraint assy,front seat(
JX |
86401-56B20-5GF |
— | ||
|
18
|
18
86401-56B10-6VE
Headrestraint assy,front seat
JLX |
86401-56B10-6VE |
— | ||
|
19
|
19
85106-56BA0-000 CUSHION SUB ASSY,FR SEAT,L |
85106-56BA0-000 |
US $401.12 |
||
|
20
|
20
85680-56BA0-B8G
Cover, cushion lh
JX |
85680-56BA0-B8G |
— | ||
|
20
|
20
85680-56BA0-B7N
トリム,フロントシートクッション,レフト
JLX |
85680-56BA0-B7N |
— | ||
|
21
|
21
85306-56B11-000
バックサブアッシ,フロントシート,レフト
|
85306-56B11-000 |
— | ||
| replacement | |||||
|
21
|
21
85306-56B12-000
BACK S/ASSY,FR SEAT,L
|
85306-56B12-000 |
— | ||
|
22
|
22
85380-56BA0-B8G
Trim comp,front seat back
JX |
85380-56BA0-B8G |
— | ||
|
22
|
22
85380-56BA0-B7N
トリム,フロントシートバック
JLX |
85380-56BA0-B7N |
— | ||
|
23
|
23
85710-56B10-000 RECLINING ASSY,FR SEAT,L |
85710-56B10-000 |
US $144.62 |
||
| replacement | |||||
|
23
|
23
85710-60A50-000
RECLINING ASSY,FR SEAT,L
|
85710-60A50-000 |
— | ||
|
24
|
24
85711-60A10-5ES KNOB,RECLINING,FR,LBLACK |
85711-60A10-5ES |
US $9.42 |
||
|
25
|
25
85721-60A10-5ES COVER,RECLINING,LBLACK |
85721-60A10-5ES |
US $53.20 |
||
|
26
|
26
85722-56B10-5ES COVER,FR SEAT SIDE,LBLACK |
85722-56B10-5ES |
US $24.29 |
||
|
27
|
27
86610-56B50-000
アジャスタ,フロントシートスライドアウタ,ライト
|
86610-56B50-000 |
— | ||
| replacement | |||||
|
27
|
27
86610-56B51-000 ADJUSTER,FR SEAT SLIDE OUTER,R |
86610-56B51-000 |
US $142.78 |
||
|
28
|
28
86610-70E00-000
ADJUSTER,FR SEAT SLIDE INNER,R
|
86610-70E00-000 |
— | ||
|
29
|
29
86724-60A00-000
BOLT,FR SEAT
|
86724-60A00-000 |
— | ||
|
30
|
30
86731-56B00-000
WIRE,FR SEAT SLIDE ADJUSTER
|
86731-56B00-000 |
— | ||
|
31
|
31
09118-08084-000 BOLT(8X20) |
09118-08084-000 |
US $21 |
||
|
32
|
32
86726-85C00-000
Bolt, rail rear
|
86726-85C00-000 |
— | ||
|
33
|
33
86615-85C00-000
Cap, slide adjuster front
|
86615-85C00-000 |
— | ||
|
34
|
34
86810-56B50-000
アジャスタ,フロントシートスライドアウタ,レフト
|
86810-56B50-000 |
— | ||
| replacement | |||||
|
34
|
34
86810-56B51-000 ADJUSTER,FR SEAT SLIDE OUTER,L |
86810-56B51-000 |
US $142.78 |
||
|
35
|
35
86810-70E00-000
ADJUSTER,FR SEAT SLIDE INNER,L
|
86810-70E00-000 |
— | ||
|
36
|
36
09387-19001-000 RING |
09387-19001-000 |
US $1.76 |
||
|
37
|
37
09103-10280-000 BOLT(10X25) |
09103-10280-000 |
US $28.70 |
||
|
38
|
38
86735-70E00-000
カバー,フロントスライドアジャスタ,ライト
|
86735-70E00-000 |
— | ||
| replacement | |||||
|
38
|
38
86735-70E00-5PK COVER,SLIDE ADJUSTER ANCHOR,R |
86735-70E00-5PK |
US $2.40 |
||
|
39
|
39
86736-70E00-000
カバー,スライドアジャスタ,レフト
|
86736-70E00-000 |
— | ||
| replacement | |||||
|
39
|
39
86736-70E00-5PK COVER,SLIDE ADJUSTER ANCHOR,L |
86736-70E00-5PK |
US $2.29 |
||
