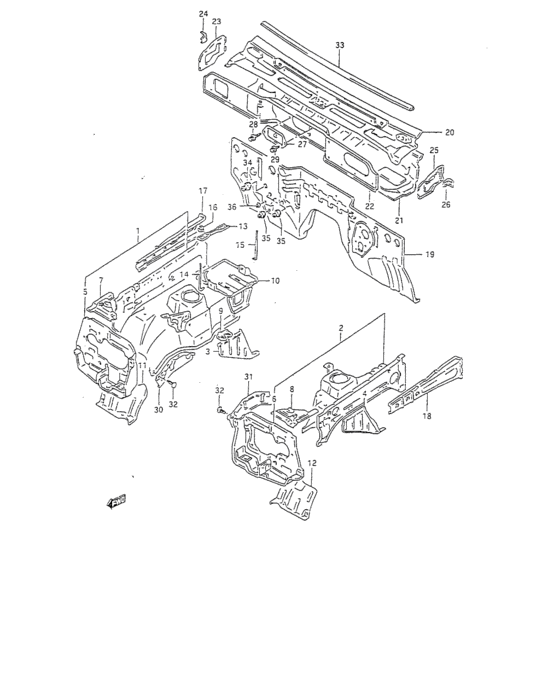

Front sheet metal (LHD) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- transmission
- AT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58700-85C00-000
Panel, front wheel housin
3DR |
58700-85C00-000 |
— | ||
|
1
|
1
58700-57B90-000
Panel, front wheel housing rh
5DR |
58700-57B90-000 |
— | ||
| replacement | |||||
|
1
|
1
58700-57B91-000
PANEL ASSY,FR WHEEL HOUSING,R
5DR |
58700-57B91-000 |
— | ||
|
2
|
2
58900-56B70-000
パネルアッシ,フロントホイールハウジング,レフト
|
58900-56B70-000 |
— | ||
| replacement | |||||
|
2
|
2
58900-56B80-000
PANEL ASSY,FR WHEEL HOUSING,L
|
58900-56B80-000 |
— | ||
|
3
|
3
58712-60A10-000
エクステンション,フロントホイールハウジング,ライト
|
58712-60A10-000 |
— | ||
| replacement | |||||
|
3
|
3
58712-60A11-000
EXTENSION,FR WHL HOUSING,R
|
58712-60A11-000 |
— | ||
|
4
|
4
58912-60A10-000
EXTENSION,FR WHL HOUSING,L
|
58912-60A10-000 |
— | ||
|
5
|
5
58730-85C00-000
Panel, lamp support rh
3DR |
58730-85C00-000 |
— | ||
|
5
|
5
58730-56B00-000 PANEL,LAMP SUPPORT,R5DR |
58730-56B00-000 |
US $198.72 |
||
|
6
|
6
58930-56B01-000 PANEL,LAMP SUPPORT,L |
58930-56B01-000 |
US $198.72 |
||
|
7
|
7
58740-60A00-000 GUSSET,FR CORNER,R |
58740-60A00-000 |
US $21.90 |
||
|
8
|
8
58941-60A00-000 GUSSET,FR CORNER,L |
58941-60A00-000 |
US $21.90 |
||
|
9
|
9
58717-60A00-000
BRACKET,BRAKE PIPE
|
58717-60A00-000 |
— | ||
|
10
|
10
58760-60A01-000
Bracket, battery
|
58760-60A01-000 |
— | ||
| replacement | |||||
|
10
|
10
58760-60A10-000 BRACKET BATTERY |
58760-60A10-000 |
US $45.63 |
||
|
11
|
11
58755-60A00-000 GUSSET,FR LWR MEMBER,R |
58755-60A00-000 |
US $47.20 |
||
|
12
|
12
58955-60A00-000 GUSSET,FR LWR MEMBER,L |
58955-60A00-000 |
US $38.40 |
||
|
13
|
13
72511-85C00-000
Band, battery
|
72511-85C00-000 |
— | ||
|
14
|
14
72512-85C00-000
Bolt, battery
|
72512-85C00-000 |
— | ||
|
15
|
15
72512-85C10-000
Bolt, battery no.2
|
72512-85C10-000 |
— | ||
|
16
|
16
08361-15063-000
Nut
|
08361-15063-000 |
— | ||
| replacement | |||||
|
16
|
16
08361-1506A-000 NUT |
08361-1506A-000 |
from US $0.74 |
||
|
17
|
17
58771-56B00-000 MEMBER,FR BODY SIDE,R |
58771-56B00-000 |
US $78.02 |
||
|
18
|
18
58970-56B01-000 MEMBER,FR BODY SIDE,L |
58970-56B01-000 |
US $91.26 |
||
|
19
|
19
61100-56B41-000
Panel, dash
|
61100-56B41-000 |
— | ||
| replacement | |||||
|
19
|
19
61100-56X51-000
PANEL,DASH
|
61100-56X51-000 |
— | ||
|
20
|
20
59110-60A00-000
PANEL,COWL TOP
|
59110-60A00-000 |
— | ||
|
21
|
21
59310-60A00-000
Panel, cowl upper
|
59310-60A00-000 |
— | ||
| replacement | |||||
|
21
|
21
59310-60A01-000
PANEL,COWL UPPER
|
59310-60A01-000 |
— | ||
|
22
|
22
59211-60A00-000
Panel, front
|
59211-60A00-000 |
— | ||
| replacement | |||||
|
22
|
22
59211-60A01-000
PANEL,COWL FRONT
|
59211-60A01-000 |
— | ||
|
23
|
23
59411-60A01-000
パネル,カウリングサイド,ライト
|
59411-60A01-000 |
— | ||
| replacement | |||||
|
23
|
23
59410-60A01-000 PANEL,COWL SIDE,R |
59410-60A01-000 |
US $13.21 |
||
|
24
|
24
59412-60A00-000
ブラケット,カウリングサイドフロント,ライト
|
59412-60A00-000 |
— | ||
|
25
|
25
59421-60A01-000
パネル,カウリングサイド,レフト
|
59421-60A01-000 |
— | ||
| replacement | |||||
|
25
|
25
59420-60A01-000
PANEL,COWL SIDE,L
|
59420-60A01-000 |
— | ||
|
26
|
26
59422-60A00-000
ブラケット,カウリングサイドフロント,レフト
|
59422-60A00-000 |
— | ||
|
27
|
27
72421-60A00-000
リッド,ワイパリンクサービスホール,センタ
|
72421-60A00-000 |
— | ||
| replacements | |||||
|
27
|
27
72421-60A10-000 LID,WIPER LINK SVCE HOLE CTR |
72421-60A10-000 |
US $8.83 |
||
|
27
|
27
09409-07320-000 CAP |
09409-07320-000 |
US $1.28 |
||
|
28
|
28
09115-06001-000
Bolt, lh
|
09115-06001-000 |
— | ||
| replacement | |||||
|
28
|
28
09115-06005-000 BOLT(6X16) |
09115-06005-000 |
US $1.28 |
||
|
29
|
29
01550-06103-000
Bolt, front
|
01550-06103-000 |
— | ||
| replacements | |||||
|
29
|
29
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
29
|
29
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
30
|
30
72485-60A00-000 FLAP,FR WHEEL HOUSING,R |
72485-60A00-000 |
US $12.64 |
||
|
31
|
31
72486-60A00-000 FLAP,FR WHEEL HOUSING,L |
72486-60A00-000 |
US $8.02 |
||
|
32
|
32
09409-10304-5ES CLIP(BLACK) |
09409-10304-5ES |
US $1.28 |
||
|
33
|
33
72471-60A00-000 WEATHERSTRIP,COWL TOP FR |
72471-60A00-000 |
US $26.31 |
||
|
34
|
34
09250-35003-000 CAP(OD:45)Cap, frame bridge N/AIR CON |
09250-35003-000 |
from US $5.41 |
||
|
35
|
35
09250-25007-000 CAP(OD:25.0)N/AIR CON |
09250-25007-000 |
from US $0.97 |
||
|
36
|
36
09250-10016-000 CAP(OD:16.2)N/AIR CON |
09250-10016-000 |
US $9.90 |
||
