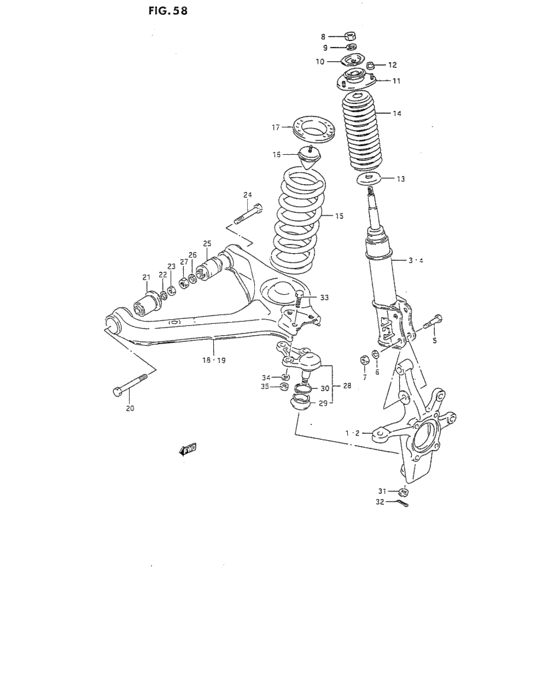

Front suspension (FRONT SUSPENSION) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- transmission
- AT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45111-60A00-000 KNUCKLE,STEERING,R |
45111-60A00-000 |
US $320.16 |
||
|
2
|
2
45151-60A00-000 KNUCKLE,STEERING,L |
45151-60A00-000 |
US $320.16 |
||
|
3
|
3
41601-85C00-000
Strut, front suspension r
3DR |
41601-85C00-000 |
— | ||
|
3
|
3
41601-56B00-000
Strut, front suspension rh
5DR |
41601-56B00-000 |
— | ||
| replacement | |||||
|
3
|
3
41601-56B10-000 STRUT ASSY,FR SUSPENSION,R5DR |
41601-56B10-000 |
US $253.92 |
||
|
4
|
4
41602-85C00-000
Strut, front suspension l
3DR |
41602-85C00-000 |
— | ||
|
4
|
4
41602-56B00-000
Strut, front suspension lh
5DR |
41602-56B00-000 |
— | ||
| replacement | |||||
|
4
|
4
41602-56B10-000 STRUT ASSY,FR SUSPENSION,L5DR |
41602-56B10-000 |
US $253.92 |
||
|
5
|
5
09100-12067-000
Bolt
|
09100-12067-000 |
— | ||
| replacement | |||||
|
5
|
5
09100-12057-000 BOLT(12X61) |
09100-12057-000 |
from US $2.72 |
||
|
6
|
6
08321-01123-000
Washer
|
08321-01123-000 |
— | ||
| replacement | |||||
|
6
|
6
08321-0112A-000 WASHER,LOCK |
08321-0112A-000 |
from US $0.76 |
||
|
7
|
7
08310-00123-000
Nut
|
08310-00123-000 |
— | ||
| replacement | |||||
|
7
|
7
08310-0012A-000 NUT |
08310-0012A-000 |
from US $0.76 |
||
|
8
|
8
08310-00143-000
Nut
|
08310-00143-000 |
— | ||
| replacement | |||||
|
8
|
8
08310-0014A-000 NUT |
08310-0014A-000 |
from US $0.91 |
||
|
9
|
9
08321-01143-000
Washer
|
08321-01143-000 |
— | ||
| replacement | |||||
|
9
|
9
08321-0114A-000 WASHER,LOCK |
08321-0114A-000 |
from US $0.80 |
||
|
10
|
10
41841-85C00-000
Seat, strut upper
3DR |
41841-85C00-000 |
— | ||
|
10
|
10
41841-60A00-000
シート,フロントストラット,アッパ
5DR |
41841-60A00-000 |
— | ||
| replacement | |||||
|
10
|
10
41841-65D00-000 SEAT,FRONT STRUT UPPER5DR |
41841-65D00-000 |
US $15.97 |
||
|
11
|
11
41810-60A01-000 SUPPORT,FRONT STRUT |
41810-60A01-000 |
from US $56.86 |
||
|
12
|
12
08316-20083-000
Nut
|
08316-20083-000 |
— | ||
| replacement | |||||
|
12
|
12
08316-2008A-000 NUT |
08316-2008A-000 |
from US $0.80 |
||
|
13
|
13
41842-85C00-000
Seat, strut lower
3DR |
41842-85C00-000 |
— | ||
|
13
|
13
41842-60A00-000 SEAT,FRONT STRUT LOWER5DR |
41842-60A00-000 |
US $7.40 |
||
|
14
|
14
41850-60A00-000 BOOT,FR STRUT DUST |
41850-60A00-000 |
US $57.01 |
||
|
15
|
15
41111-85C00-000
Spring, front coil
3DR |
41111-85C00-000 |
— | ||
|
15
|
15
41111-56B02-000
Spring,front coil
5DR |
41111-56B02-000 |
— | ||
|
16
|
16
42110-85C00-000
Stopper, bump
|
42110-85C00-000 |
— | ||
|
17
|
17
41211-60A00-000 SEAT,COIL SPRING RUBBER |
41211-60A00-000 |
from US $11.63 |
||
|
18
|
18
45201-85C00-000
Arm, front suspension rh
|
45201-85C00-000 |
— | ||
|
19
|
19
45202-85C00-000
Arm, front suspension lh
|
45202-85C00-000 |
— | ||
|
20
|
20
09103-12048-000 BOLT(12X90) |
09103-12048-000 |
US $8.48 |
||
|
21
|
21
45253-85C00-000
Silentblock, arm front
|
45253-85C00-000 |
— | ||
|
22
|
22
08321-01123-000
Washer
|
08321-01123-000 |
— | ||
| replacement | |||||
|
22
|
22
08321-0112A-000 WASHER,LOCK |
08321-0112A-000 |
from US $0.76 |
||
|
23
|
23
08310-00123-000
Nut
|
08310-00123-000 |
— | ||
| replacement | |||||
|
23
|
23
08310-0012A-000 NUT |
08310-0012A-000 |
from US $0.76 |
||
|
24
|
24
09100-14002-000 BOLT(14X94) |
09100-14002-000 |
from US $6.55 |
||
|
25
|
25
45254-85C00-000
Silentblock, arm rear
|
45254-85C00-000 |
— | ||
|
26
|
26
08221-01143-000
Lock washer
|
08221-01143-000 |
— | ||
|
27
|
27
08310-00143-000
Nut
|
08310-00143-000 |
— | ||
| replacement | |||||
|
27
|
27
08310-0014A-000 NUT |
08310-0014A-000 |
from US $0.91 |
||
|
28
|
28
45700-85C00-000
Joint assy, lower arm ball
|
45700-85C00-000 |
— | ||
|
29
|
29
45714-85C00-000
Seal set
|
45714-85C00-000 |
— | ||
|
30
|
30
45715-85C00-000
Clip
|
45715-85C00-000 |
— | ||
|
31
|
31
08314-40143-000
Nut
|
08314-40143-000 |
— | ||
| replacement | |||||
|
31
|
31
08314-4014B-000 NUTNut, hub |
08314-4014B-000 |
from US $6.78 |
||
|
32
|
32
04111-30308-000
30 x 30 cotter
|
04111-30308-000 |
— | ||
| replacement | |||||
|
32
|
32
04111-3030A-000 PIN |
04111-3030A-000 |
from US $0.76 |
||
|
33
|
33
09100-12055-000 BOLT(12X40) |
09100-12055-000 |
from US $1.62 |
||
|
34
|
34
08321-01123-000
Washer
|
08321-01123-000 |
— | ||
| replacement | |||||
|
34
|
34
08321-0112A-000 WASHER,LOCK |
08321-0112A-000 |
from US $0.76 |
||
|
35
|
35
08310-00123-000
Nut
|
08310-00123-000 |
— | ||
| replacement | |||||
|
35
|
35
08310-0012A-000 NUT |
08310-0012A-000 |
from US $0.76 |
||
