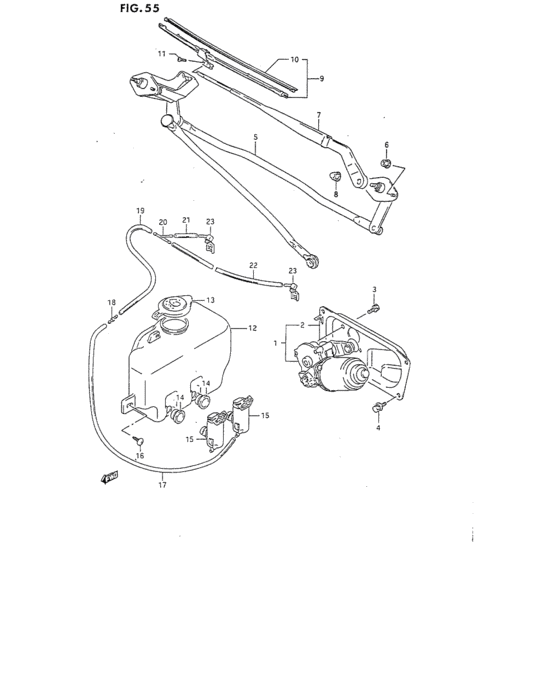

Front windshield wiper (LHD) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- transmission
- AT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38101-60A40-000 MOTOR&BRACKET ASSY,WIPER |
38101-60A40-000 |
US $467.38 |
||
|
2
|
2
38252-60A00-000 BRACKET,WIPER |
38252-60A00-000 |
US $22.40 |
||
|
3
|
3
01570-06103-000
Bolt
|
01570-06103-000 |
— | ||
| replacement | |||||
|
3
|
3
01570-0610A-000 Bolt |
01570-0610A-000 |
from US $2.48 |
||
|
4
|
4
09115-06001-000
Bolt, lh
|
09115-06001-000 |
— | ||
| replacement | |||||
|
4
|
4
09115-06005-000 BOLT(6X16) |
09115-06005-000 |
US $1.28 |
||
|
5
|
5
38102-60A10-000
LINK ASSY,WIPER
|
38102-60A10-000 |
— | ||
|
6
|
6
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
6
|
6
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
7
|
7
38310-60A00-000 ARM ASSY,WIPER |
38310-60A00-000 |
US $152.80 |
||
|
8
|
8
08313-20083-000
Nut
|
08313-20083-000 |
— | ||
| replacements | |||||
|
8
|
8
08313-2008B-000 NUT |
08313-2008B-000 |
from US $3.94 |
||
|
8
|
8
08313-2008A-000 NUT |
08313-2008A-000 |
from US $0.91 |
||
|
9
|
9
38340-60A00-000 BLADE ASSY,WIPER |
38340-60A00-000 |
US $55.20 |
||
|
10
|
10
38346-84040-000
Blade,rubber
|
38346-84040-000 |
— | ||
|
11
|
11
38319-75000-000 SCREW,WIPER BLADE |
38319-75000-000 |
US $2.40 |
||
|
12
|
12
38450-85C00-000
Tank assy, washer
|
38450-85C00-000 |
— | ||
|
12
|
12
38450-85C10-000
Tank assy, washer
|
38450-85C10-000 |
— | ||
|
13
|
13
38452-85C00-000
Cap, tank
|
38452-85C00-000 |
— | ||
|
14
|
14
38453-85C00-000
Grommet, pump
|
38453-85C00-000 |
— | ||
|
15
|
15
38410-85C00-000
Pump assy, washer
|
38410-85C00-000 |
— | ||
|
16
|
16
02112-16163-000
Screw
|
02112-16163-000 |
— | ||
| replacement | |||||
|
16
|
16
02112-1616A-000 SCREW |
02112-1616A-000 |
from US $0.68 |
||
|
17
|
17
38491-85C00-000
Hose, washer
|
38491-85C00-000 |
— | ||
|
18
|
18
38833-85C00-000
Valve, washer hose
|
38833-85C00-000 |
— | ||
|
19
|
19
38491-85C00-000
Hose, washer
|
38491-85C00-000 |
— | ||
|
20
|
20
38496-85C00-000
Connector
|
38496-85C00-000 |
— | ||
|
21
|
21
38491-85C00-000
Hose, washer
|
38491-85C00-000 |
— | ||
|
22
|
22
38491-85C00-000
Hose, washer
|
38491-85C00-000 |
— | ||
|
23
|
23
38480-60A01-000 NOZZLE,WASHER |
38480-60A01-000 |
US $24.80 |
||
