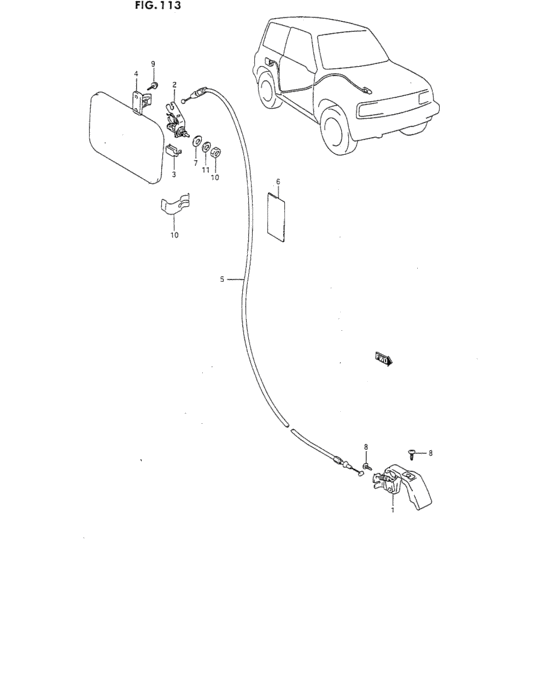

Fuel lid opener (V:JLX) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- transmission
- AT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
76510-60A00-000 HANDLE ASSY,FUEL OPENER |
76510-60A00-000 |
US $43.20 |
||
|
2
|
2
76520-60A00-000 OPENER ASSY,FUEL LID |
76520-60A00-000 |
US $43.20 |
||
|
3
|
3
76531-60A20-000 SPRING,FUEL LID NO.23DR |
76531-60A20-000 |
US $5.67 |
||
|
4
|
4
76550-85C60-000
Cable assy, fuel opener
LHD |
76550-85C60-000 |
— | ||
|
4
|
4
76550-60A00-000 CABLE ASSY,FUEL OPENER,RRHD:3DR |
76550-60A00-000 |
US $23 |
||
|
4
|
4
76550-56B00-000 CABLE ASSY,FUEL OPENER,RRHD:5DR |
76550-56B00-000 |
US $36.43 |
||
|
5
|
5
76561-60A00-000
TAPE
LHD:3DR |
76561-60A00-000 |
— | ||
|
6
|
6
08160-13011-000
Washer
|
08160-13011-000 |
— | ||
|
7
|
7
03241-06123-000
Screw
|
03241-06123-000 |
— | ||
| replacement | |||||
|
7
|
7
03241-0612A-000 SCREW |
03241-0612A-000 |
US $0.80 |
||
|
8
|
8
08310-00103-000
Nut
|
08310-00103-000 |
— | ||
| replacements | |||||
|
8
|
8
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.80 |
||
|
8
|
8
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
|
9
|
9
08322-01103-000
Washer
|
08322-01103-000 |
— | ||
| replacements | |||||
|
9
|
9
08322-0110B-000 WASHERWasher, knuckle end |
08322-0110B-000 |
from US $0.76 |
||
|
9
|
9
08322-0110A-000 WASHERWasher, knuckle end |
08322-0110A-000 |
from US $0.80 |
||
|
10
|
10
77118-60B01-000
スプリング,フューエルドアオープン
5DR |
77118-60B01-000 |
— | ||
| replacement | |||||
|
10
|
10
77118-60B02-000 SPRING,FUEL LID5DR |
77118-60B02-000 |
US $2.72 |
||
|
11
|
11
76541-50A00-000
Hook fuel lid
3DR |
76541-50A00-000 |
— | ||
|
12
|
12
03511-05103-000
Screw
|
03511-05103-000 |
— | ||
| replacement | |||||
|
12
|
12
03511-0510A-000 SCREW |
03511-0510A-000 |
from US $2.72 |
||
