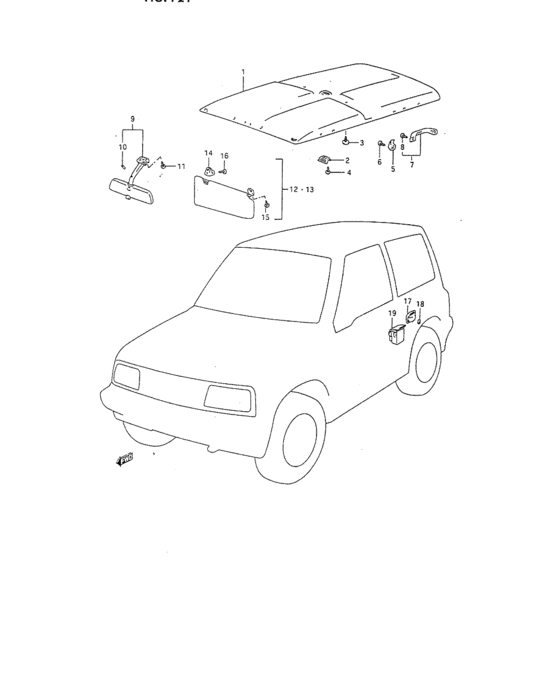

Headlining and sunshade (3DR) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- transmission
- AT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
78110-61A00-5EF HEADLINING ASSY,ROOFGRAY,JX |
78110-61A00-5EF |
US $268.64 |
||
|
1
|
1
78110-85C30-5EG
Headlining assy, roof
GRAY,JLX |
78110-85C30-5EG |
— | ||
|
2
|
2
78121-61A00-000 SPACER,ROOM LAMPJLX |
78121-61A00-000 |
US $3.53 |
||
|
3
|
3
59811-85C00-5EH
Clip, headlining
GRAY,JLX |
59811-85C00-5EH |
— | ||
|
4
|
4
03241-05123-000
Screw
|
03241-05123-000 |
— | ||
| replacement | |||||
|
4
|
4
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
5
|
5
84491-61A10-5ES
HOOK,COAT HANGER
BLACK |
84491-61A10-5ES |
— | ||
| replacement | |||||
|
5
|
5
84491-61A10-5PK HOOK,LUGGAGE ROOMBLACK |
84491-61A10-5PK |
US $11.20 |
||
|
6
|
6
03111-06253-000
Screw
|
03111-06253-000 |
— | ||
| replacement | |||||
|
6
|
6
03111-0625A-000 SCREW |
03111-0625A-000 |
from US $0.80 |
||
|
7
|
7
76400-61831-5ES GRIP SET,ASSISTANTBLACK |
76400-61831-5ES |
US $35.20 |
||
|
8
|
8
09125-06084-000 SCREW(6X17)JX |
09125-06084-000 |
US $13.20 |
||
|
8
|
8
09125-06041-000 SCREW(6X20)JLX |
09125-06041-000 |
US $1.76 |
||
|
9
|
9
84703-85C10-5PK
Mirror, inside rr view
BLACK |
84703-85C10-5PK |
— | ||
|
10
|
10
84782-85C00-000
Rubber
|
84782-85C00-000 |
— | ||
|
11
|
11
02142-05123-000
Screw 5x12
|
02142-05123-000 |
— | ||
| replacement | |||||
|
11
|
11
02142-0512A-000 SCREWScrew, lower |
02142-0512A-000 |
from US $0.80 |
||
|
12
|
12
84800-60811-2WE
SUNSHADE SET, RH (GRAY)
JX |
84800-60811-2WE |
— | ||
| replacement | |||||
|
12
|
12
84800-60812-2WE
SUNVISOR ASSY,R
JX |
84800-60812-2WE |
— | ||
|
12
|
12
84800-60811-5UN
Sunfivor set, rh
JLX(N/MIRROR) |
84800-60811-5UN |
— | ||
| replacement | |||||
|
12
|
12
84800-60812-5UN
SUNVISOR ASSY,R
JLX(N/MIRROR) |
84800-60812-5UN |
— | ||
|
12
|
12
84800-60851-5UN
Sunshade set, rh
JLX(N/MIRROR) |
84800-60851-5UN |
— | ||
| replacement | |||||
|
12
|
12
84800-60852-5UN
SUNVISOR ASSY,R
JLX(N/MIRROR) |
84800-60852-5UN |
— | ||
|
13
|
13
84800-60821-2WE
SUNSHADE SET, LH (GRAY)
JX |
84800-60821-2WE |
— | ||
| replacement | |||||
|
13
|
13
84800-60822-2WE
SUNSHADE SET, LH (GRAY)
JX |
84800-60822-2WE |
— | ||
|
13
|
13
84800-60821-5UN
Sunshade set, lh
JLX(N/MIRROR) |
84800-60821-5UN |
— | ||
| replacement | |||||
|
13
|
13
84800-60822-5UN
SUNVISOR ASSY,L
JLX(N/MIRROR) |
84800-60822-5UN |
— | ||
|
13
|
13
84800-60841-5UN
SUNVISOR SET,L
JLX(N/MIRROR) |
84800-60841-5UN |
— | ||
|
14
|
14
84851-60B00-5ES HOLDER,SUN VISORBLACK |
84851-60B00-5ES |
US $2.56 |
||
|
15
|
15
09127-05016-000
スクリュ,5X16
|
09127-05016-000 |
— | ||
| replacement | |||||
|
15
|
15
02122-0516B-000 SCREW |
02122-0516B-000 |
from US $0.80 |
||
|
16
|
16
03211-05163-000
Screw
|
03211-05163-000 |
— | ||
| replacement | |||||
|
16
|
16
03211-0516A-000 SCREW |
03211-0516A-000 |
US $0.80 |
||
|
17
|
17
86370-78000-281 ASHTRAY,RRBLACK,JX |
86370-78000-281 |
US $15.68 |
||
|
18
|
18
09148-05006-000 NUTJX |
09148-05006-000 |
from US $0.74 |
||
|
19
|
19
89820-60A00-5ES
ASHTRAY,RR
BLACK,JLX |
89820-60A00-5ES |
— | ||
