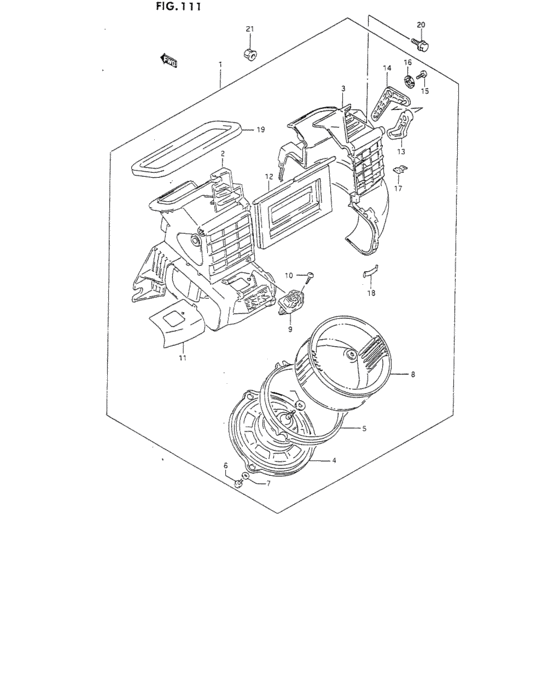

Heater blower (LHD) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- transmission
- AT
- grade
- JLX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
74200-85C30-000
Motor assy, blower
|
74200-85C30-000 |
— | ||
|
2
|
2
74211-85C00-000
Case, blower lh
|
74211-85C00-000 |
— | ||
|
3
|
3
74212-85C00-000
Case, blower rh
|
74212-85C00-000 |
— | ||
|
4
|
4
74250-85C00-000
Motor assy
|
74250-85C00-000 |
— | ||
|
5
|
5
74261-85C00-000
Packing
|
74261-85C00-000 |
— | ||
|
6
|
6
74269-85C00-000
Screw
|
74269-85C00-000 |
— | ||
|
7
|
7
74268-85C00-000
Washer
|
74268-85C00-000 |
— | ||
|
8
|
8
74231-85C00-000
Fan, brower
|
74231-85C00-000 |
— | ||
|
9
|
9
74290-85C00-000
Resistor
|
74290-85C00-000 |
— | ||
|
10
|
10
74299-85C00-000
Screw
|
74299-85C00-000 |
— | ||
|
11
|
11
74215-85C00-000
Plate, cover
|
74215-85C00-000 |
— | ||
|
12
|
12
74271-85C00-000
Damper
|
74271-85C00-000 |
— | ||
|
13
|
13
74281-85C00-000
Plate
|
74281-85C00-000 |
— | ||
|
14
|
14
74282-85C00-000
Lever, control
|
74282-85C00-000 |
— | ||
|
15
|
15
74183-85C00-000
Bolt and washer, lever
|
74183-85C00-000 |
— | ||
|
16
|
16
74184-85C00-000
Washer
|
74184-85C00-000 |
— | ||
|
17
|
17
74151-85C00-000
Clamp
|
74151-85C00-000 |
— | ||
|
18
|
18
74133-85C00-000
Spring, holder
|
74133-85C00-000 |
— | ||
|
19
|
19
74262-85C00-000
Packing
|
74262-85C00-000 |
— | ||
|
20
|
20
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
20
|
20
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
20
|
20
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
21
|
21
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
21
|
21
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
