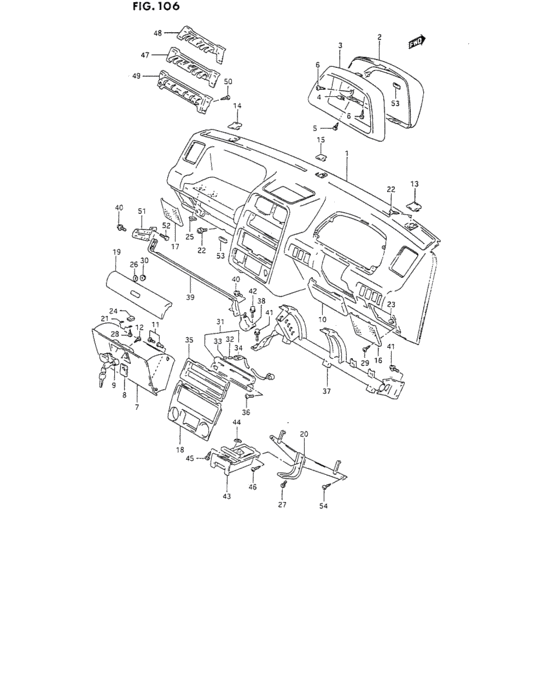

Instrument panel (RHD) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- transmission
- AT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
73111-60A00-5ES
PANEL,INSTRUMENT
BLACK |
73111-60A00-5ES |
— | ||
|
2
|
2
73311-60A00-5ES CLUSTER,METERBLACK |
73311-60A00-5ES |
US $32.02 |
||
|
3
|
3
73312-60A00-5ES
HOOD,METER CLUSTER
BLACK |
73312-60A00-5ES |
— | ||
|
4
|
4
59916-85C00-000
Nut, protector
|
59916-85C00-000 |
— | ||
|
5
|
5
03141-05123-000
Screw 5 x 12
|
03141-05123-000 |
— | ||
| replacement | |||||
|
5
|
5
03141-0512A-000 SCREWScrew, belt cooling duct |
03141-0512A-000 |
from US $0.76 |
||
|
6
|
6
03141-05163-000
Screw
|
03141-05163-000 |
— | ||
| replacement | |||||
|
6
|
6
03141-0516A-000 SCREW |
03141-0516A-000 |
from US $0.80 |
||
|
7
|
7
73411-85C00-5ES
Box, side
BLACK |
73411-85C00-5ES |
— | ||
|
8
|
8
73414-85C00-5ES
Cover, side box
BLACK |
73414-85C00-5ES |
— | ||
|
9
|
9
73420-60820-5ES LOCK ASSY,SIDE BOXBLACK |
73420-60820-5ES |
US $77.28 |
||
|
10
|
10
73871-60A00-5ES
Cover,column hole
BLACK,JX |
73871-60A00-5ES |
— | ||
|
10
|
10
73871-60A10-5ES
COVER,COLUMN HOLE
BLACK,JLX (TILT STEERING) |
73871-60A10-5ES |
— | ||
|
11
|
11
09409-07315-000 CLIP |
09409-07315-000 |
US $1.44 |
||
|
12
|
12
02142-04103-000
Screw 4x10
|
02142-04103-000 |
— | ||
| replacement | |||||
|
12
|
12
02142-0410A-000 SCREW |
02142-0410A-000 |
from US $0.76 |
||
|
13
|
13
73811-60A00-5ES
CAP,UPPER SIDE,R
BLACK |
73811-60A00-5ES |
— | ||
|
14
|
14
73812-60A00-5ES
CAP,UPPER SIDE,L
BLACK |
73812-60A00-5ES |
— | ||
|
15
|
15
73813-60A00-5ES
CAP,UPPER CENTER
BLACK |
73813-60A00-5ES |
— | ||
|
16
|
16
73821-60A00-5ES
COVER,SPEAKER,R
BLACK |
73821-60A00-5ES |
— | ||
|
17
|
17
73822-60A00-5ES COVER,SPEAKER,LBLACK |
73822-60A00-5ES |
US $15.97 |
||
|
18
|
18
73841-60A20-5PK
GARNISH,CENTER LWR
BLACK |
73841-60A20-5PK |
— | ||
|
19
|
19
73850-60A00-5ES
GRIP,I/P
BLACK |
73850-60A00-5ES |
— | ||
|
20
|
20
73360-60A10-000
Stay, radio & ashtray
|
73360-60A10-000 |
— | ||
|
21
|
21
73951-60A00-000
STRIKER,I/P SIDE BOX
|
73951-60A00-000 |
— | ||
|
22
|
22
09136-06061-000 SCREW(6X16) |
09136-06061-000 |
from US $3.86 |
||
|
23
|
23
59917-85C00-000
Nut, extension bolt
|
59917-85C00-000 |
— | ||
|
24
|
24
59916-85C00-000
Nut, protector
|
59916-85C00-000 |
— | ||
|
25
|
25
59916-85C00-000
Nut, protector
|
59916-85C00-000 |
— | ||
|
26
|
26
09160-08010-000 Washer (8.2x20x1.6) |
09160-08010-000 |
US $1.21 |
||
| replacement | |||||
|
26
|
26
09160-08054-000 WASHER(8.5X20X1.6) |
09160-08054-000 |
from US $0.91 |
||
|
27
|
27
02142-06123-000
Screw
|
02142-06123-000 |
— | ||
| replacements | |||||
|
27
|
27
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
||
|
27
|
27
02142-0612A-000 SCREW |
02142-0612A-000 |
from US $0.80 |
||
|
28
|
28
03141-05123-000
Screw 5 x 12
|
03141-05123-000 |
— | ||
| replacement | |||||
|
28
|
28
03141-0512A-000 SCREWScrew, belt cooling duct |
03141-0512A-000 |
from US $0.76 |
||
|
29
|
29
03241-04123-000
Screw
|
03241-04123-000 |
— | ||
| replacement | |||||
|
29
|
29
03242-0412B-000 SCREW |
03242-0412B-000 |
from US $0.80 |
||
|
30
|
30
08316-20083-000
Nut
|
08316-20083-000 |
— | ||
| replacement | |||||
|
30
|
30
08316-2008A-000 NUT |
08316-2008A-000 |
from US $0.80 |
||
|
31
|
31
74450-85C00-5PK
Panel, htr control
BLACK |
74450-85C00-5PK |
— | ||
|
32
|
32
73856-85C00-000
Bulb, htr control
|
73856-85C00-000 |
— | ||
|
33
|
33
73857-85C00-000
Filter, bulb
|
73857-85C00-000 |
— | ||
|
34
|
34
74455-85C00-000
Cord assy
|
74455-85C00-000 |
— | ||
|
35
|
35
74461-60A10-5PK
COVER,INSTPNL CENTER
BLACK |
74461-60A10-5PK |
— | ||
|
36
|
36
03511-04163-000
Screw
|
03511-04163-000 |
— | ||
| replacement | |||||
|
36
|
36
03511-0416A-000 SCREW |
03511-0416A-000 |
from US $2.45 |
||
|
37
|
37
65910-60A40-000
HOLDER,STEERING COLUMN,R
|
65910-60A40-000 |
— | ||
|
38
|
38
65945-60A10-000
STAY,INSTPNL HOLDER ASSISTANT
|
65945-60A10-000 |
— | ||
|
39
|
39
76440-60A20-000
HOLDER,I/P ASST,L
|
76440-60A20-000 |
— | ||
|
40
|
40
09100-08294-000 BOLT(8X13) |
09100-08294-000 |
US $12.50 |
||
|
41
|
41
09100-08294-000 BOLT(8X13) |
09100-08294-000 |
US $12.50 |
||
|
42
|
42
09100-08294-000 BOLT(8X13) |
09100-08294-000 |
US $12.50 |
||
|
43
|
43
89810-60A10-5PK
ASHTRAY,INSTPNL
BLACK |
89810-60A10-5PK |
— | ||
|
44
|
44
59916-85C00-000
Nut, protector
|
59916-85C00-000 |
— | ||
|
45
|
45
02142-06123-000
Screw
|
02142-06123-000 |
— | ||
| replacements | |||||
|
45
|
45
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
||
|
45
|
45
02142-0612A-000 SCREW |
02142-0612A-000 |
from US $0.80 |
||
|
46
|
46
03141-05123-000
Screw 5 x 12
|
03141-05123-000 |
— | ||
| replacement | |||||
|
46
|
46
03141-0512A-000 SCREWScrew, belt cooling duct |
03141-0512A-000 |
from US $0.76 |
||
|
47
|
47
73830-60A10-000
Reinf, ctr no.2
|
73830-60A10-000 |
— | ||
|
48
|
48
73880-60A10-000
Reinf, ctr upper
|
73880-60A10-000 |
— | ||
|
49
|
49
73890-60A00-000
Reinf, ctr lower rh
|
73890-60A00-000 |
— | ||
|
50
|
50
03241-05203-000
Screw
|
03241-05203-000 |
— | ||
| replacement | |||||
|
50
|
50
03241-0520A-000 SCREW |
03241-0520A-000 |
from US $0.80 |
||
|
51
|
51
65935-60A10-000
BRACKET,INSTPN ASST OUTSIDE
|
65935-60A10-000 |
— | ||
|
52
|
52
09100-08294-000 BOLT(8X13) |
09100-08294-000 |
US $12.50 |
||
|
53
|
53
73415-70A00-000 PAD |
73415-70A00-000 |
from US $1.60 |
||
|
54
|
54
03541-05123-000
Screw
|
03541-05123-000 |
— | ||
| replacement | |||||
|
54
|
54
03541-0512B-000 SCREW |
03541-0512B-000 |
from US $0.76 |
||
