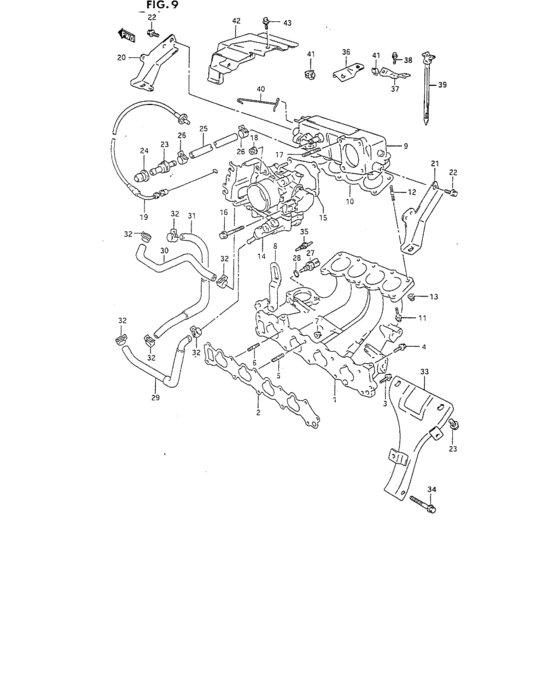

Intake manifold and throttle bo (INTAKE MANIFOLD AND THROTTLE BO) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- transmission
- AT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13110-58B01-000
マニホールド,インテーク
|
13110-58B01-000 |
— | ||
| replacement | |||||
|
1
|
1
13110-58B02-000
MANIFOLD,INTK
|
13110-58B02-000 |
— | ||
|
2
|
2
13119-57B00-000 GASKET,INTK MANFGasket, intake manifold |
13119-57B00-000 |
from US $11.32 |
||
|
3
|
3
01550-08253-000
Bolt, rear
|
01550-08253-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0825B-000 BOLT |
01550-0825B-000 |
from US $0.96 |
||
|
3
|
3
01550-0825A-000 BOLT |
01550-0825A-000 |
from US $1.06 |
||
|
4
|
4
01550-08353-000
Bolt, rear
|
01550-08353-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0835B-000 BOLT |
01550-0835B-000 |
from US $1.12 |
||
|
4
|
4
01550-0835A-000 BOLT |
01550-0835A-000 |
from US $1.06 |
||
|
5
|
5
01421-08253-000
Stud bolt, no.2
|
01421-08253-000 |
— | ||
| replacement | |||||
|
5
|
5
01421-0825A-000 BOLT,STUD |
01421-0825A-000 |
from US $1.12 |
||
|
6
|
6
01421-08353-000
Bolt, stud
|
01421-08353-000 |
— | ||
| replacement | |||||
|
6
|
6
01421-0835A-000 BOLT,STUDStud bolt (8x35) |
01421-0835A-000 |
from US $1.44 |
||
|
7
|
7
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
7
|
7
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
8
|
8
11852-57B01-000 HOOK,ENGINE |
11852-57B01-000 |
US $12.14 |
||
|
9
|
9
13140-58B00-000
タンク,サージインテーク
|
13140-58B00-000 |
— | ||
| replacement | |||||
|
9
|
9
13140-58BV0-000
Tank,surge intake
|
13140-58BV0-000 |
— | ||
|
10
|
10
13122-58B00-000
GASKET,SURGE TANK
|
13122-58B00-000 |
— | ||
|
11
|
11
01550-08253-000
Bolt, rear
|
01550-08253-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0825B-000 BOLT |
01550-0825B-000 |
from US $0.96 |
||
|
11
|
11
01550-0825A-000 BOLT |
01550-0825A-000 |
from US $1.06 |
||
|
12
|
12
01421-08203-000
Bolt, exhaust pipe stud
|
01421-08203-000 |
— | ||
| replacement | |||||
|
12
|
12
01421-0820A-000 BOLT,STUD |
01421-0820A-000 |
from US $3.03 |
||
|
13
|
13
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
13
|
13
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
14
|
14
13400-58B00-000 BODY ASSY,THROTTLE |
13400-58B00-000 |
US $1,616 |
||
|
15
|
15
13421-58B00-000 GASKET,THROTTLE BODY |
13421-58B00-000 |
US $2.72 |
||
|
16
|
16
01550-08553-000
Bolt
|
01550-08553-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-0855B-000 Bolt |
01550-0855B-000 |
from US $1.51 |
||
|
16
|
16
01550-0855A-000 BOLTBolt, gear holder |
01550-0855A-000 |
from US $1.22 |
||
|
17
|
17
01421-08553-000
Stud bolt
|
01421-08553-000 |
— | ||
| replacement | |||||
|
17
|
17
01421-0855B-000 BOLT,STUD |
01421-0855B-000 |
US $17.30 |
||
|
18
|
18
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
18
|
18
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
19
|
19
15910-57B11-000 CABLE ASSY,ACCELLHD |
15910-57B11-000 |
US $45.32 |
||
|
19
|
19
15910-57B01-000
ケーブルアッシ,アクセル
RHD |
15910-57B01-000 |
— | ||
| replacement | |||||
|
19
|
19
15910-57B0V-000
CABLE,ACCEL
RHD |
15910-57B0V-000 |
— | ||
|
20
|
20
13626-58B00-000 STIFFENER,INTK MANF NO.1 |
13626-58B00-000 |
US $48 |
||
|
21
|
21
13627-58B00-000 STIFFENER,INTK MANF NO.2 |
13627-58B00-000 |
US $32.38 |
||
|
22
|
22
01550-10203-000
Bolt
|
01550-10203-000 |
— | ||
| replacement | |||||
|
22
|
22
01550-1020A-000 BOLTBolt, bal sprocket |
01550-1020A-000 |
from US $0.96 |
||
|
23
|
23
18118-58B00-000 VALVE,PCV |
18118-58B00-000 |
US $26.40 |
||
|
24
|
24
11198-58B00-000 SEAL,PCV VALVESeal, pcv valve |
11198-58B00-000 |
US $5.20 |
||
| replacement | |||||
|
24
|
24
11198-98L00-000 Seal,pcv Valve |
11198-98L00-000 |
from US $2.74 |
||
|
25
|
25
09354-80153-600 HOSE(8X15X600)L:600>150 |
09354-80153-600 |
from US $19.60 |
||
|
26
|
26
11195-85C00-000
Clamp
|
11195-85C00-000 |
— | ||
|
27
|
27
13650-57F00-000 Sensor,water TempSensor, air temp |
13650-57F00-000 |
from US $32.80 |
||
|
28
|
28
09168-12016-000 GASKET(12.2X21X0.8) |
09168-12016-000 |
from US $1.12 |
||
|
29
|
29
13491-58B00-000
ホース,ウォータスロットルボディ,インレット
|
13491-58B00-000 |
— | ||
| replacements | |||||
|
29
|
29
13491-58B01-000 HOSE,WATER THB INLET |
13491-58B01-000 |
US $36.80 |
||
|
29
|
29
09401-12410-000 CLIPClip, filter outlet |
09401-12410-000 |
from US $1.19 |
||
|
30
|
30
09352-70131-600
HOSE(7X13X600)
L:600>190 |
09352-70131-600 |
— | ||
|
31
|
31
13494-58B00-000
ホース,ウォータISCツーパイプ
|
13494-58B00-000 |
— | ||
| replacements | |||||
|
31
|
31
13494-58B01-000 HOSE,WATER ISC TO PIPE |
13494-58B01-000 |
US $34.40 |
||
|
31
|
31
09401-12410-000 CLIPClip, filter outlet |
09401-12410-000 |
from US $1.19 |
||
|
32
|
32
09401-12404-000 CLIPClip |
09401-12404-000 |
from US $1.52 |
||
|
33
|
33
13620-57B01-000 STIFFENER,INTK MANF |
13620-57B01-000 |
US $40.48 |
||
|
34
|
34
01550-10603-000
Bolt
|
01550-10603-000 |
— | ||
| replacements | |||||
|
34
|
34
01550-1060B-000 Bolt |
01550-1060B-000 |
US $1.60 |
||
|
34
|
34
01550-1060A-000 Bolt |
01550-1060A-000 |
from US $1.60 |
||
|
35
|
35
34850-82012-000
Gauge assy, water temperature
|
34850-82012-000 |
— | ||
| replacement | |||||
|
35
|
35
34850-14F00-000 GAUGE ASSY,WATER TEMP |
34850-14F00-000 |
US $23.57 |
||
|
36
|
36
15919-57B11-000
BRACKET,ACCEL CABLE CLAMP
LHD |
15919-57B11-000 |
— | ||
|
37
|
37
15918-57B00-000
BRACKET,ACCEL CABLE BATT SIDE
RHD |
15918-57B00-000 |
— | ||
| replacement | |||||
|
37
|
37
09403-05311-000 CLAMPRHD |
09403-05311-000 |
US $14.40 |
||
|
38
|
38
01550-06103-000
Bolt, front
RHD |
01550-06103-000 |
— | ||
| replacements | |||||
|
38
|
38
01550-0610B-000 BoltBolt RHD |
01550-0610B-000 |
from US $0.80 |
||
|
38
|
38
01550-0610A-000 BOLTRHD |
01550-0610A-000 |
from US $0.80 |
||
|
39
|
39
09407-14408-000 CLAMP(L:120)RHD |
09407-14408-000 |
US $9.20 |
||
| replacement | |||||
|
39
|
39
09407-17402-000 CLAMPRHD |
09407-17402-000 |
from US $1.98 |
||
|
40
|
40
15919-58B00-000
BRACKET,ACCEL CABLE CLAMP,R
RHD |
15919-58B00-000 |
— | ||
|
41
|
41
09403-06318-000 CLAMP |
09403-06318-000 |
US $1.52 |
||
|
42
|
42
13471-58B00-000 COVER,THROTTLE |
13471-58B00-000 |
US $43.20 |
||
|
43
|
43
01550-06103-000
Bolt, front
|
01550-06103-000 |
— | ||
| replacements | |||||
|
43
|
43
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
43
|
43
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
