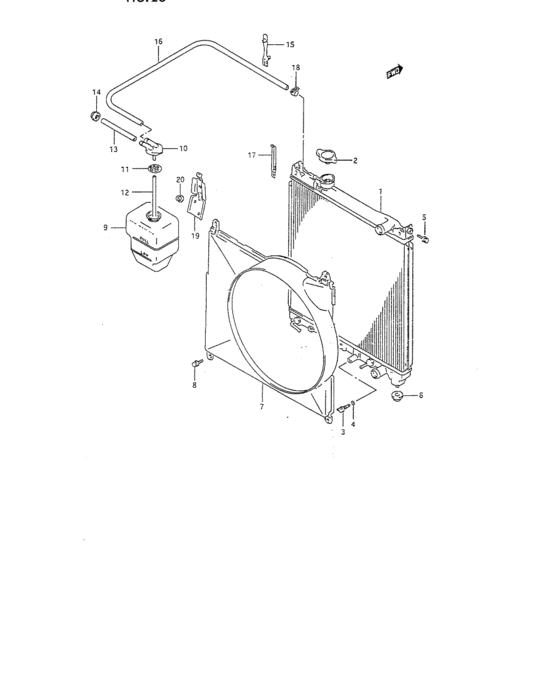

Radiator (RADIATOR) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- transmission
- AT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17700-85C00-000
Radiator assy
3DR |
17700-85C00-000 |
— | ||
|
1
|
1
17700-56B00-000
Radiator assy
5DR |
17700-56B00-000 |
— | ||
| replacement | |||||
|
1
|
1
17700-56B02-000 RADIATOR ASSY5DR |
17700-56B02-000 |
US $1,371.20 |
||
|
2
|
2
17920-85C00-000
Radiator plug
3DR |
17920-85C00-000 |
— | ||
|
2
|
2
17920-66F00-000
キャップ,ラジエータ(1.1)
5DR |
17920-66F00-000 |
— | ||
| replacement | |||||
|
2
|
2
17920-66F01-000 CAP,RADIATOR 1.15DR |
17920-66F01-000 |
from US $22.55 |
||
|
3
|
3
17751-85C00-000
Plug, drain
3DR |
17751-85C00-000 |
— | ||
|
3
|
3
17751-61A00-000 PLUG,DRAIN5DR |
17751-61A00-000 |
US $4.32 |
||
|
4
|
4
17759-85C00-000
O ring, drain plug
3DR |
17759-85C00-000 |
— | ||
|
4
|
4
17759-72010-000 O-RING5DR |
17759-72010-000 |
US $1.52 |
||
|
5
|
5
01550-06203-000
Bolt
|
01550-06203-000 |
— | ||
| replacement | |||||
|
5
|
5
01550-0620B-000 BOLTBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
|
6
|
6
17812-82000-000 BUSHING,RADIATOR SUPPORT |
17812-82000-000 |
from US $1.80 |
||
|
7
|
7
17761-60A01-000
SHROUD,FAN
3DR |
17761-60A01-000 |
— | ||
|
7
|
7
17761-56B00-000 SHROUD,FAN5DR |
17761-56B00-000 |
US $131.48 |
||
|
8
|
8
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
8
|
8
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
9
|
9
17931-58B00-000 TANK,WATER RESERVE |
17931-58B00-000 |
US $60.80 |
||
|
10
|
10
17932-60A10-000 CAP,WATER RESERVE TANK |
17932-60A10-000 |
US $7.36 |
||
|
11
|
11
17933-60B00-000 RUBBER,WTR RSV TANK CAPRubber, tank cap |
17933-60B00-000 |
from US $1.85 |
||
|
12
|
12
09352-70111-600 HOSE(7X11X600)L:600>150 |
09352-70111-600 |
from US $6.84 |
||
|
13
|
13
09352-70111-600 HOSE(7X11X600)L:600>200 |
09352-70111-600 |
from US $6.84 |
||
|
14
|
14
09308-15006-000
GROMMET
|
09308-15006-000 |
— | ||
|
15
|
15
09407-05406-000 CLAMP(L:118) |
09407-05406-000 |
from US $1.06 |
||
|
16
|
16
09352-70121-00B HOSE(7X12.1X2000)Hose, silencer L:2000>1200 |
09352-70121-00B |
from US $21.60 |
||
|
17
|
17
09404-06429-000 CLAMP(L:45)Clamp, coil lead wire |
09404-06429-000 |
from US $1.52 |
||
|
18
|
18
09401-11407-000
CLIP
|
09401-11407-000 |
— | ||
| replacement | |||||
|
18
|
18
09401-11415-000 CLIP |
09401-11415-000 |
from US $1.06 |
||
|
19
|
19
17937-57B00-000
BRACKET,WATER RESERVE TANK
|
17937-57B00-000 |
— | ||
|
20
|
20
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
20
|
20
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
