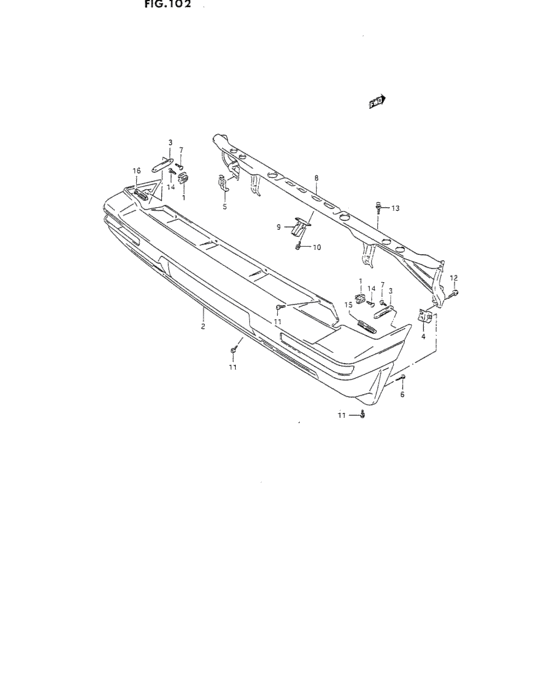

Rear bumper (3DR) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- transmission
- AT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71752-86000-000 SUPPORT,BUMPER SIDE |
71752-86000-000 |
US $3.04 |
||
|
2
|
2
71811-60A40-5PK
BAR,RR BUMPER(BLACK)
BLACK,JX |
71811-60A40-5PK |
— | ||
|
2
|
2
71811-61A00-799 BAR,RR BUMPER(PRIMARY)PRIMARY COAT,JLX (PAINT TO MATCH) |
71811-61A00-799 |
US $552.64 |
||
|
3
|
3
71751-86000-000 ATTACHMENT,BUMPER SIDE |
71751-86000-000 |
US $3.04 |
||
|
4
|
4
71812-60A10-000 BRACKET,RR BUMPER OUT SIDE,R |
71812-60A10-000 |
US $7.25 |
||
|
5
|
5
71813-60A10-000 BRACKET,RR BUMPER OUT SIDE,L |
71813-60A10-000 |
US $7.95 |
||
|
6
|
6
09139-06052-000
Screw, plate
|
09139-06052-000 |
— | ||
| replacement | |||||
|
6
|
6
09122-66007-000 SCREW(6X14) |
09122-66007-000 |
from US $0.80 |
||
|
7
|
7
03241-04123-000
Screw
|
03241-04123-000 |
— | ||
| replacement | |||||
|
7
|
7
03242-0412B-000 SCREW |
03242-0412B-000 |
from US $0.80 |
||
|
8
|
8
71820-60A10-000
MEMBER,RR BUMPER
|
71820-60A10-000 |
— | ||
|
9
|
9
71850-60A10-000 STAY,REAR BUMPER LOWER CTR |
71850-60A10-000 |
US $6.73 |
||
|
10
|
10
01570-08203-000
Bolt
|
01570-08203-000 |
— | ||
| replacements | |||||
|
10
|
10
01570-0820B-000 Bolt |
01570-0820B-000 |
US $17.30 |
||
|
10
|
10
01570-0820A-000 BOLT |
01570-0820A-000 |
from US $0.96 |
||
|
11
|
11
09139-06052-000
Screw, plate
|
09139-06052-000 |
— | ||
| replacement | |||||
|
11
|
11
09122-66007-000 SCREW(6X14) |
09122-66007-000 |
from US $0.80 |
||
|
12
|
12
01580-06163-000
Bolt
|
01580-06163-000 |
— | ||
| replacement | |||||
|
12
|
12
01580-0616A-000 BOLT |
01580-0616A-000 |
from US $0.96 |
||
|
13
|
13
01570-08203-000
Bolt
|
01570-08203-000 |
— | ||
| replacements | |||||
|
13
|
13
01570-0820B-000 Bolt |
01570-0820B-000 |
US $17.30 |
||
|
13
|
13
01570-0820A-000 BOLT |
01570-0820A-000 |
from US $0.96 |
||
|
14
|
14
03511-05123-000
スクリュ
|
03511-05123-000 |
— | ||
| replacement | |||||
|
14
|
14
03511-0512A-000 SCREW |
03511-0512A-000 |
from US $0.80 |
||
|
15
|
15
71815-60A01-000 SPACER,REAR BUMPER SIDE,R |
71815-60A01-000 |
US $26.40 |
||
|
16
|
16
71816-60A01-000 SPACER,REAR BUMPER SIDE,L |
71816-60A01-000 |
US $26.40 |
||
