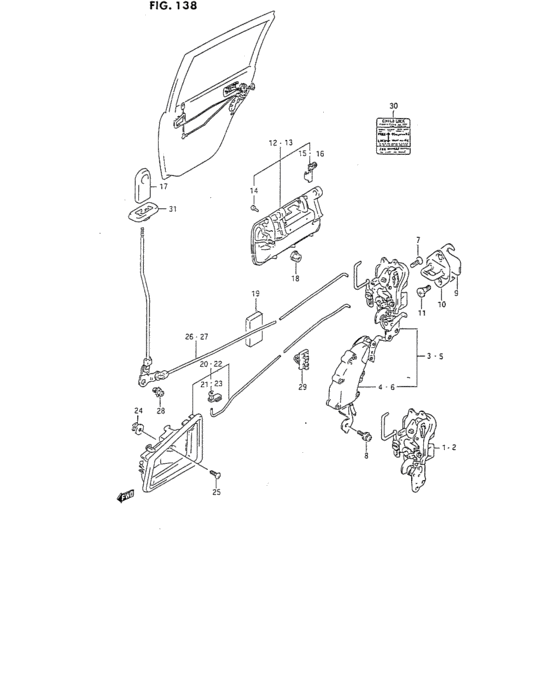

Rear door lock (5DR) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- transmission
- AT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82301-56B00-000
LATCH ASSY,RR DR,R
JX |
82301-56B00-000 |
— | ||
|
2
|
2
82302-56B00-000
LATCH ASSY,RR DR,L
JX |
82302-56B00-000 |
— | ||
|
3
|
3
82301-56B00-000
LATCH ASSY,RR DR,R
JLX |
82301-56B00-000 |
— | ||
|
4
|
4
82370-58B00-000 ACTUATOR,RR DR LATCH,RJLX |
82370-58B00-000 |
US $440 |
||
|
5
|
5
82302-58B00-000 LATCH ASSY,RR DR,LJLX |
82302-58B00-000 |
US $478.40 |
||
|
6
|
6
82380-58B00-000 ACTUATOR,RR DR LATCH,LJLX |
82380-58B00-000 |
US $268.64 |
||
|
7
|
7
02122-56163-000
SCREW
|
02122-56163-000 |
— | ||
| replacement | |||||
|
7
|
7
02122-5616B-000 SCREW |
02122-5616B-000 |
US $0.80 |
||
|
8
|
8
09138-06026-000 SCREW(6X16)Screw, fender center JLX |
09138-06026-000 |
from US $3.37 |
||
|
9
|
9
78199-78000-000 SPACER,DOOR LOCK STRIKER |
78199-78000-000 |
US $1.60 |
||
|
10
|
10
82610-60A00-000
ストライカ,ドアラッチ
|
82610-60A00-000 |
— | ||
| replacement | |||||
|
10
|
10
82610-60A01-000 STRIKER,FR DOOR LATCH |
82610-60A01-000 |
US $21.60 |
||
|
11
|
11
09137-08006-000
Screw
|
09137-08006-000 |
— | ||
| replacements | |||||
|
11
|
11
09137-08011-000 SCREW(8X18) |
09137-08011-000 |
US $1.44 |
||
|
11
|
11
09137-08004-000 SCREW(8X18) |
09137-08004-000 |
from US $0.90 |
||
|
12
|
12
82830-56B00-5PK HANDLE,REAR DOOR OUT,RBLACK,JX |
82830-56B00-5PK |
US $75.81 |
||
|
12
|
12
82830-56B00-0DG
HANDLE,REAR DOOR OUT,R
BLACK,JLX |
82830-56B00-0DG |
— | ||
|
12
|
12
82830-56B00-0FT
HANDLE,REAR DOOR OUT,R
RED,JLX |
82830-56B00-0FT |
— | ||
| replacement | |||||
|
12
|
12
82830-56B00-5PK HANDLE,REAR DOOR OUT,RRED,JLX |
82830-56B00-5PK |
US $75.81 |
||
|
12
|
12
82830-56B00-0VP
HANDLE,REAR DOOR OUT,R
GREEN,JLX |
82830-56B00-0VP |
— | ||
|
12
|
12
82830-56B00-1FG
ハンドル,リヤドアアウト,ライト(ブルー)
BLUE,JLX |
82830-56B00-1FG |
— | ||
|
12
|
12
82830-56B00-1PU
Handle, outer rh
MAGENTA,JLX |
82830-56B00-1PU |
— | ||
|
12
|
12
82830-56B00-1PV
Handle, outer rh
GREEN,JLX |
82830-56B00-1PV |
— | ||
|
12
|
12
82830-56B00-15P
Handle, outer rh
RED,JLX |
82830-56B00-15P |
— | ||
|
12
|
12
82830-56B00-26U
HANDLE,REAR DOOR OUT,R
WHITE,JLX |
82830-56B00-26U |
— | ||
| replacement | |||||
|
12
|
12
82830-56B00-5PK HANDLE,REAR DOOR OUT,RWHITE,JLX |
82830-56B00-5PK |
US $75.81 |
||
|
12
|
12
82830-56B00-38B
Handle comp,rear door out,r
GRAY,JLX |
82830-56B00-38B |
— | ||
|
13
|
13
82840-56B00-5PK HANDLE,REAR DOOR OUT,LBLACK,JX |
82840-56B00-5PK |
US $75.81 |
||
|
13
|
13
82840-56B00-0DG
HANDLE,REAR DOOR OUT,L
BLACK,JLX |
82840-56B00-0DG |
— | ||
|
13
|
13
82840-56B00-0FT
HANDLE,REAR DOOR OUT,L
RED,JLX |
82840-56B00-0FT |
— | ||
|
13
|
13
82840-56B00-0VP
ハンドル,リヤドアアウト,レフト(グリーン)
GREEN,JLX |
82840-56B00-0VP |
— | ||
| replacement | |||||
|
13
|
13
82840-56B00-5PK HANDLE,REAR DOOR OUT,LGREEN,JLX |
82840-56B00-5PK |
US $75.81 |
||
|
13
|
13
82840-56B00-1FG
ハンドル,リヤドアアウト,レフト(ブルー)
BLUE,JLX |
82840-56B00-1FG |
— | ||
| replacement | |||||
|
13
|
13
82840-56B00-5PK HANDLE,REAR DOOR OUT,LBLUE,JLX |
82840-56B00-5PK |
US $75.81 |
||
|
13
|
13
82840-56B00-1PU
Handle, outer lh
MAGENTA,JLX |
82840-56B00-1PU |
— | ||
|
13
|
13
82840-56B00-1PV
Handle, outer lh
GREEN,JLX |
82840-56B00-1PV |
— | ||
|
13
|
13
82840-56B00-15P
Handle, outer lh
RED,JLX |
82840-56B00-15P |
— | ||
|
13
|
13
82840-56B00-26U HANDLE,REAR DOOR OUT,LWHITE,JLX |
82840-56B00-26U |
US $101.20 |
||
|
13
|
13
82840-56B00-38B
HANDLE,REAR DOOR OUT,L
GRAY,JLX |
82840-56B00-38B |
— | ||
|
14
|
14
82816-60A00-000
RUBBER,STOP
|
82816-60A00-000 |
— | ||
|
15
|
15
09209-05017-000 PINConnector |
09209-05017-000 |
US $14.70 |
||
|
16
|
16
82828-56B00-000 HOLDER,ROD,L |
82828-56B00-000 |
US $2.72 |
||
|
17
|
17
82973-60A01-5ES
Knob, inside handle
BLACK |
82973-60A01-5ES |
— | ||
| replacement | |||||
|
17
|
17
82973-60A01-5PK
KNOB,FR DR INSIDE LOCK
BLACK |
82973-60A01-5PK |
— | ||
|
18
|
18
08316-20063-000
Nut
|
08316-20063-000 |
— | ||
| replacement | |||||
|
18
|
18
08316-2006A-000 NUT |
08316-2006A-000 |
from US $0.76 |
||
|
19
|
19
77591-75000-000 PAD |
77591-75000-000 |
US $2.28 |
||
|
20
|
20
83140-56B01-5ES HANDLE,RR DOOR INSIDE,RBLACK |
83140-56B01-5ES |
US $32.02 |
||
|
21
|
21
83119-60F00-000 SNAP,DOOR INSIDE HANDLE |
83119-60F00-000 |
US $1.60 |
||
|
22
|
22
83160-56B01-5ES HANDLE,RR DOOR INSIDE,LBLACK |
83160-56B01-5ES |
US $32.02 |
||
|
23
|
23
83119-60F00-000 SNAP,DOOR INSIDE HANDLE |
83119-60F00-000 |
US $1.60 |
||
|
24
|
24
09148-06007-000 NUT |
09148-06007-000 |
from US $0.86 |
||
|
25
|
25
03121-05163-000
Screw
|
03121-05163-000 |
— | ||
| replacement | |||||
|
25
|
25
03121-0516A-000 SCREW |
03121-0516A-000 |
from US $0.80 |
||
|
26
|
26
83240-56B00-000
ロッド,リヤドアインサイドロック,ライト
|
83240-56B00-000 |
— | ||
|
27
|
27
83250-56B00-000
ROD,RR DOOR INSIDE LOCK,L
|
83250-56B00-000 |
— | ||
|
28
|
28
83261-56B00-000 PIN,FR DOOR INSIDE LOCK ROD |
83261-56B00-000 |
US $2.65 |
||
|
29
|
29
83271-50E00-000 CLIP,DR HANDLE ROD |
83271-50E00-000 |
US $1.60 |
||
|
30
|
30
82491-56B00-000 CAUTION PLATE,CHILD LOCK,DR |
82491-56B00-000 |
US $3.09 |
||
|
31
|
31
83795-60A00-5ES CAP,INSIDE LOCK KNOBBLACK,JX |
83795-60A00-5ES |
US $3.04 |
||
