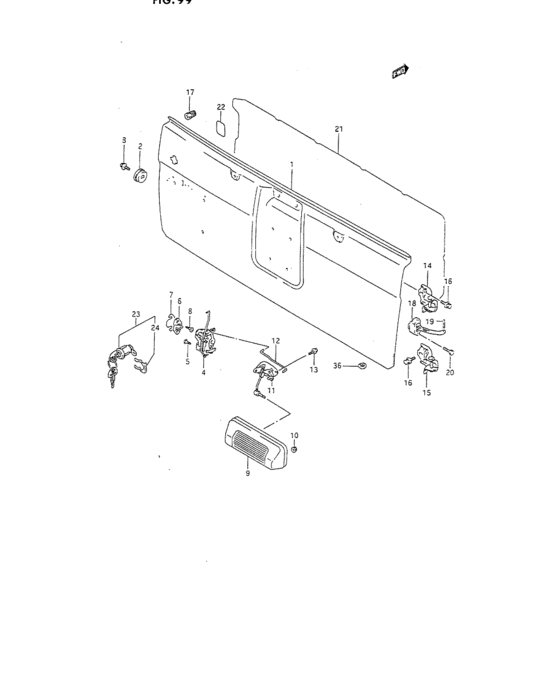

Rear gate (3DR:C) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- transmission
- AT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
67700-63A20-000
PANEL ASSY,REAR GATE
|
67700-63A20-000 |
— | ||
|
2
|
2
82761-85C00-000
Male, stop
|
82761-85C00-000 |
— | ||
|
3
|
3
09118-08128-000 BOLT(8X16)Bolt, front fender, front |
09118-08128-000 |
US $1.28 |
||
|
4
|
4
82530-60A10-000 LATCH ASSY,RR GATE |
82530-60A10-000 |
US $144 |
||
|
5
|
5
02122-56163-000
SCREW
|
02122-56163-000 |
— | ||
| replacement | |||||
|
5
|
5
02122-5616B-000 SCREW |
02122-5616B-000 |
US $0.80 |
||
|
6
|
6
82660-61A00-000
ストライカ,バックドアラッチ
|
82660-61A00-000 |
— | ||
| replacement | |||||
|
6
|
6
82660-61A01-000 STRIKER,BACK DOOR LATCH |
82660-61A01-000 |
US $43.20 |
||
|
7
|
7
78199-78000-000 SPACER,DOOR LOCK STRIKER |
78199-78000-000 |
US $1.60 |
||
|
8
|
8
09137-08006-000
Screw
|
09137-08006-000 |
— | ||
| replacements | |||||
|
8
|
8
09137-08011-000 SCREW(8X18) |
09137-08011-000 |
US $1.44 |
||
|
8
|
8
09137-08004-000 SCREW(8X18) |
09137-08004-000 |
from US $0.90 |
||
|
9
|
9
82850-85C00-5PK
Handle, door out
BLACK,JX |
82850-85C00-5PK |
— | ||
|
9
|
9
82850-85C00-0DG
Handle, door outer
BLACK,JLX |
82850-85C00-0DG |
— | ||
|
9
|
9
82850-85C00-0FT
Handle, door outer
RED,JLX |
82850-85C00-0FT |
— | ||
|
9
|
9
82850-85C00-0VP
Handle, door outer
GREEN,JLX |
82850-85C00-0VP |
— | ||
|
9
|
9
82850-85C00-1FG
Handle, door outer
BLUE,JLX |
82850-85C00-1FG |
— | ||
|
9
|
9
82850-85C00-1PU
Handle, door outer
MAGENTA,JLX |
82850-85C00-1PU |
— | ||
|
9
|
9
82850-85C00-1PV
Handle, door outer
GREEN,JLX |
82850-85C00-1PV |
— | ||
|
9
|
9
82850-85C00-15P
Handle, door outer
RED,JLX |
82850-85C00-15P |
— | ||
|
9
|
9
82850-85C00-26U
Handle, door outer
WHITE,JLX |
82850-85C00-26U |
— | ||
|
9
|
9
82850-85C00-38B
Handle, door outer
GRAY,JLX |
82850-85C00-38B |
— | ||
|
10
|
10
08316-20063-000
Nut
|
08316-20063-000 |
— | ||
| replacement | |||||
|
10
|
10
08316-2006A-000 NUT |
08316-2006A-000 |
from US $0.76 |
||
|
11
|
11
83190-60A10-000 LINK,RR GATE INSIDE |
83190-60A10-000 |
US $56 |
||
|
12
|
12
83195-85C00-000
Rod, rr gate latch
|
83195-85C00-000 |
— | ||
|
13
|
13
02112-76123-000
Screw
|
02112-76123-000 |
— | ||
| replacement | |||||
|
13
|
13
02112-7612B-000 SCREW |
02112-7612B-000 |
from US $0.96 |
||
|
14
|
14
67730-85C00-000
Hinge, rr gate upper
|
67730-85C00-000 |
— | ||
|
15
|
15
69520-85C00-000
Hinge, rr gate lower
|
69520-85C00-000 |
— | ||
|
16
|
16
09118-08156-000 BOLT(8X25) |
09118-08156-000 |
US $19.50 |
||
|
17
|
17
72372-85C00-000
Cushion
|
72372-85C00-000 |
— | ||
|
18
|
18
72850-60A11-000 STOP,RR GATE OPEN |
72850-60A11-000 |
US $48 |
||
|
19
|
19
81831-70B00-000 PIN,DOOR OPEN STOPPER BODY |
81831-70B00-000 |
US $1.60 |
||
|
20
|
20
01580-06203-000
Bolt
|
01580-06203-000 |
— | ||
| replacement | |||||
|
20
|
20
01580-0620B-000 BOLT |
01580-0620B-000 |
from US $4.49 |
||
|
21
|
21
83911-60X50-000
カバー,ドアシーリング,600X1200
|
83911-60X50-000 |
— | ||
| replacement | |||||
|
21
|
21
83911-60X52-000 COVER,DR SEALING |
83911-60X52-000 |
US $6.06 |
||
|
22
|
22
72893-60A10-000 SEAL,RR GATE |
72893-60A10-000 |
US $1.60 |
||
|
23
|
23
82500-60821-000 CYLINDER,RR GATE LOCK |
82500-60821-000 |
US $80.56 |
||
|
24
|
24
82577-61A00-000 RETAINER,RR GATE LATCH |
82577-61A00-000 |
US $11.20 |
||
