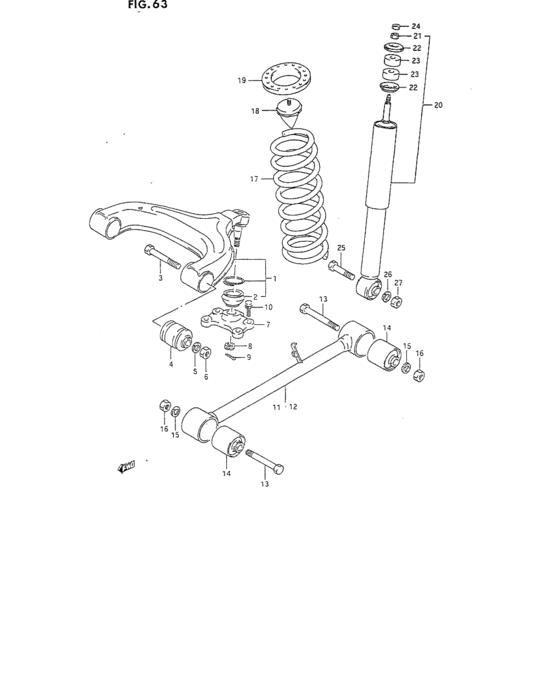

Rear suspension (REAR SUSPENSION) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- transmission
- AT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46200-56B00-000
アームアッシ,リヤサスペンション,アッパ
|
46200-56B00-000 |
— | ||
| replacement | |||||
|
1
|
1
46200-50830-000 ARM SET,RR SPNSN |
46200-50830-000 |
US $443.20 |
||
|
2
|
2
46206-60A00-000
SEAL SET,REAR SUSPENSION ARM
|
46206-60A00-000 |
— | ||
| replacements | |||||
|
2
|
2
46206-60A01-000
Seal Set,rear Suspension Arm
|
46206-60A01-000 |
— | ||
|
2
|
2
46200-60850-000 Seal Set,rr Suspension Arm |
46200-60850-000 |
US $23 |
||
|
3
|
3
09103-12048-000 BOLT(12X90) |
09103-12048-000 |
US $8.48 |
||
|
4
|
4
43215-85C00-000
Silentblock
|
43215-85C00-000 |
— | ||
|
5
|
5
08321-01123-000
Washer
|
08321-01123-000 |
— | ||
| replacement | |||||
|
5
|
5
08321-0112A-000 WASHER,LOCK |
08321-0112A-000 |
from US $0.76 |
||
|
6
|
6
08310-00123-000
Nut
|
08310-00123-000 |
— | ||
| replacement | |||||
|
6
|
6
08310-0012A-000 NUT |
08310-0012A-000 |
from US $0.76 |
||
|
7
|
7
46411-60A00-000 BOSS,BALL JOINT |
46411-60A00-000 |
US $114 |
||
|
8
|
8
08314-40143-000
Nut
|
08314-40143-000 |
— | ||
| replacement | |||||
|
8
|
8
08314-4014B-000 NUTNut, hub |
08314-4014B-000 |
from US $6.78 |
||
|
9
|
9
04111-30208-000
Cotter pin
|
04111-30208-000 |
— | ||
| replacement | |||||
|
9
|
9
04111-3020A-000 PIN |
04111-3020A-000 |
from US $0.61 |
||
|
10
|
10
01570-10303-000
Bolt
|
01570-10303-000 |
— | ||
| replacement | |||||
|
10
|
10
01570-1030A-000 Bolt |
01570-1030A-000 |
from US $1.12 |
||
|
11
|
11
46310-85C00-000
Rod, trailing rh
|
46310-85C00-000 |
— | ||
|
12
|
12
46320-85C00-000
Rod, trailing lh
|
46320-85C00-000 |
— | ||
|
13
|
13
09103-12048-000 BOLT(12X90) |
09103-12048-000 |
US $8.48 |
||
|
14
|
14
46314-85C00-000
Silentblock
|
46314-85C00-000 |
— | ||
|
15
|
15
08321-01123-000
Washer
|
08321-01123-000 |
— | ||
| replacement | |||||
|
15
|
15
08321-0112A-000 WASHER,LOCK |
08321-0112A-000 |
from US $0.76 |
||
|
16
|
16
08310-00123-000
Nut
|
08310-00123-000 |
— | ||
| replacement | |||||
|
16
|
16
08310-0012A-000 NUT |
08310-0012A-000 |
from US $0.76 |
||
|
17
|
17
41311-85C00-000
Spring, rear coil
3DR |
41311-85C00-000 |
— | ||
|
17
|
17
41311-56B01-000 SPRING,REAR COIL5DR |
41311-56B01-000 |
US $115.18 |
||
|
18
|
18
42110-85C00-000
Stopper, bump
N/WIDE |
42110-85C00-000 |
— | ||
|
18
|
18
42150-85C30-000
Stopper, rear bump
W/WIDE |
42150-85C30-000 |
— | ||
|
19
|
19
41211-60A00-000 SEAT,COIL SPRING RUBBER |
41211-60A00-000 |
from US $11.63 |
||
|
20
|
20
41700-85C00-000
Absorber assy, rear shock
3DR |
41700-85C00-000 |
— | ||
|
20
|
20
41700-56B00-000
アブソーバアッシ,ショック,リヤ
5DR |
41700-56B00-000 |
— | ||
| replacements | |||||
|
20
|
20
41700-77E00-000
ABSORBER ASSY,RR SHOCK
5DR |
41700-77E00-000 |
— | ||
|
20
|
20
41700-77E01-000 Absorber Assy,rr Shock5DR |
41700-77E01-000 |
US $372.80 |
||
|
21
|
21
08310-00103-000
Nut
|
08310-00103-000 |
— | ||
| replacements | |||||
|
21
|
21
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.80 |
||
|
21
|
21
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
|
22
|
22
09165-10003-000 WASHER |
09165-10003-000 |
US $22.40 |
||
|
23
|
23
09320-10040-000 BUSHING |
09320-10040-000 |
from US $3.13 |
||
|
24
|
24
08310-00103-000
Nut
|
08310-00103-000 |
— | ||
| replacements | |||||
|
24
|
24
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.80 |
||
|
24
|
24
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
|
25
|
25
09100-12067-000
Bolt
|
09100-12067-000 |
— | ||
| replacement | |||||
|
25
|
25
09100-12057-000 BOLT(12X61) |
09100-12057-000 |
from US $2.72 |
||
|
26
|
26
08321-01123-000
Washer
|
08321-01123-000 |
— | ||
| replacement | |||||
|
26
|
26
08321-0112A-000 WASHER,LOCK |
08321-0112A-000 |
from US $0.76 |
||
|
27
|
27
08310-00123-000
Nut
|
08310-00123-000 |
— | ||
| replacement | |||||
|
27
|
27
08310-0012A-000 NUT |
08310-0012A-000 |
from US $0.76 |
||
