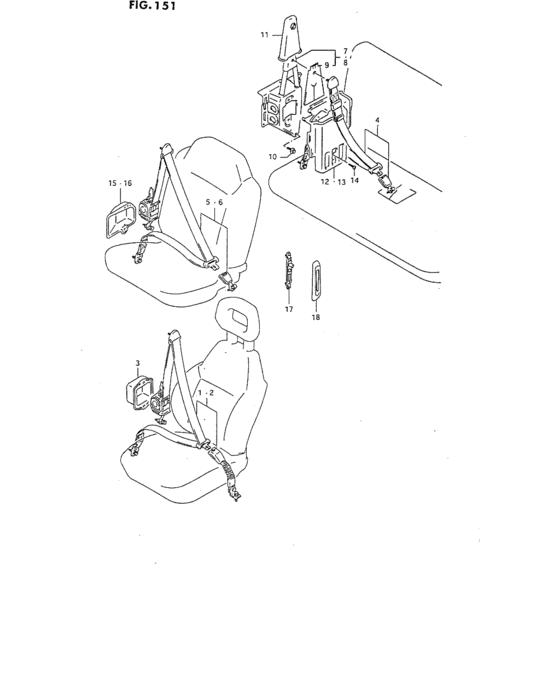

Seat belt (3DR) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- transmission
- AT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
84901-71E50-5FJ
BELT ASSY,FR SEAT,R
BLACK,JX |
84901-71E50-5FJ |
— | ||
|
1
|
1
84901-71E20-5FJ
Belt assy,front seat,r
BLACK,JLX |
84901-71E20-5FJ |
— | ||
|
2
|
2
84902-71E50-5FJ
Belt assy,front seat,l
BLACK,JX |
84902-71E50-5FJ |
— | ||
|
2
|
2
84902-71E20-5FJ
BELT ASSY,FR SEAT,L
BLACK,JLX |
84902-71E20-5FJ |
— | ||
|
3
|
3
84924-63A10-000
COVER,SEAT BELT ELR DUST
|
84924-63A10-000 |
— | ||
|
4
|
4
84904-60A62-5FJ
Belt assy, rear
BLACK,JX |
84904-60A62-5FJ |
— | ||
|
4
|
4
84904-60A22-5FJ
BELT ASSY,RR SEAT
BLACK,JLX |
84904-60A22-5FJ |
— | ||
|
5
|
5
84904-61A62-5FJ
Belt assy, rear rh
BLACK,JX |
84904-61A62-5FJ |
— | ||
|
5
|
5
84904-61A22-5FJ
BELT ASSY,RR SEAT,R
BLACK,JLX |
84904-61A22-5FJ |
— | ||
|
6
|
6
84905-61A62-5FJ
Belt assy, rear lh
BLACK,JX |
84905-61A62-5FJ |
— | ||
|
6
|
6
84905-61A22-5FJ
BELT ASSY,RR SEAT,L
BLACK,JLX |
84905-61A22-5FJ |
— | ||
|
7
|
7
87850-60A50-000
STAY,REAR SHOULDER ANCHOR,R
|
87850-60A50-000 |
— | ||
|
8
|
8
87860-60A50-000
STAY,REAR SHOULDER ANCHOR,L
|
87860-60A50-000 |
— | ||
|
9
|
9
84958-60A10-000
PAD,REAR SHOULDER ANCHOR
|
84958-60A10-000 |
— | ||
|
10
|
10
01550-08163-000
Bolt, holder
|
01550-08163-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0816B-000 BOLT |
01550-0816B-000 |
from US $0.91 |
||
|
10
|
10
01550-0816A-000 BOLTBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
|
11
|
11
84955-85C10-5ES
Cover, shoulder anc
BLACK |
84955-85C10-5ES |
— | ||
|
12
|
12
84956-85C10-5ES
Trim, shoulder anc rh
BLACK |
84956-85C10-5ES |
— | ||
|
13
|
13
84966-85C10-5ES
Trim, shoulder anc lh
BLACK |
84966-85C10-5ES |
— | ||
|
14
|
14
03241-16163-000
Screw, front fender
|
03241-16163-000 |
— | ||
| replacement | |||||
|
14
|
14
03241-1616B-000 SCREW |
03241-1616B-000 |
US $13.60 |
||
|
15
|
15
84925-61A10-000
COVER,RR BELT ELR DUST,R
|
84925-61A10-000 |
— | ||
|
16
|
16
84926-61A10-000
COVER,RR BELT ELR DUST,L
|
84926-61A10-000 |
— | ||
|
17
|
17
84991-70E00-5ES
Adjuster, front shoulder (blac
JLX:Switzerland,Austria |
84991-70E00-5ES |
— | ||
|
18
|
18
84992-50E00-5ES
Cover, shoulder adjuster (blac
JLX:Switzerland,Austria |
84992-50E00-5ES |
— | ||
