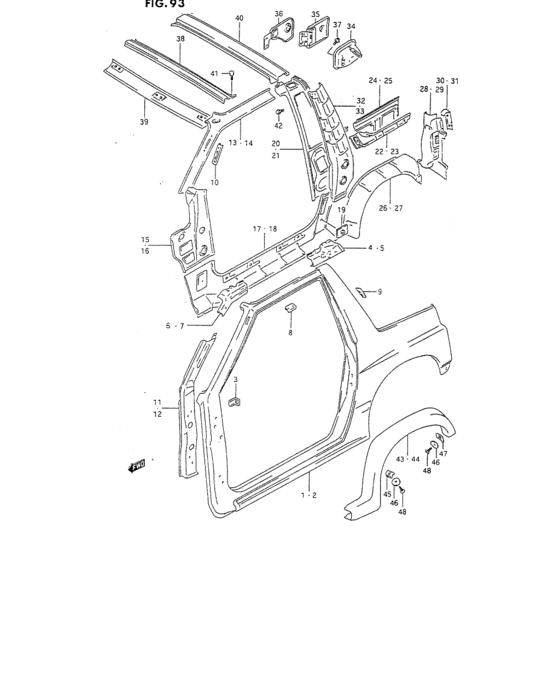

Side body (3DR:C) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- transmission
- AT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
64111-60A50-000
PANEL,SIDE BODY OUTER,R
LHD |
64111-60A50-000 |
— | ||
|
1
|
1
64111-60A30-000
PANEL,SIDE BODY OUTER,R
RHD |
64111-60A30-000 |
— | ||
|
2
|
2
64511-60A50-000
PANEL,SIDE BODY OUTER,L
LHD |
64511-60A50-000 |
— | ||
|
2
|
2
64511-60A10-000
PANEL,SIDE BODY OUTER,L
RHD |
64511-60A10-000 |
— | ||
|
3
|
3
64214-60A00-000 BRACKET,COWL SIDE GARNISH RR |
64214-60A00-000 |
US $3.64 |
||
|
4
|
4
64215-60A02-000 EXTENSION,SIDE BODY,R |
64215-60A02-000 |
US $21.90 |
||
|
5
|
5
64515-60A02-000 EXTENSION,SIDE BODY,L |
64515-60A02-000 |
US $21.90 |
||
|
6
|
6
64216-60A00-000 REINFORCEMENT,FR PILLAR UPR,R |
64216-60A00-000 |
US $22.82 |
||
|
7
|
7
64516-60A00-000 REINFORCEMENT,FR PILLAR UPR,L |
64516-60A00-000 |
US $22.82 |
||
|
8
|
8
64217-60A00-000 REINFORCEMENT,SOFT TOP HNG |
64217-60A00-000 |
US $6.48 |
||
|
9
|
9
64218-60A00-000
REINFORCEMENT,SOFT TOP SIDE
|
64218-60A00-000 |
— | ||
|
10
|
10
64151-60A00-000 REINFORCEMENT,RADIO ANTENNA |
64151-60A00-000 |
US $6.59 |
||
|
11
|
11
64120-60A10-000
リンフォースメント,フロントピラー,ライト
|
64120-60A10-000 |
— | ||
| replacement | |||||
|
11
|
11
64120-60A11-000 REINFORCEMENT,FR PILLAR,R |
64120-60A11-000 |
US $110.21 |
||
|
12
|
12
64520-60A10-000
リンフォースメント,フロントピラー,レフト
|
64520-60A10-000 |
— | ||
| replacement | |||||
|
12
|
12
64520-60A11-000 REINFORCEMENT,FR PILLAR,L |
64520-60A11-000 |
US $127.70 |
||
|
13
|
13
63111-60A10-000
PANEL,ROOF SIDE INR,R
JX |
63111-60A10-000 |
— | ||
|
13
|
13
63111-60A20-000
PANEL,ROOF SIDE INR,R
JLX |
63111-60A20-000 |
— | ||
|
14
|
14
63511-60A00-000 PANEL,ROOF SIDE INR,LJX |
63511-60A00-000 |
US $60.72 |
||
|
14
|
14
63511-60A30-000 PANEL,ROOF SIDE INR,LJLX |
63511-60A30-000 |
US $60.72 |
||
|
15
|
15
61480-62A10-000
Panel,fr pilla inr lwr,r
|
61480-62A10-000 |
— | ||
|
16
|
16
61580-62A00-000
Panel comp,fr pillar inr lwr,l
|
61580-62A00-000 |
— | ||
|
17
|
17
61490-60A00-000
PANEL,SILL SIDE INNER,R
|
61490-60A00-000 |
— | ||
|
18
|
18
61590-60A00-000 PANEL,SILL SIDE INNER,L |
61590-60A00-000 |
US $200 |
||
|
19
|
19
61492-80000-000
リンフォースメント,シートベルト,ロア
|
61492-80000-000 |
— | ||
| replacement | |||||
|
19
|
19
61492-80010-000 REINFORCEMENT,SEAT BELT LOWER |
61492-80010-000 |
US $5.63 |
||
|
20
|
20
63210-62A00-000
パネル,センタピラーインナ,ライト
|
63210-62A00-000 |
— | ||
|
20
|
20
63210-62A20-000
PANEL,CTR PILLAR INNER,R
Switzerland,Austria |
63210-62A20-000 |
— | ||
|
21
|
21
63610-62A00-000
パネル,センタピラーインナ,レフト
|
63610-62A00-000 |
— | ||
|
21
|
21
63610-62A20-000
PANEL,CTR PILLAR INNER,L
Switzerland,Austria |
63610-62A20-000 |
— | ||
|
22
|
22
63221-60A10-000 REINFORCEMENT,RR QTR INR,R |
63221-60A10-000 |
US $57.04 |
||
|
23
|
23
63621-60A10-000 REINFORCEMENT,RR QTR INR,L |
63621-60A10-000 |
US $62.93 |
||
|
24
|
24
63310-60A10-000 PANEL,RR QUARTER INNER,R |
63310-60A10-000 |
US $124.38 |
||
|
25
|
25
63710-60A10-000
PANEL,RR QUARTER INNER,L
|
63710-60A10-000 |
— | ||
|
26
|
26
63410-60A00-000 PANEL,WHEEL HOUSING OUTER,R |
63410-60A00-000 |
US $209.60 |
||
|
27
|
27
63811-60A00-000 PANEL,RR WHEEL HSG OTR,L |
63811-60A00-000 |
US $209.60 |
||
|
28
|
28
64310-60A00-000 PANEL,RR PILLAR OUTER,R |
64310-60A00-000 |
US $363.20 |
||
|
29
|
29
64710-60A10-000 PANEL,RR PILLAR OUTER,L |
64710-60A10-000 |
US $176 |
||
|
30
|
30
65965-60A00-000 GARNISH,RR PLR,R |
65965-60A00-000 |
US $21.90 |
||
|
31
|
31
65966-60A00-000 GARNISH,RR PLR,L |
65966-60A00-000 |
US $21.90 |
||
|
32
|
32
64250-60A00-000
REINFORCEMENT,CTR PILLAR,R
|
64250-60A00-000 |
— | ||
|
32
|
32
64250-62A20-000
REINFORCEMENT,CTR PILLAR,R
Switzerland,Austria |
64250-62A20-000 |
— | ||
|
33
|
33
64550-60A00-000
リンフォースメント,センタピラー,レフト
|
64550-60A00-000 |
— | ||
|
33
|
33
64550-62A20-000
REINFORCEMENT,CTR PILLAR,L
Switzerland,Austria |
64550-62A20-000 |
— | ||
|
34
|
34
64230-60A00-000 BOX,FUEL INLET |
64230-60A00-000 |
US $41.95 |
||
|
35
|
35
65950-60A00-000 LID,FUEL INLETN/WIDE |
65950-60A00-000 |
US $47.10 |
||
|
36
|
36
77140-85C00-799
Lid, fuel inlet
PRIMARY COAT,W/WIDE (PAINT TO MAT |
77140-85C00-799 |
— | ||
|
37
|
37
02142-05123-000
Screw 5x12
|
02142-05123-000 |
— | ||
| replacement | |||||
|
37
|
37
02142-0512A-000 SCREWScrew, lower |
02142-0512A-000 |
from US $0.80 |
||
|
38
|
38
65110-60A00-000 PANEL,FR PILLAR JOINT |
65110-60A00-000 |
US $81.33 |
||
|
39
|
39
65115-60A00-000 PANEL,FR PILLAR JOINT INNERJX |
65115-60A00-000 |
US $59.25 |
||
|
39
|
39
65115-60A10-000
PANEL,FR PILLAR JOINT INNER
JLX |
65115-60A10-000 |
— | ||
|
40
|
40
65120-60A10-000 PANEL,CTR PILLAR JOINT |
65120-60A10-000 |
US $119.23 |
||
|
41
|
41
09136-06078-000
スクリュ,6X10
|
09136-06078-000 |
— | ||
| replacements | |||||
|
41
|
41
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.80 |
||
|
41
|
41
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
42
|
42
02142-06103-000
Screw
Switzerland,Austria |
02142-06103-000 |
— | ||
| replacements | |||||
|
42
|
42
02142-0610B-000 SCREWStopper, cl rlse cam shaft Switzerland,Austria |
02142-0610B-000 |
from US $0.76 |
||
|
42
|
42
02142-0610A-000 SCREWSwitzerland,Austria |
02142-0610A-000 |
from US $0.80 |
||
|
43
|
43
77212-85C00-799
Extension, rr fender rh
PRIMARY COAT,W/WIDE (PAINT TO MAT |
77212-85C00-799 |
— | ||
|
44
|
44
77222-85C00-799
Extension, rr fender lh
PRIMARY COAT,W/WIDE (PAINT TO MAT |
77222-85C00-799 |
— | ||
|
45
|
45
77214-85C00-000
Nut, rr extension
W/WIDE |
77214-85C00-000 |
— | ||
|
46
|
46
77215-85C00-000
Washer, extension
W/WIDE |
77215-85C00-000 |
— | ||
|
47
|
47
77216-85C00-000
Nut, rr extension no.2
W/WIDE |
77216-85C00-000 |
— | ||
|
48
|
48
03241-04203-000
Screw, rr extension
W/WIDE |
03241-04203-000 |
— | ||
