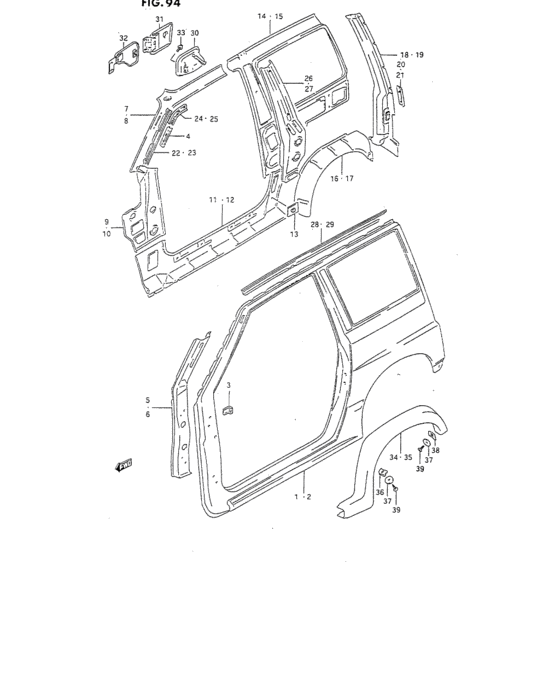

Side body (3DR:V) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- transmission
- AT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
64111-61A10-000
PANEL,SIDE BODY OUTER,R
LHD |
64111-61A10-000 |
— | ||
|
1
|
1
64111-61A30-000
Panel,side body outer,r
RHD |
64111-61A30-000 |
— | ||
|
2
|
2
64511-61A30-000 PANEL,SIDE BODY OUTER,LLHD |
64511-61A30-000 |
US $577.28 |
||
|
2
|
2
64511-61A10-000
Panel,side body outer,l
RHD |
64511-61A10-000 |
— | ||
|
3
|
3
64214-60A00-000 BRACKET,COWL SIDE GARNISH RR |
64214-60A00-000 |
US $3.64 |
||
|
4
|
4
64151-60A00-000 REINFORCEMENT,RADIO ANTENNA |
64151-60A00-000 |
US $6.59 |
||
|
5
|
5
64120-60A10-000
リンフォースメント,フロントピラー,ライト
|
64120-60A10-000 |
— | ||
| replacement | |||||
|
5
|
5
64120-60A11-000 REINFORCEMENT,FR PILLAR,R |
64120-60A11-000 |
US $110.21 |
||
|
6
|
6
64520-60A10-000
リンフォースメント,フロントピラー,レフト
|
64520-60A10-000 |
— | ||
| replacement | |||||
|
6
|
6
64520-60A11-000 REINFORCEMENT,FR PILLAR,L |
64520-60A11-000 |
US $127.70 |
||
|
7
|
7
63111-61A30-000 PANEL,ROOF SIDE INR,RJX |
63111-61A30-000 |
US $55.57 |
||
|
7
|
7
63111-61A20-000 PANEL,ROOF SIDE INR,RJLX |
63111-61A20-000 |
US $55.57 |
||
|
8
|
8
63511-61A30-000 PANEL,ROOF SIDE INR,LJX |
63511-61A30-000 |
US $60.72 |
||
|
8
|
8
63511-61A20-000
PANEL,ROOF SIDE INR,L
JLX |
63511-61A20-000 |
— | ||
|
9
|
9
61480-62A10-000
Panel,fr pilla inr lwr,r
|
61480-62A10-000 |
— | ||
|
10
|
10
61580-62A00-000
Panel comp,fr pillar inr lwr,l
|
61580-62A00-000 |
— | ||
|
11
|
11
61490-60A00-000
PANEL,SILL SIDE INNER,R
|
61490-60A00-000 |
— | ||
|
12
|
12
61590-60A00-000 PANEL,SILL SIDE INNER,L |
61590-60A00-000 |
US $200 |
||
|
13
|
13
61492-80000-000
リンフォースメント,シートベルト,ロア
|
61492-80000-000 |
— | ||
| replacement | |||||
|
13
|
13
61492-80010-000 REINFORCEMENT,SEAT BELT LOWER |
61492-80010-000 |
US $5.63 |
||
|
14
|
14
63210-63A10-000
PANEL,SIDE BODY INNER,R
JX |
63210-63A10-000 |
— | ||
|
14
|
14
63210-85C20-000
Panel, side body inner rh
JLX |
63210-85C20-000 |
— | ||
|
14
|
14
63210-63A70-000
PANEL,SIDE BODY INNER,R
Switzerland,Austria |
63210-63A70-000 |
— | ||
|
15
|
15
63610-63A10-000
Panel comp,side body inner,l
JX |
63610-63A10-000 |
— | ||
|
15
|
15
63610-63A20-000
パネル,サイドボディインナ,レフト
JLX |
63610-63A20-000 |
— | ||
|
15
|
15
63610-63A70-000
PANEL,SIDE BODY INNER,L
Switzerland,Austria |
63610-63A70-000 |
— | ||
|
16
|
16
63410-60A00-000 PANEL,WHEEL HOUSING OUTER,R |
63410-60A00-000 |
US $209.60 |
||
|
17
|
17
63811-60A00-000 PANEL,RR WHEEL HSG OTR,L |
63811-60A00-000 |
US $209.60 |
||
|
18
|
18
64310-61A01-000 PANEL,BACK PILLAR OUTER,R |
64310-61A01-000 |
US $189.52 |
||
|
19
|
19
64710-61A21-000
パネル,バックピラーアウタ,レフト
|
64710-61A21-000 |
— | ||
| replacement | |||||
|
19
|
19
64710-61A22-000 PANEL,BACK PILLAR OUTER,L |
64710-61A22-000 |
US $307.28 |
||
|
20
|
20
65965-61A00-000 GARNISH,BACK PLR,R |
65965-61A00-000 |
US $32.38 |
||
|
21
|
21
65966-61A00-000 GARNISH,BACK PLR,L |
65966-61A00-000 |
US $32.38 |
||
|
22
|
22
64130-61A00-000 PANEL,FRONT WINDOW SIDE,R |
64130-61A00-000 |
US $33.30 |
||
|
23
|
23
64530-61A00-000 PANEL,FRONT WINDOW SIDE,L |
64530-61A00-000 |
US $44.16 |
||
|
24
|
24
64141-61A00-000 REINFORCEMENT,FR PILLAR UPR,R |
64141-61A00-000 |
US $13.87 |
||
|
25
|
25
64541-61A00-000 REINFORCEMENT,FR PILLAR UPR,L |
64541-61A00-000 |
US $13.87 |
||
|
26
|
26
64250-61A00-000
REINFORCEMENT,CTR PILLAR,R
|
64250-61A00-000 |
— | ||
|
27
|
27
64650-61A00-000
REINFORCEMENT,CTR PILLAR,L
|
64650-61A00-000 |
— | ||
|
28
|
28
64241-61A00-000
RAIL,ROOF SIDE OUTER,R
|
64241-61A00-000 |
— | ||
|
29
|
29
64641-61A00-000
RAIL,ROOF SIDE OUTER,L
|
64641-61A00-000 |
— | ||
|
30
|
30
64230-60A00-000 BOX,FUEL INLETJX |
64230-60A00-000 |
US $41.95 |
||
|
30
|
30
64231-60A10-000
BOX,FUEL INLET
JLX |
64231-60A10-000 |
— | ||
|
31
|
31
65950-60A00-000 LID,FUEL INLETN/WIDE:JX |
65950-60A00-000 |
US $47.10 |
||
|
31
|
31
65950-60A20-000 LID,FUEL INLETN/WIDE:JLX |
65950-60A20-000 |
US $44.53 |
||
|
32
|
32
74140-85C10-799
Lid, fuel inlet
PRIMARY COAT,W/WIDE (PAINT TO MAT |
74140-85C10-799 |
— | ||
|
33
|
33
02142-05123-000
Screw 5x12
|
02142-05123-000 |
— | ||
| replacement | |||||
|
33
|
33
02142-0512A-000 SCREWScrew, lower |
02142-0512A-000 |
from US $0.80 |
||
|
34
|
34
77212-85C00-799
Extension, rr fender rh
PRIMARY COAT,W/WIDE (PAINT TO,MATCH) |
77212-85C00-799 |
— | ||
|
35
|
35
77222-85C00-799
Extension, rr fender lh
PRIMARY COAT,W/WIDE (PAINT TO,MATCH) |
77222-85C00-799 |
— | ||
|
36
|
36
77214-85C00-000
Nut, rr extension
W/WIDE |
77214-85C00-000 |
— | ||
|
37
|
37
77215-85C00-000
Washer, extension
W/WIDE |
77215-85C00-000 |
— | ||
|
38
|
38
77216-85C00-000
Nut, rr extension no.2
W/WIDE |
77216-85C00-000 |
— | ||
|
39
|
39
03241-04203-000
Screw, rr extension
W/WIDE |
03241-04203-000 |
— | ||
