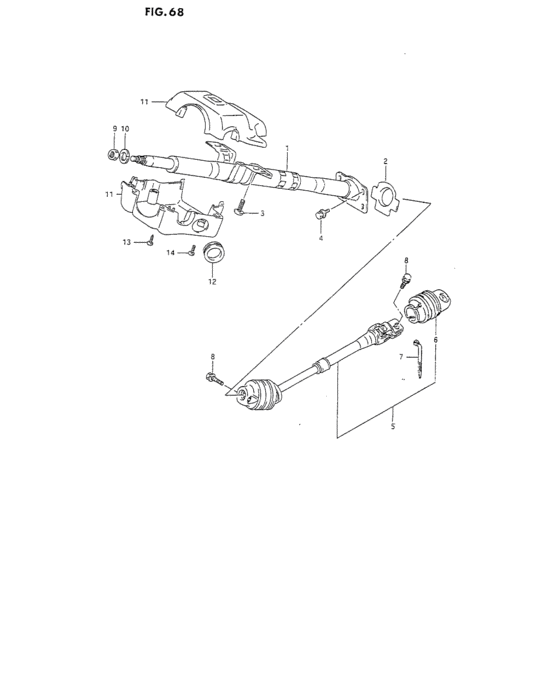

Steering column (JX) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- transmission
- AT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48200-60A82-000
COLUMN ASSY,COLPS STRG
|
48200-60A82-000 |
— | ||
|
2
|
2
48491-60A00-000 RUBBER,STRG COLUMN SEAL |
48491-60A00-000 |
US $3.53 |
||
|
3
|
3
09139-08015-000 SCREW(8X30) |
09139-08015-000 |
US $1.92 |
||
|
4
|
4
01570-08203-000
Bolt
|
01570-08203-000 |
— | ||
| replacements | |||||
|
4
|
4
01570-0820B-000 Bolt |
01570-0820B-000 |
US $17.30 |
||
|
4
|
4
01570-0820A-000 BOLT |
01570-0820A-000 |
from US $0.96 |
||
|
5
|
5
48220-57B62-000
SHAFT,COLPS STRG LOWER
LHD |
48220-57B62-000 |
— | ||
|
5
|
5
48220-56B62-000
SHAFT,COLPS STRG LOWER
RHD |
48220-56B62-000 |
— | ||
|
6
|
6
48228-60A00-000 BOOT,JOINT LOWER |
48228-60A00-000 |
from US $15.21 |
||
|
7
|
7
48229-60A00-000 STRAP,BOOT |
48229-60A00-000 |
US $2.40 |
||
|
8
|
8
48239-85C00-000
Bolt, joint
|
48239-85C00-000 |
— | ||
|
9
|
9
08310-00123-000
Nut
|
08310-00123-000 |
— | ||
| replacement | |||||
|
9
|
9
08310-0012A-000 NUT |
08310-0012A-000 |
from US $0.76 |
||
|
10
|
10
08321-01123-000
Washer
|
08321-01123-000 |
— | ||
| replacement | |||||
|
10
|
10
08321-0112A-000 WASHER,LOCK |
08321-0112A-000 |
from US $0.76 |
||
|
11
|
11
48400-85C00-5ES
Cover set, column
LHD |
48400-85C00-5ES |
— | ||
|
11
|
11
48400-60A10-5ES COVER SET,STRG COLUMNRHD |
48400-60A10-5ES |
US $116.80 |
||
|
12
|
12
48419-60A00-000 SEAL,STRG COVER |
48419-60A00-000 |
US $1.98 |
||
|
13
|
13
03211-05163-000
Screw
|
03211-05163-000 |
— | ||
| replacement | |||||
|
13
|
13
03211-0516A-000 SCREW |
03211-0516A-000 |
US $0.80 |
||
|
14
|
14
02112-05123-000
Screw 5x12
|
02112-05123-000 |
— | ||
| replacement | |||||
|
14
|
14
02112-0512A-000 SCREW |
02112-0512A-000 |
from US $0.80 |
||
