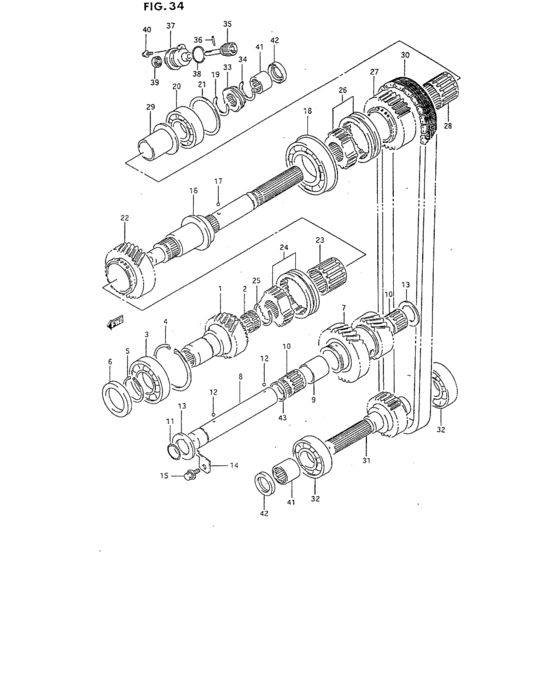

Transfer gear (TRANSFER GEAR) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- transmission
- AT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
29110-85C00-000
Gear, input
|
29110-85C00-000 |
— | ||
|
2
|
2
21915-85C60-000
Bearing
|
21915-85C60-000 |
— | ||
|
3
|
3
21911-85C30-000
Bearing
|
21911-85C30-000 |
— | ||
|
4
|
4
21933-85C70-000
Circlip
|
21933-85C70-000 |
— | ||
|
5
|
5
08331-31356-000
Circlip 35mm
|
08331-31356-000 |
— | ||
| replacement | |||||
|
5
|
5
08331-31359-000 CIRCLIP |
08331-31359-000 |
from US $4.45 |
||
|
6
|
6
09282-35002-000 SEAL,OIL(35X55X9) |
09282-35002-000 |
from US $10.08 |
||
|
7
|
7
29121-85C00-000
Gear, counter
|
29121-85C00-000 |
— | ||
|
8
|
8
29131-60A02-000 SHAFT,T/F COUNTER |
29131-60A02-000 |
US $44.16 |
||
|
9
|
9
09180-26004-000 SPACER(26X31X33.7) |
09180-26004-000 |
from US $3.74 |
||
|
10
|
10
21915-85C10-000
Bearing
|
21915-85C10-000 |
— | ||
|
11
|
11
09280-21008-000 O RING(D:2.5,ID:21)O ring (d:2.5,id:21) |
09280-21008-000 |
from US $0.95 |
||
|
12
|
12
06111-06003-000 BALL |
06111-06003-000 |
from US $0.76 |
||
|
13
|
13
09166-25012-000 WASHER |
09166-25012-000 |
from US $9.77 |
||
|
14
|
14
29136-60A01-000 PLATE,T/F COUNTER SHAFT |
29136-60A01-000 |
US $2.08 |
||
|
15
|
15
01570-08163-000
Bolt
|
01570-08163-000 |
— | ||
| replacement | |||||
|
15
|
15
01570-0816A-000 BOLT |
01570-0816A-000 |
from US $0.96 |
||
|
16
|
16
29141-60A00-000
Shaft,t/f output,rr
|
29141-60A00-000 |
— | ||
|
17
|
17
06111-06003-000 BALL |
06111-06003-000 |
from US $0.76 |
||
|
18
|
18
08173-62100-000 BEARING |
08173-62100-000 |
US $64.40 |
||
|
19
|
19
21933-85C40-000
Snap ring
|
21933-85C40-000 |
— | ||
|
20
|
20
09262-30077-000 BEARING(30X72X19)Bearing, sub t/m output, r |
09262-30077-000 |
from US $39.20 |
||
|
21
|
21
09181-62003-000 SHIM(62X71X0.1) |
09181-62003-000 |
from US $0.97 |
||
|
21
|
21
09181-62008-000 SHIM(62X71X0.2) |
09181-62008-000 |
from US $1.69 |
||
|
21
|
21
09181-62004-000 SHIM(62X71X0.3) |
09181-62004-000 |
from US $1.04 |
||
|
21
|
21
09181-62009-000 SHIM(62X71X0.4) |
09181-62009-000 |
US $16.20 |
||
|
21
|
21
09181-62005-000 SHIM(62X71X0.5) |
09181-62005-000 |
US $11.80 |
||
|
22
|
22
29211-85C00-000
Gear, output low
|
29211-85C00-000 |
— | ||
|
23
|
23
21915-85C50-000
Bearing
|
21915-85C50-000 |
— | ||
|
24
|
24
29230-85C00-000
Hub, reduction clutch
|
29230-85C00-000 |
— | ||
|
25
|
25
21933-85C50-000
Circlip
|
21933-85C50-000 |
— | ||
|
26
|
26
29230-60A10-000 HUB ASSY,FR DRIVE |
29230-60A10-000 |
US $127.70 |
||
|
27
|
27
29221-60A00-000 SPROCKET,T/F DRIVE |
29221-60A00-000 |
US $255.36 |
||
|
28
|
28
21915-85C50-000
Bearing
|
21915-85C50-000 |
— | ||
|
29
|
29
29222-60A00-000 BUSH,T/F SPROCKET |
29222-60A00-000 |
US $39.74 |
||
|
30
|
30
29225-60A01-000 CHAIN,T/F DRIVE |
29225-60A01-000 |
US $422.40 |
||
|
31
|
31
29151-60A00-000 SHAFT,T/F OUTPUT FR |
29151-60A00-000 |
US $237.12 |
||
|
32
|
32
09262-30077-000 BEARING(30X72X19)Bearing, sub t/m output, r |
09262-30077-000 |
from US $39.20 |
||
|
33
|
33
29411-60A01-000
GEAR,SPDOM DRIVE
|
29411-60A01-000 |
— | ||
|
34
|
34
21933-85C20-000
Circlip
|
21933-85C20-000 |
— | ||
|
35
|
35
29421-60A02-000 GEAR,SPDOM DRIVENNT:19 |
29421-60A02-000 |
US $66.40 |
||
|
36
|
36
09205-03022-000
Spring pin
|
09205-03022-000 |
— | ||
| replacement | |||||
|
36
|
36
09205-03028-000 PIN,SPRING(3X14)Pin, driveshaft spring |
09205-03028-000 |
US $12.50 |
||
|
37
|
37
29430-60810-000 CASE SET,SPEEDOMETER GEAR |
29430-60810-000 |
US $57.01 |
||
|
38
|
38
09280-24009-000 O RING(D:3.6,ID:23.5)O ring |
09280-24009-000 |
from US $10.85 |
||
|
39
|
39
09282-07001-000
SEAL,OIL(7X16X5)
|
09282-07001-000 |
— | ||
|
40
|
40
01550-06163-000
Bolt
|
01550-06163-000 |
— | ||
| replacements | |||||
|
40
|
40
01550-0616B-000 BOLT |
01550-0616B-000 |
from US $0.76 |
||
|
40
|
40
01550-0616A-000 BOLT |
01550-0616A-000 |
from US $0.76 |
||
|
41
|
41
09263-40006-000 BEARING(40X47X30) |
09263-40006-000 |
from US $33.93 |
||
|
42
|
42
09283-40021-000 SEAL,OIL(40X54X10)Oil seal, final drive,fr |
09283-40021-000 |
from US $12.83 |
||
|
43
|
43
29133-85C00-000
Ring, counter
|
29133-85C00-000 |
— | ||
