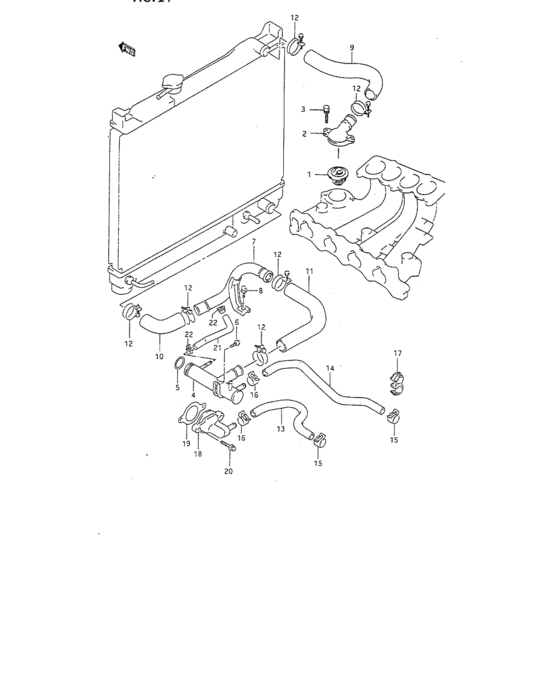

Water hose (WATER HOSE) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- transmission
- AT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17670-85C00-000
Thermostat, water
|
17670-85C00-000 |
— | ||
|
2
|
2
17561-58B00-000 CAP,WATER THERMOSTAT |
17561-58B00-000 |
from US $20.25 |
||
|
3
|
3
01550-08303-000
Bolt
|
01550-08303-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0830B-000 Bolt |
01550-0830B-000 |
from US $1.06 |
||
|
3
|
3
01550-0830A-000 BOLTBolt, mount oil seal cover |
01550-0830A-000 |
from US $1.12 |
||
|
4
|
4
17550-58B00-000 PIPE,WATER INLET |
17550-58B00-000 |
from US $78.86 |
||
|
5
|
5
09280-28008-000 O RING(D:3.5,ID:27.7) |
09280-28008-000 |
from US $0.63 |
||
|
6
|
6
01550-06103-000
Bolt, front
|
01550-06103-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
6
|
6
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
7
|
7
17860-60A10-000 PIPE,RDTR OUTLET |
17860-60A10-000 |
from US $35.69 |
||
|
8
|
8
01550-08123-000
Bolt
|
01550-08123-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0812B-000 BoltPlug, drain |
01550-0812B-000 |
from US $0.96 |
||
|
8
|
8
01550-0812A-000 BOLT |
01550-0812A-000 |
from US $0.91 |
||
|
9
|
9
17841-58B10-000
ホース,ラジエータ,インレット
|
17841-58B10-000 |
— | ||
| replacement | |||||
|
9
|
9
17841-60A00-000 HOSE,RADIATOR INLET |
17841-60A00-000 |
US $32.80 |
||
|
10
|
10
17851-85C00-000
Hose, radiator outlet no. 1
3DR |
17851-85C00-000 |
— | ||
|
10
|
10
17851-56B01-000
Hose, radiator outlet no.1
5DR |
17851-56B01-000 |
— | ||
| replacement | |||||
|
10
|
10
17851-83101-000 HOSE,RADIATOR OUTLET NO.15DR |
17851-83101-000 |
from US $13.07 |
||
|
11
|
11
17852-85C00-000
Hose, radiator outlet no. 2
|
17852-85C00-000 |
— | ||
|
12
|
12
09400-36312-000 CLAMP |
09400-36312-000 |
from US $1.53 |
||
|
13
|
13
17871-57B01-000
Hose, heater inlet
|
17871-57B01-000 |
— | ||
| replacement | |||||
|
13
|
13
17871-57B03-000 HOSE,HEATER INLET |
17871-57B03-000 |
from US $15.05 |
||
|
14
|
14
17872-85C00-000
Hose, heater outlet
|
17872-85C00-000 |
— | ||
|
15
|
15
11196-85C00-000
Clip, isc hose no.1
|
11196-85C00-000 |
— | ||
|
16
|
16
09401-18403-000 CLIPClip, heater hose |
09401-18403-000 |
US $1.92 |
||
|
17
|
17
09408-00117-000 CLAMP |
09408-00117-000 |
US $20.20 |
||
|
18
|
18
17570-57B00-000 CAP,WATER OUTLET |
17570-57B00-000 |
US $39.52 |
||
|
19
|
19
17699-60B02-000 GASKET,THERMO CASE |
17699-60B02-000 |
from US $3.94 |
||
|
20
|
20
01550-08253-000
Bolt, rear
|
01550-08253-000 |
— | ||
| replacements | |||||
|
20
|
20
01550-0825B-000 BOLT |
01550-0825B-000 |
from US $0.96 |
||
|
20
|
20
01550-0825A-000 BOLT |
01550-0825A-000 |
from US $1.06 |
||
|
21
|
21
17859-58B00-000
ホース,ウォータバイパス
|
17859-58B00-000 |
— | ||
| replacements | |||||
|
21
|
21
17859-58B01-000 HOSE,WATER BYPASS |
17859-58B01-000 |
US $15.04 |
||
|
21
|
21
09401-12410-000 CLIPClip, filter outlet |
09401-12410-000 |
from US $1.19 |
||
|
22
|
22
17879-85C00-000
Clip, 3 way side
|
17879-85C00-000 |
— | ||
