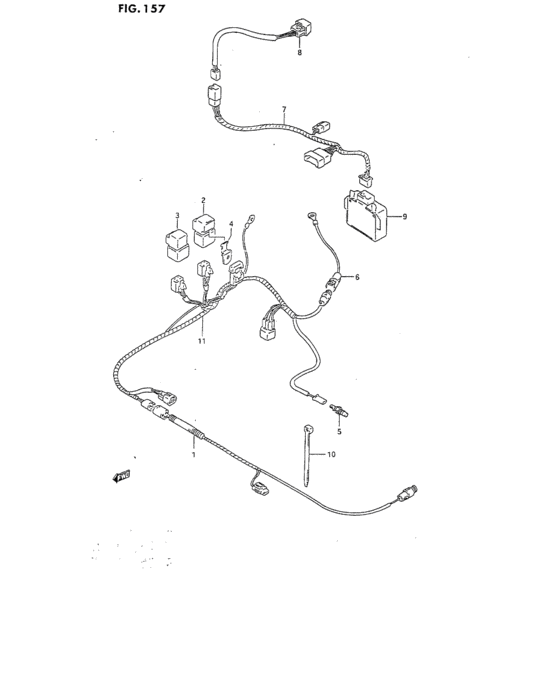

Wiring harness (RHD) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- transmission
- AT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
95583-67A00-000
ハーネス,エアコンジョイント
3DR |
95583-67A00-000 |
— | ||
|
1
|
1
95583-58B00-000
HARNESS,A/C JOINT
5DR |
95583-58B00-000 |
— | ||
|
2
|
2
38860-72G00-000 RELAY ASSYRelay, air con |
38860-72G00-000 |
US $45.60 |
||
|
3
|
3
38860-72G00-000 RELAY ASSYRelay, air con |
38860-72G00-000 |
US $45.60 |
||
|
4
|
4
95981-73A00-000 BRACKET,FUSE |
95981-73A00-000 |
US $6.15 |
||
|
5
|
5
34850-50A00-000 GAUGE ASSY,WATER TEMPGauge assy, water temperature |
34850-50A00-000 |
from US $40.80 |
||
|
6
|
6
95585-60A00-000 FUSIBLE LINK,A/C |
95585-60A00-000 |
US $18.95 |
||
|
7
|
7
95581-60A10-000
ハーネス,インナ
|
95581-60A10-000 |
— | ||
|
8
|
8
95571-86400-000 SWITCH,AIR CON |
95571-86400-000 |
US $50.42 |
||
|
9
|
9
95575-60A01-000
アンプリファイアアッシ,エアコンディショナ
|
95575-60A01-000 |
— | ||
| replacement | |||||
|
9
|
9
95575-60A11-000
CONTROLLER,A/C
|
95575-60A11-000 |
— | ||
|
10
|
10
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap |
09407-14403-000 |
from US $2.08 |
||
|
11
|
11
95584-67A00-000
ハーネス,エンジンルーム
3DR |
95584-67A00-000 |
— | ||
| replacement | |||||
|
11
|
11
95584-67A01-000
ハーネス,エンジンルーム
3DR |
95584-67A01-000 |
— | ||
|
11
|
11
95584-58B00-000
ハーネス,エンジンルーム
5DR |
95584-58B00-000 |
— | ||
| replacement | |||||
|
11
|
11
95584-58B01-000
ハーネス,エンジンルーム
5DR |
95584-58B01-000 |
— | ||
