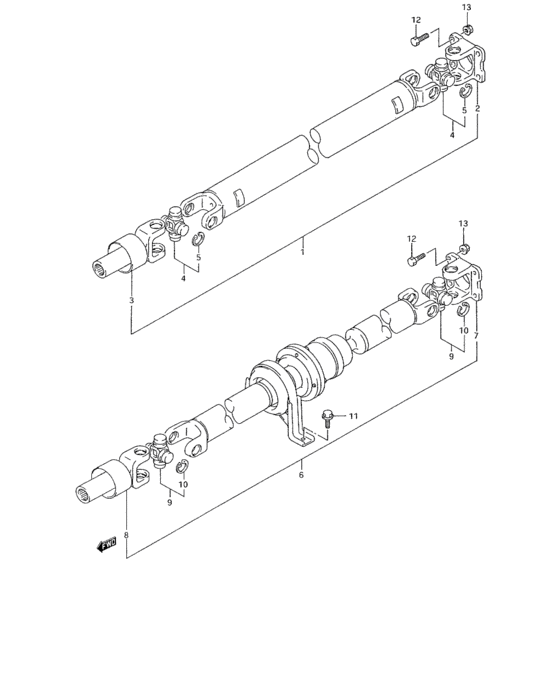

A propeller shaft (2WD) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- U.S.A.
- drive
- 2WD
- transmission
- AT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27100-61A52-000
SHAFT ASSY,PROPELLER REAR
2DR:AT |
27100-61A52-000 |
— | ||
|
2
|
2
27131-56B00-000 YOKE,CROSS JOINT FLANGE2DR |
27131-56B00-000 |
US $55.94 |
||
|
3
|
3
27140-60A51-000
YOKE,SLIDING
2DR |
27140-60A51-000 |
— | ||
|
4
|
4
27200-83812-000
JOINT SET,UNIVERSAL
2DR |
27200-83812-000 |
— | ||
| replacement | |||||
|
4
|
4
27200-83813-000 Joint Set,universal2DR |
27200-83813-000 |
from US $53.48 |
||
|
5
|
5
51118-36213-000 RING,SNAP2DR |
51118-36213-000 |
from US $2.24 |
||
|
6
|
6
27102-57B20-000
SHAFT ASSY,PROPELLER REAR
4DR:AT:96 MODEL,97 MODEL |
27102-57B20-000 |
— | ||
|
6
|
6
27100-58B60-000
SHAFT ASSY,PROPELLER
4DR:AT:98 MODEL |
27100-58B60-000 |
— | ||
|
7
|
7
27131-56B00-000 YOKE,CROSS JOINT FLANGE4DR |
27131-56B00-000 |
US $55.94 |
||
|
8
|
8
27140-60A30-000 YOKE,SLIDING4DR:AT |
27140-60A30-000 |
US $147.57 |
||
|
9
|
9
27200-83812-000
JOINT SET,UNIVERSAL
4DR |
27200-83812-000 |
— | ||
| replacement | |||||
|
9
|
9
27200-83813-000 Joint Set,universal4DR |
27200-83813-000 |
from US $53.48 |
||
|
10
|
10
51118-36213-000 RING,SNAP4DR |
51118-36213-000 |
from US $2.24 |
||
|
11
|
11
01580-10203-000
ボルト
4DR |
01580-10203-000 |
— | ||
| replacement | |||||
|
11
|
11
01580-1020A-000 Bolt4DR |
01580-1020A-000 |
US $19.50 |
||
|
12
|
12
01500-10303-000
Bolt
|
01500-10303-000 |
— | ||
| replacement | |||||
|
12
|
12
01500-1030A-000 BOLT |
01500-1030A-000 |
from US $0.96 |
||
|
13
|
13
09159-10091-000 NUT |
09159-10091-000 |
US $2.88 |
||
