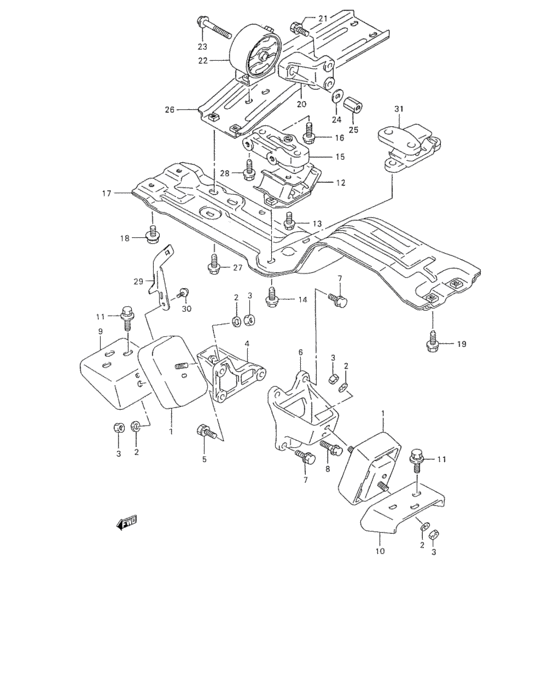

Engine mounting (S:V:AT:PRODUCT OF JAPAN; SE416) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- U.S.A.
- drive
- 2WD
- transmission
- AT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11610-58B10-000 MOUNTING,ENG FR->11610-58B01 |
11610-58B10-000 |
US $179.20 |
||
|
2
|
2
08321-01103-000
Washer
|
08321-01103-000 |
— | ||
| replacements | |||||
|
2
|
2
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.80 |
||
|
2
|
2
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.80 |
||
|
3
|
3
08310-00103-000
Nut
|
08310-00103-000 |
— | ||
| replacements | |||||
|
3
|
3
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.80 |
||
|
3
|
3
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
|
4
|
4
11641-56B02-000 BRACKET,ENG FR MTG,R |
11641-56B02-000 |
US $70.29 |
||
|
5
|
5
01570-10303-000
Bolt
|
01570-10303-000 |
— | ||
| replacement | |||||
|
5
|
5
01570-1030A-000 Bolt |
01570-1030A-000 |
from US $1.12 |
||
|
6
|
6
11651-57B00-000 BRACKET,ENG FR MTG,L |
11651-57B00-000 |
US $74.34 |
||
|
7
|
7
01570-10303-000
Bolt
|
01570-10303-000 |
— | ||
| replacement | |||||
|
7
|
7
01570-1030A-000 Bolt |
01570-1030A-000 |
from US $1.12 |
||
|
8
|
8
01570-10403-000
Bolt, upper
|
01570-10403-000 |
— | ||
| replacement | |||||
|
8
|
8
01570-1040A-000 Bolt |
01570-1040A-000 |
US $1.06 |
||
|
9
|
9
11661-56B00-000 BRACKET,ENG FR MTG FRAME SIDE |
11661-56B00-000 |
US $17.22 |
||
|
10
|
10
11661-57B00-000 BRACKET,ENG FR MTG FRAME SIDE |
11661-57B00-000 |
US $18.77 |
||
|
11
|
11
09118-10070-000
Bolt,10x30
|
09118-10070-000 |
— | ||
| replacement | |||||
|
11
|
11
09118-10070-XC0 BOLT(10X30) |
09118-10070-XC0 |
US $23.60 |
||
|
12
|
12
11710-60A01-000 MOUNTING,ENG RR~JS3TD03V T4100155,JS3TD03V T4100177~,~JS3TD03V V4100225 |
11710-60A01-000 |
US $217.60 |
||
|
13
|
13
01560-10203-000
Bolt
~JS3TD03V T4100155,JS3TD03V T4100177~ |
01560-10203-000 |
— | ||
|
14
|
14
01560-10163-000
ボルト
|
01560-10163-000 |
— | ||
| replacement | |||||
|
14
|
14
01560-1016A-000 Bolt |
01560-1016A-000 |
US $0.96 |
||
|
15
|
15
11741-57B02-000
BRACKET,ENG RR MTG
~JS3TD03V T4100155,JS3TD03V T4100177~ |
11741-57B02-000 |
— | ||
|
16
|
16
01560-10403-000 Bolt |
01560-10403-000 |
US $19.50 |
||
|
16
|
16
01560-10303-000
ボルト
JS3TD03V T4100156~ |
01560-10303-000 |
— | ||
| replacement | |||||
|
16
|
16
01560-1030A-000 BoltJS3TD03V T4100156~ |
01560-1030A-000 |
US $1.12 |
||
|
17
|
17
11730-58B23-000 MEMBER,ENG RR MTG |
11730-58B23-000 |
US $252.80 |
||
|
18
|
18
01580-10253-000
ボルト
|
01580-10253-000 |
— | ||
| replacement | |||||
|
18
|
18
01580-1025A-000 Bolt |
01580-1025A-000 |
US $19.50 |
||
|
19
|
19
01580-10253-000
ボルト
|
01580-10253-000 |
— | ||
| replacement | |||||
|
19
|
19
01580-1025A-000 Bolt |
01580-1025A-000 |
US $19.50 |
||
|
20
|
20
11755-57B01-000
BRACKET,TORQUE STOPPER
|
11755-57B01-000 |
— | ||
|
21
|
21
01560-10303-000
ボルト
|
01560-10303-000 |
— | ||
| replacement | |||||
|
21
|
21
01560-1030A-000 Bolt |
01560-1030A-000 |
US $1.12 |
||
|
22
|
22
11910-57B01-000 BUSH,TORQUE STOPPER |
11910-57B01-000 |
from US $68.63 |
||
|
23
|
23
01560-10803-000
Bolt
|
01560-10803-000 |
— | ||
| replacement | |||||
|
23
|
23
01560-1080A-000 Bolt |
01560-1080A-000 |
US $21.70 |
||
|
24
|
24
09160-10119-000 WASHER(10.5X22X1.6)Washer, wheel set |
09160-10119-000 |
from US $0.96 |
||
| replacement | |||||
|
24
|
24
09160-10143-000 WASHER(10.5X22X1.6) |
09160-10143-000 |
from US $0.91 |
||
|
25
|
25
09140-10040-000 NUT |
09140-10040-000 |
US $32.40 |
||
|
26
|
26
11761-57B00-000
MEMBER,TORQUE STOPPER
|
11761-57B00-000 |
— | ||
|
27
|
27
01580-10253-000
ボルト
|
01580-10253-000 |
— | ||
| replacement | |||||
|
27
|
27
01580-1025A-000 Bolt |
01580-1025A-000 |
US $19.50 |
||
|
28
|
28
01560-10163-000
ボルト
|
01560-10163-000 |
— | ||
| replacement | |||||
|
28
|
28
01560-1016A-000 Bolt |
01560-1016A-000 |
US $0.96 |
||
|
29
|
29
18568-56B01-000 BRACKET,CANISTER HOSE CLAMP |
18568-56B01-000 |
US $4.60 |
||
|
30
|
30
02162-06123-000
Bolt (6x12)
96 MODEL,97 MODEL |
02162-06123-000 |
— | ||
| replacements | |||||
|
30
|
30
02162-0612B-000 SCREWBolt 96 MODEL,97 MODEL |
02162-0612B-000 |
from US $0.80 |
||
|
30
|
30
02162-0612A-000 SCREWBolt, bracket 96 MODEL,97 MODEL |
02162-0612A-000 |
from US $0.80 |
||
|
30
|
30
02162-06103-000
Bolt
98 MODEL |
02162-06103-000 |
— | ||
| replacement | |||||
|
30
|
30
02162-0610A-000 SCREW98 MODEL |
02162-0610A-000 |
from US $0.64 |
||
|
31
|
31
11710-77E10-000
マウンチング,エンジン,リヤ
JS3TD03V T4100156~,~JS3TD03V T4100176,->11710-60A01,USED WITH 11741-57B02,,01560-10203,AND 01560-10403,(2PCS) |
11710-77E10-000 |
— | ||
| replacements | |||||
|
31
|
31
11710-60A01-000 MOUNTING,ENG RRJS3TD03V T4100156~,~JS3TD03V T4100176,->11710-60A01,USED WITH 11741-57B02,,01560-10203,AND 01560-10403,(2PCS) |
11710-60A01-000 |
US $217.60 |
||
|
31
|
31
01560-1020A-000 BoltJS3TD03V T4100156~,~JS3TD03V T4100176,->11710-60A01,USED WITH 11741-57B02,,01560-10203,AND 01560-10403,(2PCS) |
01560-1020A-000 |
US $17.30 |
||
|
31
|
31
01560-10403-000 BoltJS3TD03V T4100156~,~JS3TD03V T4100176,->11710-60A01,USED WITH 11741-57B02,,01560-10203,AND 01560-10403,(2PCS) |
01560-10403-000 |
US $19.50 |
||
|
31
|
31
11741-57B02-000
BRACKET,ENG RR MTG
JS3TD03V T4100156~,~JS3TD03V T4100176,->11710-60A01,USED WITH 11741-57B02,,01560-10203,AND 01560-10403,(2PCS) |
11741-57B02-000 |
— | ||
|
31
|
31
01560-10203-000
Bolt
JS3TD03V T4100156~,~JS3TD03V T4100176,->11710-60A01,USED WITH 11741-57B02,,01560-10203,AND 01560-10403,(2PCS) |
01560-10203-000 |
— | ||
|
31
|
31
11710-77E11-000 MOUNTING,ENG RRJS3TD03V V4100226~ |
11710-77E11-000 |
from US $100.76 |
||
