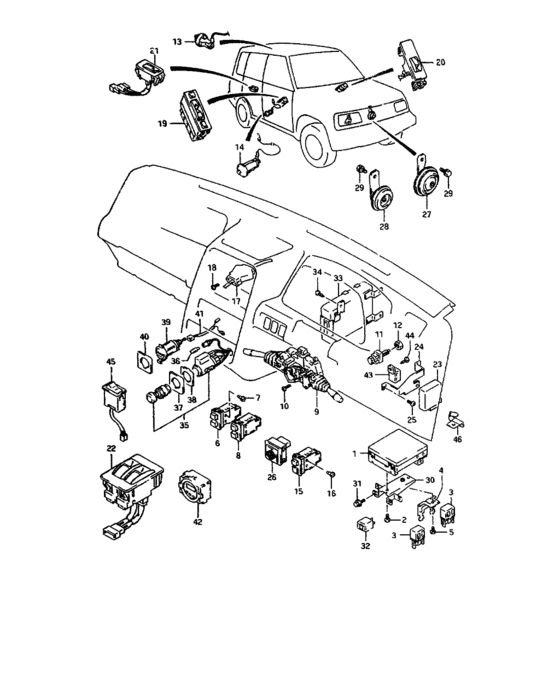

Electrical control (4DR) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- transmission
- 4AT
- grade
- 70 ANNIVERSARY
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33920-57B40-000
Controller, fuel injection
TYPE 1,TYPE 2 |
33920-57B40-000 |
— | ||
|
2
|
2
02142-06123-000
Screw
|
02142-06123-000 |
— | ||
| replacements | |||||
|
2
|
2
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
||
|
2
|
2
02142-0612A-000 SCREW |
02142-0612A-000 |
from US $0.80 |
||
|
3
|
3
38850-50F50-000 RELAY ASSY,MAIN/FUEL PUMP<-31850-80C10 |
38850-50F50-000 |
US $98.80 |
||
|
4
|
4
33795-56B12-000
BRACKET,RELAY
|
33795-56B12-000 |
— | ||
|
5
|
5
02142-06123-000
Screw
|
02142-06123-000 |
— | ||
| replacements | |||||
|
5
|
5
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
||
|
5
|
5
02142-0612A-000 SCREW |
02142-0612A-000 |
from US $0.80 |
||
|
6
|
6
37370-86D00-000
Switch, rear wiper/washer
|
37370-86D00-000 |
— | ||
|
7
|
7
09471-12135-000 BULB(CLEAR) |
09471-12135-000 |
US $57 |
||
|
8
|
8
37280-86000-000
SWITCH ASSY,RR FOG LAMP
|
37280-86000-000 |
— | ||
|
9
|
9
37400-60A21-000
SWITCH ASSY,COMB
|
37400-60A21-000 |
— | ||
|
10
|
10
02112-05123-000
Screw 5x12
|
02112-05123-000 |
— | ||
| replacement | |||||
|
10
|
10
02112-0512A-000 SCREW |
02112-0512A-000 |
from US $0.80 |
||
|
12
|
12
09140-10043-000 NUTNut, tie rod rh thread |
09140-10043-000 |
from US $0.91 |
||
|
13
|
13
37670-60A02-000 SWITCH ASSY,DOOR |
37670-60A02-000 |
US $29.60 |
||
|
14
|
14
37670-60A02-000 SWITCH ASSY,DOOR |
37670-60A02-000 |
US $29.60 |
||
|
15
|
15
37860-60A00-000 SWITCH ASSY,RR DEFOGGER |
37860-60A00-000 |
from US $28.84 |
||
|
16
|
16
09471-12135-000 BULB(CLEAR) |
09471-12135-000 |
US $57 |
||
|
17
|
17
37670-60A01-000
スイッチアッシ,ドア
|
37670-60A01-000 |
— | ||
| replacement | |||||
|
17
|
17
37670-60A02-000 SWITCH ASSY,DOOR |
37670-60A02-000 |
US $29.60 |
||
|
18
|
18
03112-04083-000
Screw
|
03112-04083-000 |
— | ||
| replacement | |||||
|
18
|
18
03112-0408B-000 SCREW |
03112-0408B-000 |
US $0.88 |
||
|
19
|
19
37990-56B50-000
スイッチアッシ,パワーウィンド,マスタ
JLX |
37990-56B50-000 |
— | ||
| replacement | |||||
|
19
|
19
37990-56B51-H2H
SWITCH ASSY,P/W MASTER
JLX |
37990-56B51-H2H |
— | ||
|
20
|
20
37995-56B60-000
スイッチアッシ,パワーウィンド,アシスタント
JLX |
37995-56B60-000 |
— | ||
| replacement | |||||
|
20
|
20
37995-56B60-H2H
SWITCH ASSY,P/W SUB
JLX |
37995-56B60-H2H |
— | ||
|
21
|
21
37995-56B50-000
スイッチアッシ,パワーウィンド,サブ
JLX |
37995-56B50-000 |
— | ||
| replacement | |||||
|
21
|
21
37995-56B50-H2H
SWITCH ASSY,P/W SUB
JLX |
37995-56B50-H2H |
— | ||
|
22
|
22
37993-56B50-000
スイッチアッシ,パワーウィンド,センタ
JLX |
37993-56B50-000 |
— | ||
| replacement | |||||
|
22
|
22
37993-56B50-H2H
SWITCH ASSY,P/W CTR
JLX |
37993-56B50-H2H |
— | ||
|
23
|
23
38700-56B00-000 CONTROLLER ASSY,PWR DR LOCKJLX |
38700-56B00-000 |
US $183.63 |
||
|
24
|
24
38663-56B10-000 BRACKET,DR LOCK CONT,RJLX |
38663-56B10-000 |
US $3.46 |
||
|
25
|
25
02142-06123-000
Screw
JLX |
02142-06123-000 |
— | ||
| replacements | |||||
|
25
|
25
02142-0612B-000 SCREWJLX |
02142-0612B-000 |
from US $0.76 |
||
|
25
|
25
02142-0612A-000 SCREWJLX |
02142-0612A-000 |
from US $0.80 |
||
|
26
|
26
37950-60A00-000
SWITCH ASSY,MIRROR
W/REMO-CON MIRROR |
37950-60A00-000 |
— | ||
|
27
|
27
38500-86100-000
ホーンアッシ
JX, JLX |
38500-86100-000 |
— | ||
| replacement | |||||
|
27
|
27
38500-70E00-000 HORN ASSY,LOW PITCHEDJX, JLX |
38500-70E00-000 |
US $74.40 |
||
|
28
|
28
38500-60A10-000
Horn assy, high pitched
JLX |
38500-60A10-000 |
— | ||
| replacement | |||||
|
28
|
28
38500-70E10-000 HORN ASSY,HIGH PITCHEDJLX |
38500-70E10-000 |
US $71.39 |
||
|
28
|
28
38500-60A00-000
ホーンアッシ
JLX,JSAETD01V00101202~ |
38500-60A00-000 |
— | ||
| replacement | |||||
|
28
|
28
38500-60A01-000 HORN ASSYJLX,JSAETD01V00101202~ |
38500-60A01-000 |
US $100 |
||
|
29
|
29
01570-08123-000
Bolt
JX |
01570-08123-000 |
— | ||
| replacement | |||||
|
29
|
29
01570-0812A-000 BoltJX |
01570-0812A-000 |
US $14.40 |
||
|
30
|
30
38665-60A00-000
BRACKET,RLY&ECU
|
38665-60A00-000 |
— | ||
|
31
|
31
09128-06043-000
Screw
|
09128-06043-000 |
— | ||
| replacement | |||||
|
31
|
31
09128-06058-000 SCREW(6X10) |
09128-06058-000 |
from US $1.28 |
||
|
32
|
32
38610-84001-000
リレー,ターンシグナル/4ウェイ
|
38610-84001-000 |
— | ||
| replacement | |||||
|
32
|
32
38610-76G00-000 RELAY,TURN SIGNAL&4WAYRelay, turnsignal & 4 way |
38610-76G00-000 |
US $56.80 |
||
|
35
|
35
39400-86820-000
ライタアッシ,シガレット
|
39400-86820-000 |
— | ||
| replacement | |||||
|
35
|
35
39400-86821-000 LIGHTER ASSY,CIGARETTE |
39400-86821-000 |
US $27.20 |
||
|
36
|
36
09471-12055-000 BULB(14V1.4W,T5) |
09471-12055-000 |
from US $2.40 |
||
|
37
|
37
39471-60A00-000 RIM,CIGARETTE |
39471-60A00-000 |
US $4.23 |
||
|
38
|
38
39472-82000-000 WASHER,CIGARETTE LIGHTER |
39472-82000-000 |
US $1.25 |
||
|
39
|
39
39410-60A00-000
ソケットアッシ
TYPE 1,TYPE 2 |
39410-60A00-000 |
— | ||
| replacement | |||||
|
39
|
39
39410-60A01-000 SOCKET ASSYTYPE 1,TYPE 2 |
39410-60A01-000 |
US $33.60 |
||
|
40
|
40
39417-60A00-000 RETAINER,ACCESSORY SOCKETTYPE 1,TYPE 2 |
39417-60A00-000 |
US $4.05 |
||
|
41
|
41
36883-60A00-000
WIRE,SOCKET
TYPE 1,TYPE 2 |
36883-60A00-000 |
— | ||
|
42
|
42
34600-60A00-000
CLOCK ASSY
|
34600-60A00-000 |
— | ||
|
44
|
44
03541-05163-000
Screw
|
03541-05163-000 |
— | ||
| replacement | |||||
|
44
|
44
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.76 |
||
|
46
|
46
36998-60A00-000
クランプ,ワイヤ
|
36998-60A00-000 |
— | ||
