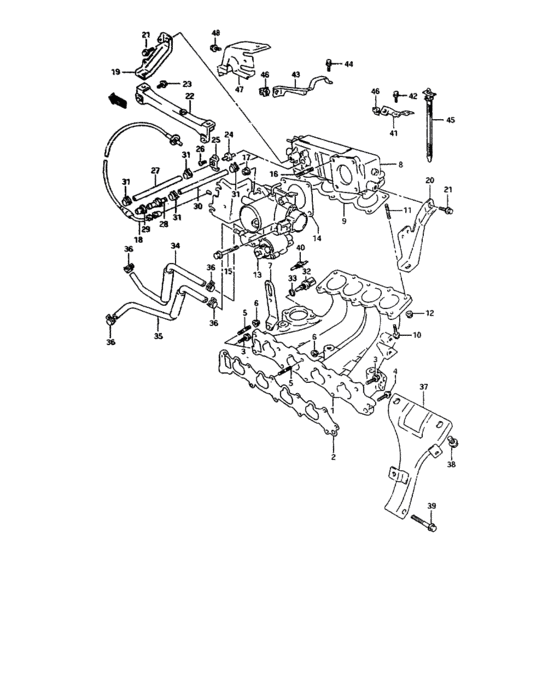

Intake manifold and throttle body (TYPE 2:4 VALVE) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- transmission
- AT
- grade
- 70 ANNIVERSARY
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13110-57B00-000
マニホールド,インテーク
|
13110-57B00-000 |
— | ||
|
1
|
1
13110-57B01-000
マニホールド,インテーク
JSAETD01V00108243~ |
13110-57B01-000 |
— | ||
|
2
|
2
13119-57B00-000 GASKET,INTK MANFGasket, intake manifold |
13119-57B00-000 |
US $15.52 |
||
|
3
|
3
01550-08253-000
Bolt, rear
|
01550-08253-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0825B-000 BOLT |
01550-0825B-000 |
from US $0.96 |
||
|
3
|
3
01550-0825A-000 BOLT |
01550-0825A-000 |
from US $1.06 |
||
|
4
|
4
01517-08256-000
Bolt
|
01517-08256-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0825B-000 BOLT |
01550-0825B-000 |
from US $0.96 |
||
|
4
|
4
01550-0825A-000 BOLT |
01550-0825A-000 |
from US $1.06 |
||
|
5
|
5
01421-08253-000
Stud bolt, no.2
|
01421-08253-000 |
— | ||
| replacement | |||||
|
5
|
5
01421-0825A-000 BOLT,STUD |
01421-0825A-000 |
from US $1.12 |
||
|
6
|
6
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
6
|
6
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
7
|
7
11851-62B00-000 HOOK |
11851-62B00-000 |
US $5.02 |
||
|
7
|
7
11852-57B01-000 HOOK,ENGINEJSAETD01V00105094~ |
11852-57B01-000 |
US $12.14 |
||
|
8
|
8
13140-57B00-000
Tank,surge intake
|
13140-57B00-000 |
— | ||
|
8
|
8
13140-57B01-000
タンク,サージインテーク
JSAETD01V00110083~ |
13140-57B01-000 |
— | ||
|
9
|
9
13122-57B00-000 GASKET,SURGE TANK |
13122-57B00-000 |
US $7.51 |
||
|
10
|
10
01550-08253-000
Bolt, rear
|
01550-08253-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0825B-000 BOLT |
01550-0825B-000 |
from US $0.96 |
||
|
10
|
10
01550-0825A-000 BOLT |
01550-0825A-000 |
from US $1.06 |
||
|
11
|
11
01421-08253-000
Stud bolt, no.2
|
01421-08253-000 |
— | ||
| replacement | |||||
|
11
|
11
01421-0825A-000 BOLT,STUD |
01421-0825A-000 |
from US $1.12 |
||
|
12
|
12
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
12
|
12
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
13
|
13
13400-57B10-000
Body assy,throttle
AT |
13400-57B10-000 |
— | ||
|
14
|
14
13421-57B00-000
GASKET,THROTTLE BODY
|
13421-57B00-000 |
— | ||
|
15
|
15
01550-08553-000
Bolt
|
01550-08553-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0855B-000 Bolt |
01550-0855B-000 |
from US $5.58 |
||
|
15
|
15
01550-0855A-000 BOLTBolt, gear holder |
01550-0855A-000 |
from US $1.22 |
||
|
16
|
16
01421-08403-000
Stud bolt (l:40)
|
01421-08403-000 |
— | ||
| replacement | |||||
|
16
|
16
01421-0840A-000 BOLT,STUDStud bolt (8x40) |
01421-0840A-000 |
from US $4.13 |
||
|
17
|
17
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
17
|
17
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
18
|
18
15910-57B01-000
ケーブルアッシ,アクセル
|
15910-57B01-000 |
— | ||
| replacement | |||||
|
18
|
18
15910-57B0V-000
CABLE,ACCEL
|
15910-57B0V-000 |
— | ||
|
19
|
19
13626-57B00-000
スチフナ,インテークマニホールド,NO.1
|
13626-57B00-000 |
— | ||
|
20
|
20
13627-57B00-000
スチフナ,インテークマニホールド,NO.2
|
13627-57B00-000 |
— | ||
|
21
|
21
01550-10203-000
Bolt
|
01550-10203-000 |
— | ||
| replacement | |||||
|
21
|
21
01550-1020A-000 BOLTBolt, bal sprocket |
01550-1020A-000 |
from US $0.96 |
||
|
22
|
22
13625-57B00-000
ブラケット,スチフナ
|
13625-57B00-000 |
— | ||
|
23
|
23
01550-08303-000
Bolt
|
01550-08303-000 |
— | ||
| replacements | |||||
|
23
|
23
01550-0830B-000 Bolt |
01550-0830B-000 |
from US $1.06 |
||
|
23
|
23
01550-0830A-000 BOLTBolt, mount oil seal cover |
01550-0830A-000 |
from US $1.12 |
||
|
24
|
24
18118-53B00-000 VALVE,PCV~JSAETD01V00110082 |
18118-53B00-000 |
US $70.40 |
||
|
25
|
25
18128-71C00-000 BRACKET,PCV VALVE~JSAETD01V00110082 |
18128-71C00-000 |
US $2.43 |
||
|
26
|
26
02112-35103-000
Screw 5x10
~JSAETD01V00110082 |
02112-35103-000 |
— | ||
| replacement | |||||
|
26
|
26
02112-3510B-000 SCREW~JSAETD01V00110082 |
02112-3510B-000 |
from US $0.76 |
||
|
27
|
27
09354-70153-600 HOSE(7X15X600)L:600->150,~JSAETD01V00110082 |
09354-70153-600 |
US $16.80 |
||
|
28
|
28
18118-58B00-000 VALVE,PCVJSAETD01V00110083~ |
18118-58B00-000 |
US $26.40 |
||
|
29
|
29
11198-58B00-000 SEAL,PCV VALVESeal, pcv valve JSAETD01V00110083~ |
11198-58B00-000 |
US $5.20 |
||
| replacement | |||||
|
29
|
29
11198-98L00-000 Seal,pcv ValveJSAETD01V00110083~ |
11198-98L00-000 |
US $2.74 |
||
|
30
|
30
11193-58B00-000
ホース,PCV
JSAETD01V00110083~ |
11193-58B00-000 |
— | ||
| replacement | |||||
|
30
|
30
09354-80153-600 HOSE(8X15X600)JSAETD01V00110083~ |
09354-80153-600 |
US $28.80 |
||
|
31
|
31
09401-13406-000
Clamp
|
09401-13406-000 |
— | ||
| replacement | |||||
|
31
|
31
09401-13404-000
CLIP
|
09401-13404-000 |
— | ||
|
32
|
32
13650-61B00-000 SENSOR,TEMP |
13650-61B00-000 |
from US $46.40 |
||
|
33
|
33
09168-12016-000 GASKET(12.2X21X0.8) |
09168-12016-000 |
from US $1.12 |
||
|
34
|
34
13491-57B00-000 HOSE,WATER THROT BODY INLET |
13491-57B00-000 |
US $12.66 |
||
|
35
|
35
13492-57B01-000 HOSE,WATER THROTTLE BODY OTLT |
13492-57B01-000 |
US $13.47 |
||
|
36
|
36
09401-12404-000 CLIPClip |
09401-12404-000 |
from US $1.52 |
||
|
37
|
37
13620-57B01-000 STIFFENER,INTK MANF |
13620-57B01-000 |
US $40.48 |
||
|
38
|
38
01550-08303-000
Bolt
|
01550-08303-000 |
— | ||
| replacements | |||||
|
38
|
38
01550-0830B-000 Bolt |
01550-0830B-000 |
from US $1.06 |
||
|
38
|
38
01550-0830A-000 BOLTBolt, mount oil seal cover |
01550-0830A-000 |
from US $1.12 |
||
|
39
|
39
01550-10553-000
Bolt
|
01550-10553-000 |
— | ||
| replacement | |||||
|
39
|
39
01550-1055B-000 Bolt |
01550-1055B-000 |
from US $1.44 |
||
|
40
|
40
34850-50A00-000 GAUGE ASSY,WATER TEMPGauge assy, water temperature |
34850-50A00-000 |
from US $40.80 |
||
|
41
|
41
15918-57B00-000
BRACKET,ACCEL CABLE BATT SIDE
|
15918-57B00-000 |
— | ||
| replacement | |||||
|
41
|
41
09403-05311-000 CLAMP |
09403-05311-000 |
US $14.40 |
||
|
42
|
42
01550-06103-000
Bolt, front
|
01550-06103-000 |
— | ||
| replacements | |||||
|
42
|
42
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
42
|
42
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
43
|
43
15919-57B00-000
BRACKET,ACCEL CABLE CLAMP
|
15919-57B00-000 |
— | ||
|
44
|
44
01550-06163-000
Bolt
|
01550-06163-000 |
— | ||
| replacements | |||||
|
44
|
44
01550-0616B-000 BOLT |
01550-0616B-000 |
from US $0.76 |
||
|
44
|
44
01550-0616A-000 BOLT |
01550-0616A-000 |
from US $0.76 |
||
|
45
|
45
09407-14408-000 CLAMP(L:120) |
09407-14408-000 |
US $9.20 |
||
| replacement | |||||
|
45
|
45
09407-17402-000 CLAMP |
09407-17402-000 |
from US $1.98 |
||
|
46
|
46
09403-06318-000 CLAMP |
09403-06318-000 |
US $1.52 |
||
|
47
|
47
13471-57B10-000
カバー,スロットル
|
13471-57B10-000 |
— | ||
|
48
|
48
01550-06103-000
Bolt, front
|
01550-06103-000 |
— | ||
| replacements | |||||
|
48
|
48
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
48
|
48
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
