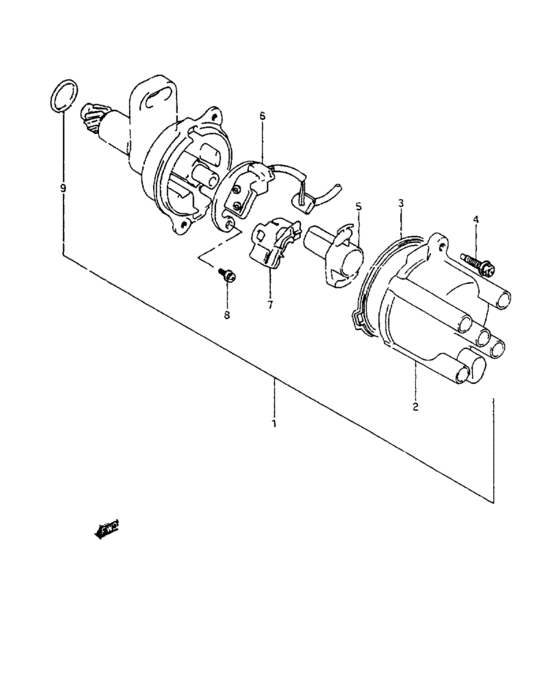

Distributor (W/FUEL INJECTION:TYPE 2) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- transmission
- 4AT
- grade
- JX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33100-57811-000
Distributor assy
|
33100-57811-000 |
— | ||
|
2
|
2
33321-63B10-000 CAP,DISTRIBUTOR |
33321-63B10-000 |
US $48 |
||
|
3
|
3
33324-86510-000 PACKING,CAP |
33324-86510-000 |
from US $2.08 |
||
|
4
|
4
01580-05203-000
ボルト
|
01580-05203-000 |
— | ||
| replacement | |||||
|
4
|
4
01580-0520B-000 BOLT |
01580-0520B-000 |
from US $1.24 |
||
|
5
|
5
33310-57B10-000
ROTOR ASSY
|
33310-57B10-000 |
— | ||
|
6
|
6
33140-57B10-000
GENERATOR ASSY,SIGNAL
|
33140-57B10-000 |
— | ||
|
7
|
7
33279-57B10-000
Cover, dust
|
33279-57B10-000 |
— | ||
|
8
|
8
02142-04103-000
Screw 4x10
|
02142-04103-000 |
— | ||
| replacement | |||||
|
8
|
8
02142-0410A-000 SCREW |
02142-0410A-000 |
from US $0.76 |
||
|
9
|
9
33278-85310-000 O-RING |
33278-85310-000 |
US $2.74 |
||
